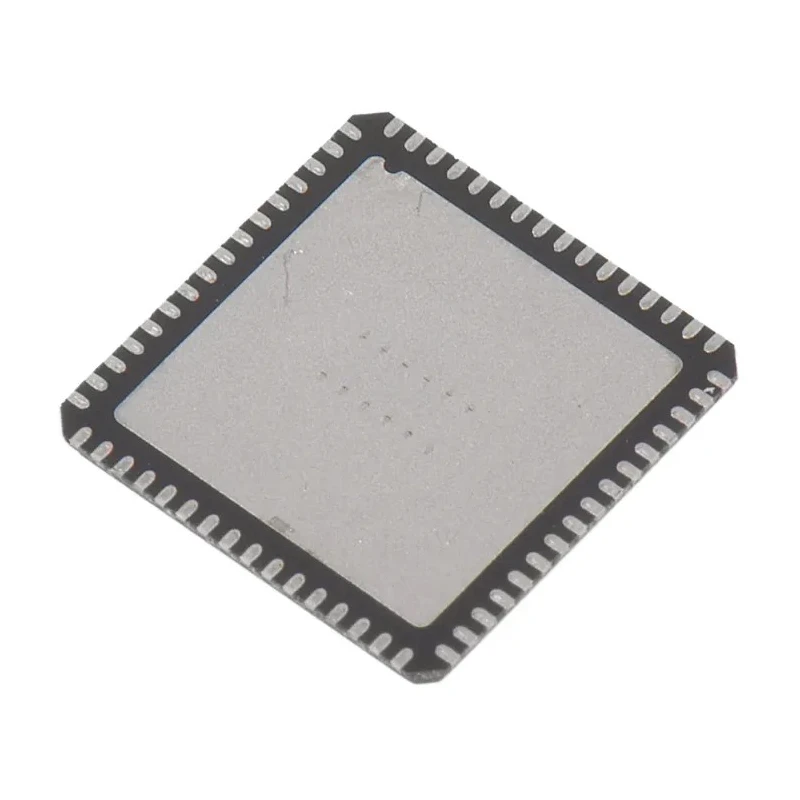

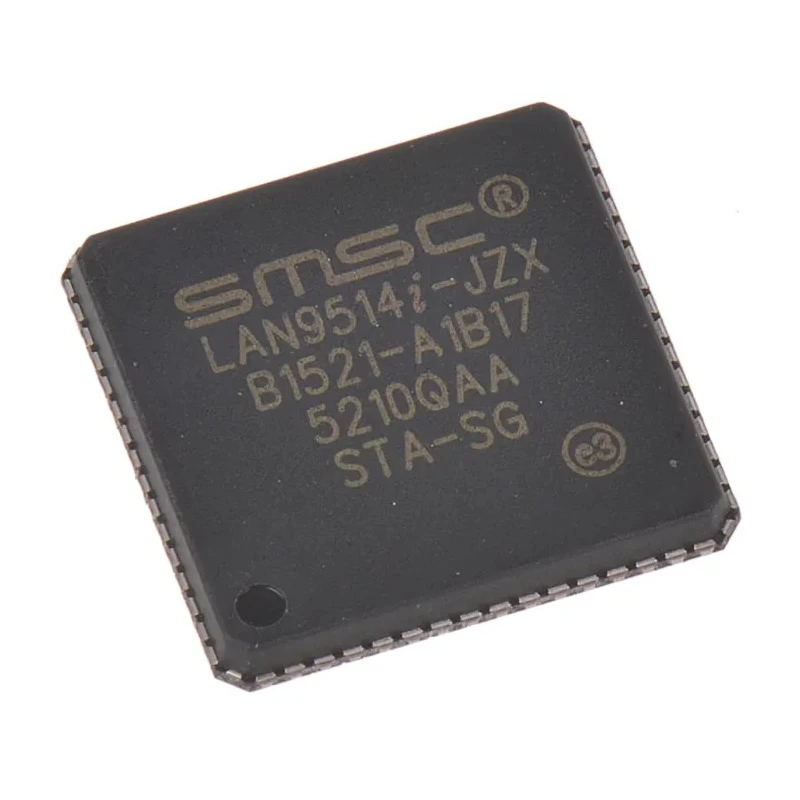

Microchip Ethernet Controller 64-Pin QFN 3.3 V 480 Mbps Full Duplex/Half Duplex LAN9514I-JZX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 9mm |
| Model | LAN9514I-JZX |
| Width | 9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Communication Mode | Full Duplex/Half Duplex |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 74mA |
| Maximum Data Rate | 480Mbps |
| Loopback Mode | Internal |
| Standard Supported | IEEE 802.3u, IEEE 802.3 |
Key Features
- Supports a maximum data rate of 480 Mbps for efficient network performance.
- Operates at a fixed supply voltage of 3.3 volts.
- Features a 64-pin QFN package with compact 9 mm x 9 mm x 1 mm dimensions.
- Designed for surface mount application with internal loopback mode.
- Functions in both full duplex and half duplex communication modes.
- Suitable for industrial temperature range from -40°C to 85°C.
- Supply current is approximately 74 mA, enabling low power consumption.
- Complies with Ethernet controller standards but has no specific automotive certifications.
Product Description
Microchip LAN9514I-JZX Ethernet Controller is a high-performance semiconductor device designed for Ethernet interface applications. It features a 64-pin QFN surface mount package with compact physical dimensions of 9 mm length, 9 mm width, and 1 mm height, suitable for space-constrained electronic designs.
This device supports IEEE 802.3u and IEEE 802.3 standards ensuring compatibility with established Ethernet protocols. It provides reliable full duplex and half duplex communication modes with an internal loopback mode for diagnostics and testing purposes.
Operating at a stable supply voltage of 3.3V, the controller delivers a maximum data transfer rate of 480 Mbps, ideal for fast network communications. The typical supply current is 74 mA, optimized for energy efficiency in embedded systems.
The LAN9514I-JZX is rated for operation within industrial temperature ranges from -40°C to 85°C, making it suitable for demanding industrial, networking, and embedded electronic applications.
The compact 64-pin QFN package facilitates straightforward surface mount installation techniques on printed circuit boards and supports modern electronic manufacturing processes. Supports high-speed data communications at 480 Mbps.
Compatible with IEEE 802.3u and IEEE 802.3 Ethernet standards. Full duplex and half duplex operation enhances flexible network integration. Internal loopback mode supports device diagnostics and testing. Industrial temperature range supports harsh environment operation.
Low supply current of 74 mA reduces power consumption in system designs. Compact 64-pin QFN package suitable for space-limited PCB layouts. Designed for surface mount PCB assembly processes.
This Ethernet controller is widely used in industrial automation, embedded systems, communication equipment, and networking hardware requiring reliable and high-speed Ethernet interface capability. Its robustness and compact form factor make it ideal for a broad range of industrial and electronic applications.
Explore similar Ethernet Interface Ics and semiconductor controllers available at EnvMart to find compatible devices tailored to your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LAN9514I-JZX supports a maximum data rate of 480 Mbps, enabling efficient network performance.
This model features a compact 64-pin QFN package with dimensions of 9 mm x 9 mm x 1 mm.
It operates at a fixed supply voltage of 3.3 volts.
The LAN9514I-JZX supports both full duplex and half duplex communication modes, providing flexibility for network integration.
This Ethernet controller is rated for an industrial temperature range from -40°C to 85°C, making it suitable for harsh environments.
The typical supply current is approximately 74 mA, which helps in reducing power consumption.
It complies with IEEE 802.3u and IEEE 802.3 Ethernet standards, ensuring compatibility with established protocols.
Yes, it features an internal loopback mode for diagnostics and testing purposes.
This model is designed for surface mount applications, facilitating straightforward installation on printed circuit boards.
This Ethernet controller has a pin count of 64, suitable for various electronic designs.
The country of origin for this model is India.
It is widely used in industrial automation, embedded systems, communication equipment, and networking hardware that require reliable Ethernet interface capabilities.
