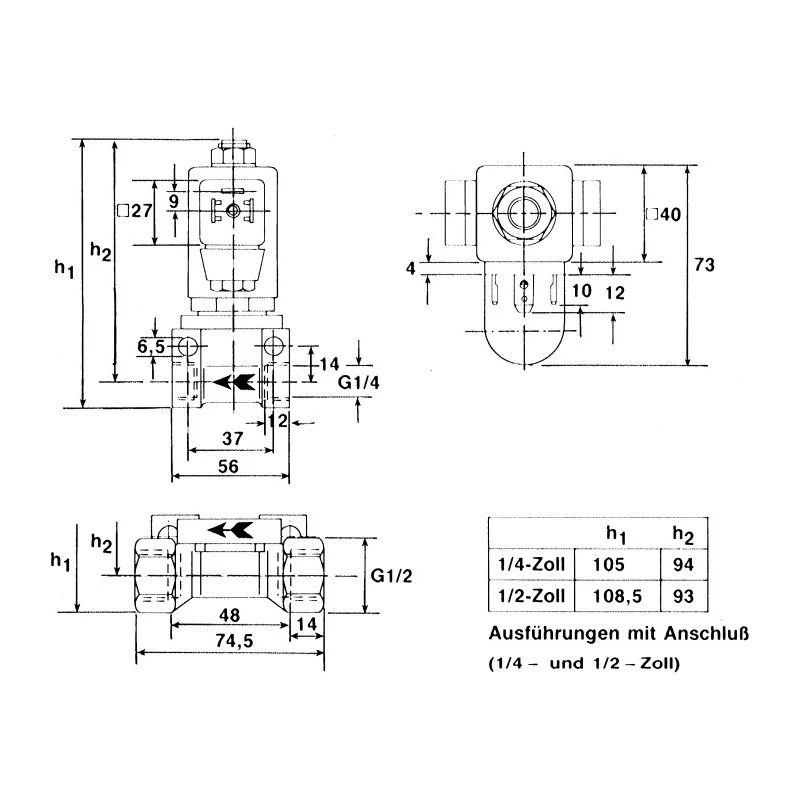

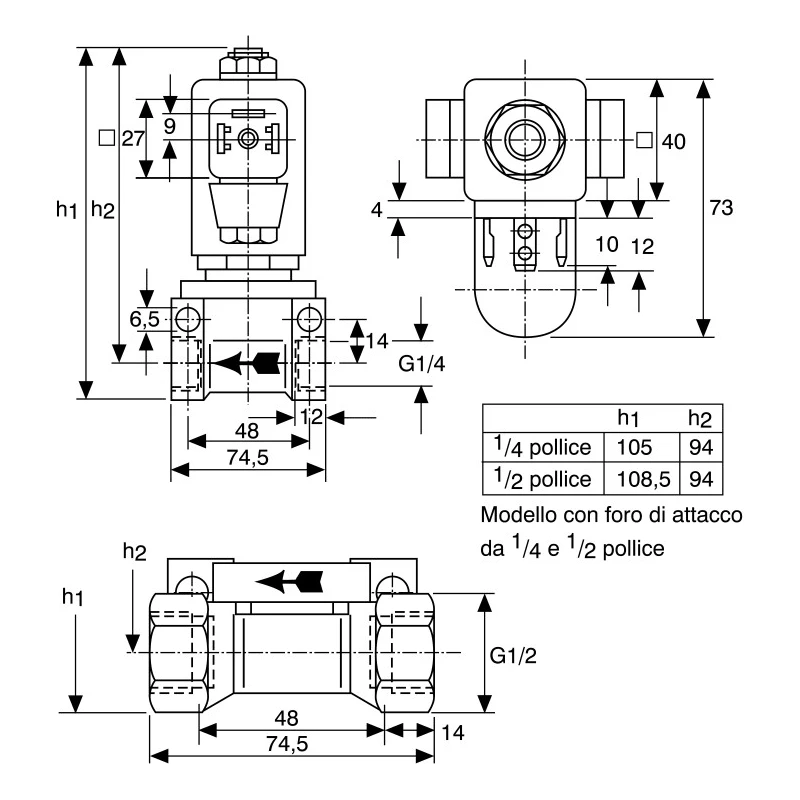

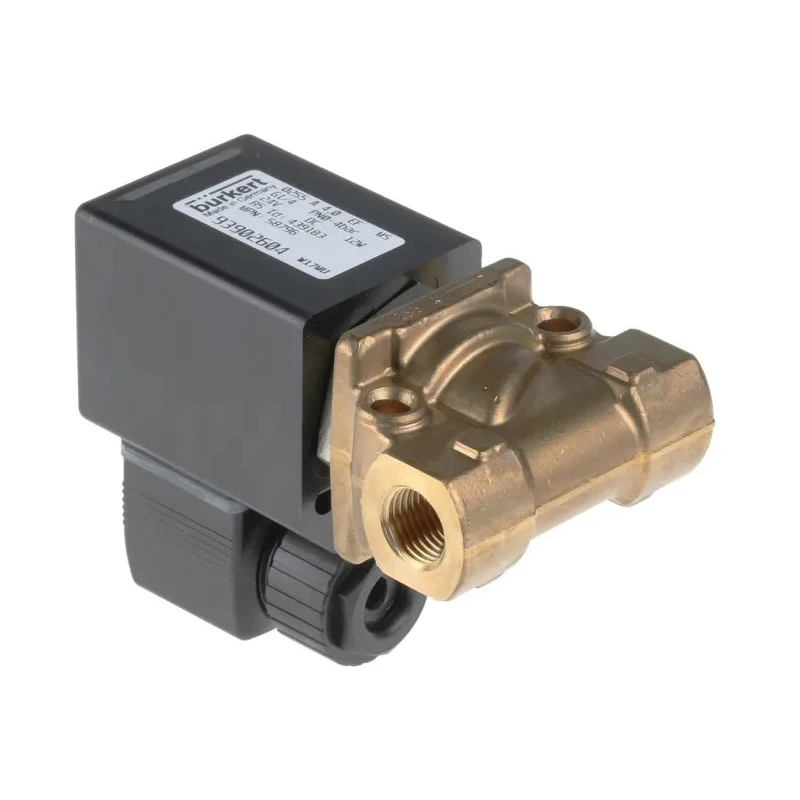

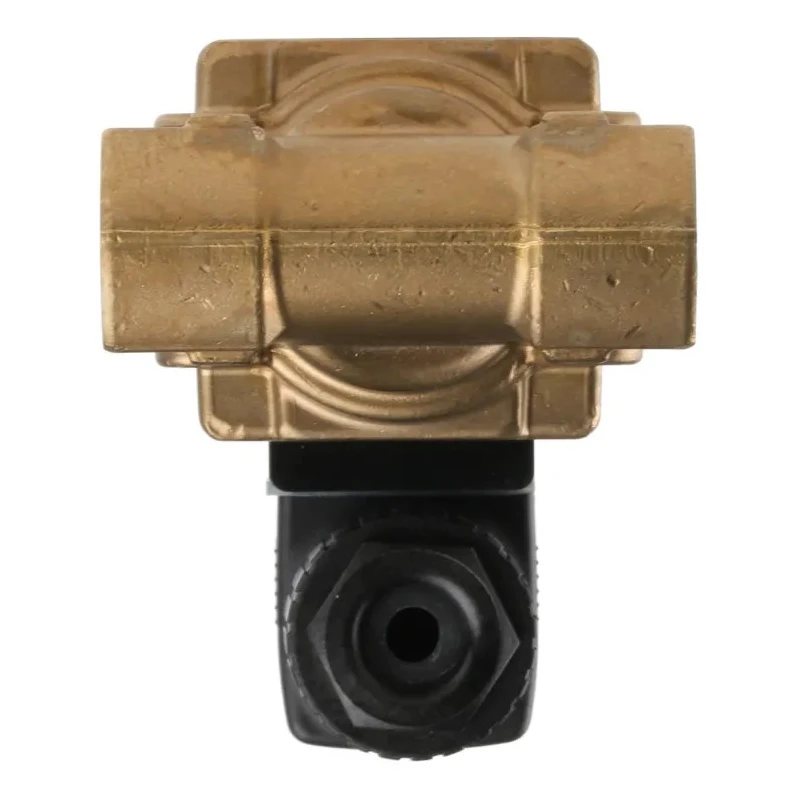

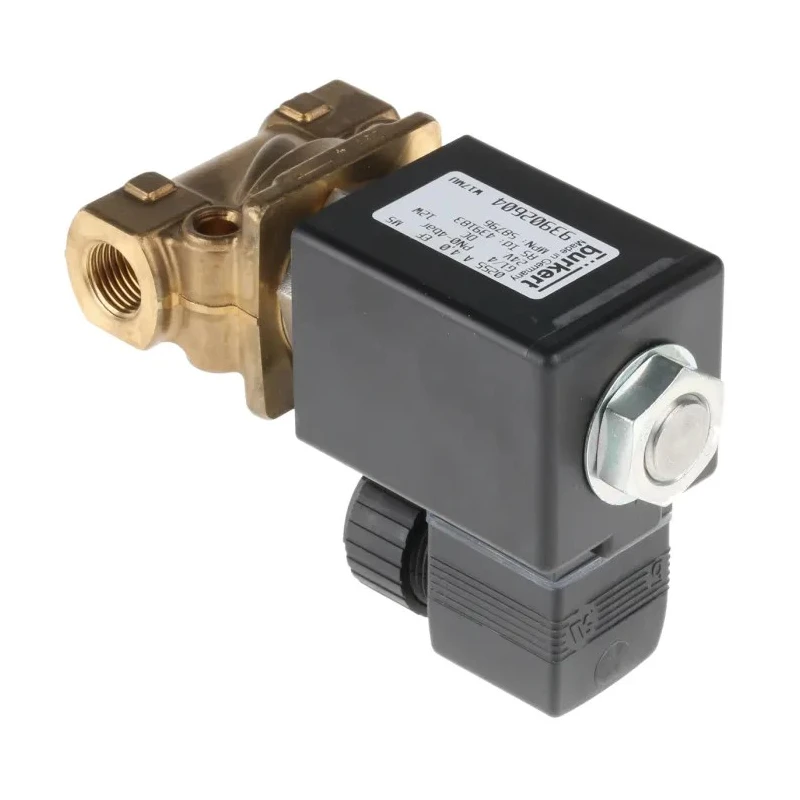

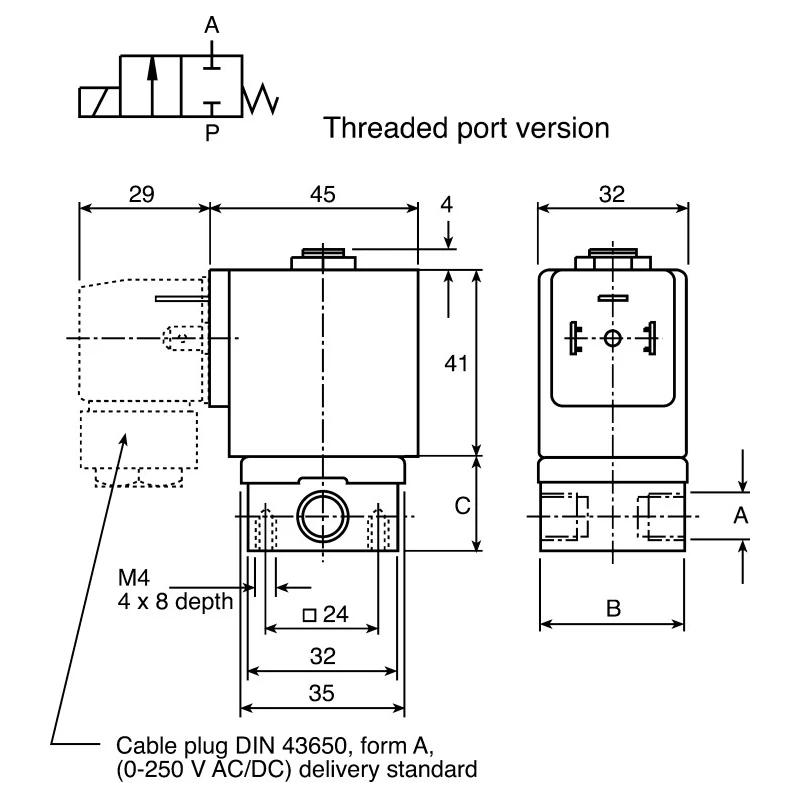

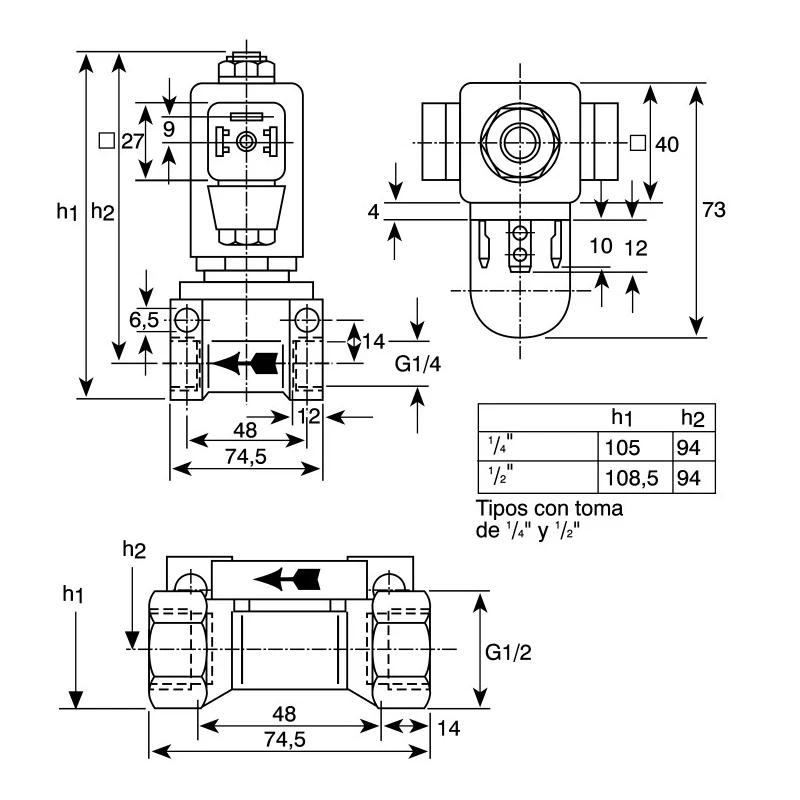

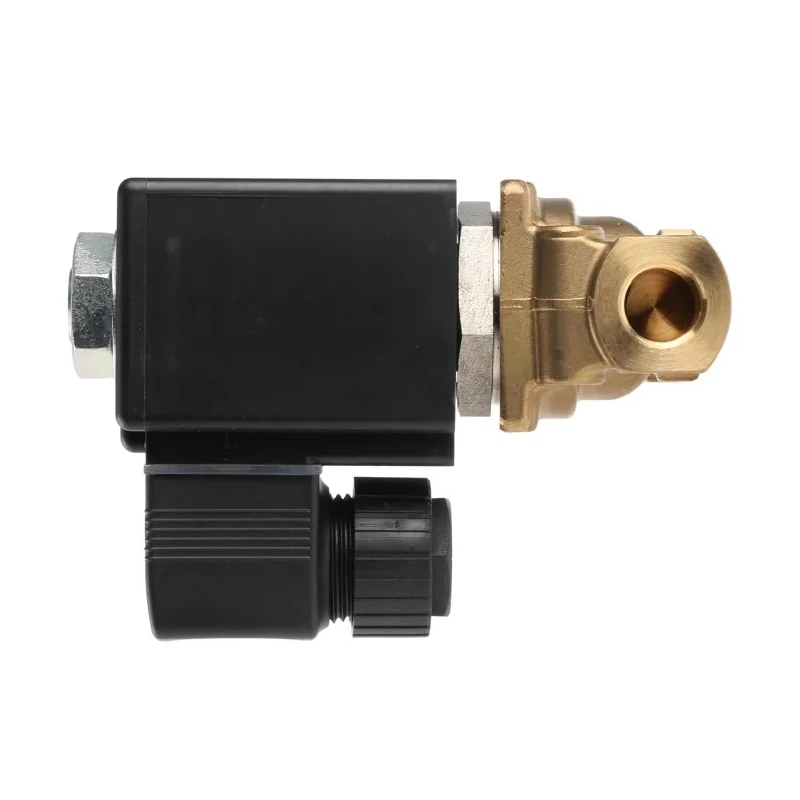

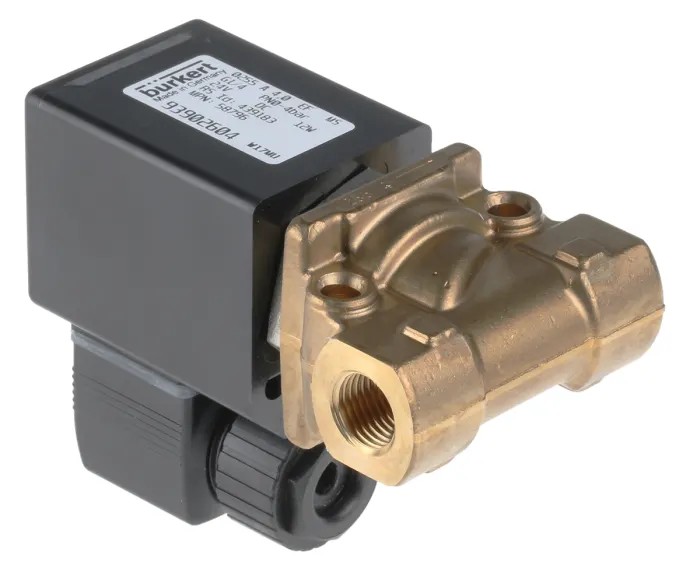

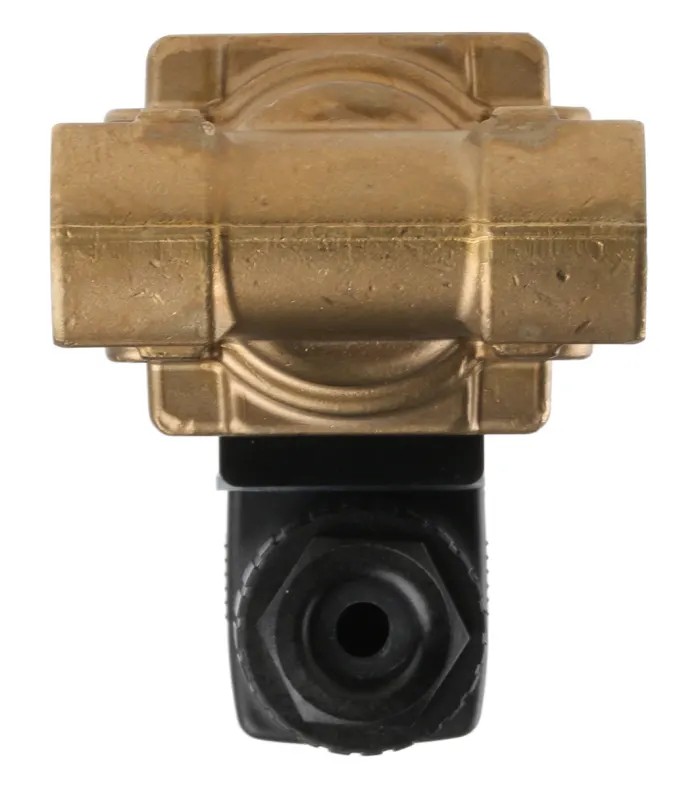

Burkert Solenoid Valve 2 Port NC Brass Body 24V DC 1/4 in G Threaded 4mm Orifice 058796
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 4 bar |
| Outlet Connection Type | Threaded |
| Model | 058796 |
| Series | 0255 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -40°C |
| Orifice Diameter | 4mm |
| Supply Voltage | 24V dc |
| Inlet Port Size | 1/4 in G |

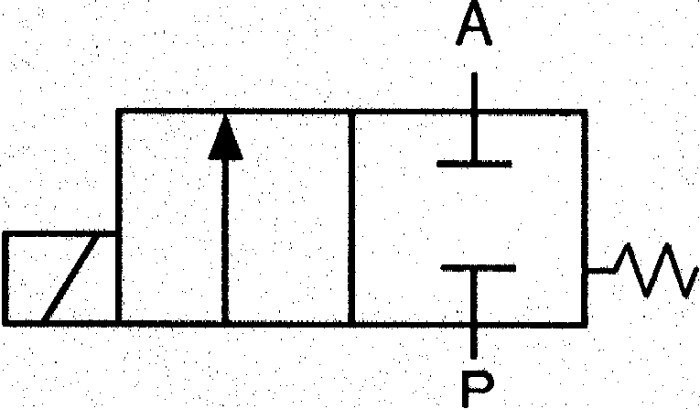

| Default Valve Position | NC |
| Inlet Thread Standard | G |
| Outlet Port Size | 6.35 mm |
| Inlet Port Gender | Female |
| Maximum Opening Time | 80ms |
| Flow Factor Kv | 0.5m³/h |
| Maximum Closing Time | 30ms |
| RS PRO Solenoid Valve, 2 Port, NC, 24V G1/4, G1/4RS Stock No. | 255-4157Brand: RS PRO |
| Burkert Solenoid Valve 125301, 2 Port, NC, 24V dc 6.35 mm, 6.35 mmBrand | Burkert |
| Burkert Solenoid Valve 089404, 2 Port, NC, 24V dc 1/2 in G, 12.7 mmBrand | Burkert |
Key Features
- Designed for use with gases, water, steam, air, hot oils, and hydrocarbons.
- Features a durable brass body and PTFE seal for high reliability.
- Operates within a temperature range of -40°C to 55°C.
- Maximum operating pressure is 4 bar with a flow factor Kv of 0.5 m³/h.
- Power consumption is 12W DC with fast response times (opening 80ms, closing 30ms).
- Includes a three-pin DIN connector that can be rotated 360 degrees in 90-degree increments.
- The valve is normally closed (NC) and uses a direct-acting plunger solenoid with epoxy encapsulated coil.
- Compact design suitable for most gas and fluid handling industrial applications.
Product Description
Burkert 058796 Solenoid Valve is a high-quality, compact 2-port normally closed valve designed for industrial fluid and gas control applications. It features a robust brass body construction with a PTFE seal for enhanced durability and chemical resistance. The valve is energized by a 24V DC supply voltage and supports various media such as water, steam, air, gases, hot oils, hydrocarbons, and alkaline washing agents.
The valve has a threaded inlet port size of 1/4 inch G (female) and a threaded outlet connection of 6.35 mm (female), compliant with G thread standards. It has an orifice diameter of 4 mm and can operate under a maximum pressure of 4 bar and temperature range from -40°C to 55°C, making it suitable for a wide range of industrial environments.
This direct acting solenoid valve has fast operating times with a maximum opening time of 80 milliseconds and a closing time of 30 milliseconds. The heat-resistant slip-over epoxy encapsulated coil ensures longevity and consistent performance. The push-over solenoid system features a three-pin DIN connector, which can be positioned in 90-degree increments for flexible installation.
Brass construction with PTFE seal for durability and chemical resistance. Operating voltage: 24V DC with 12W power consumption. Two-port, normally closed valve suitable for fluid and gas control. Threaded inlet and outlet connections with G standard threading.
Operating pressure up to 4 bar and temperature range from -40°C to 55°C. Fast response times with maximum opening of 80 ms and closing of 30 ms. Suitable for industrial, laboratory, manufacturing, HVAC, water treatment, and agricultural applications.
The Burkert 0255 series Solenoid Valve is ideal for fluid handling in industrial and commercial setups requiring precise flow control and reliability. Its compact size and robust materials make it versatile for many operational environments. For more detailed technical documentation and application scenarios, refer to Burkert’s official product manuals and engineering support resources.
Explore more quality valves and fittings at EnvMart to meet your industrial process control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 4 bar.
This model operates at a supply voltage of 24V DC.
The orifice diameter of this valve is 4 mm.
It can operate within a temperature range of -40°C to 55°C.
The valve features a 1/4 inch G threaded inlet port and a 6.35 mm threaded outlet connection, both female.
The default valve position is normally closed (NC).
The maximum opening time is 80 milliseconds, and the maximum closing time is 30 milliseconds.
The valve has a brass body and a PTFE seal for enhanced durability and chemical resistance.
The flow factor (Kv) for this valve is 0.5 m³/h.
Yes, it is designed for use with gases, water, steam, air, hot oils, and hydrocarbons.
It uses a direct-acting plunger solenoid with an epoxy encapsulated coil.
The country of origin for this solenoid valve is Germany.
