Burkert Solenoid Valve 3 Port Normally Closed Brass Body 110V AC 2mm Orifice 6014 Series 125335

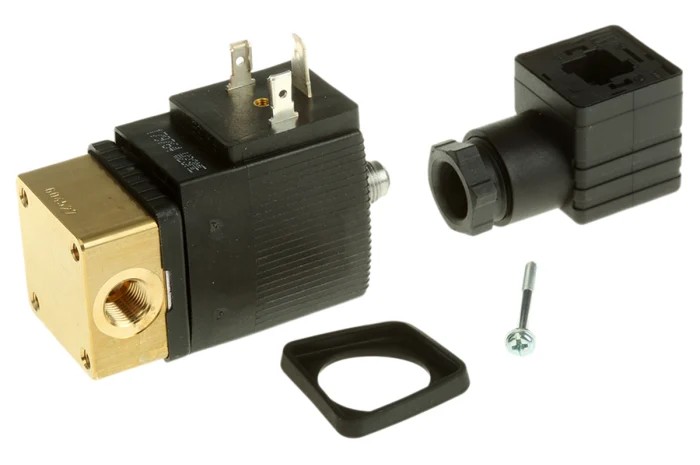

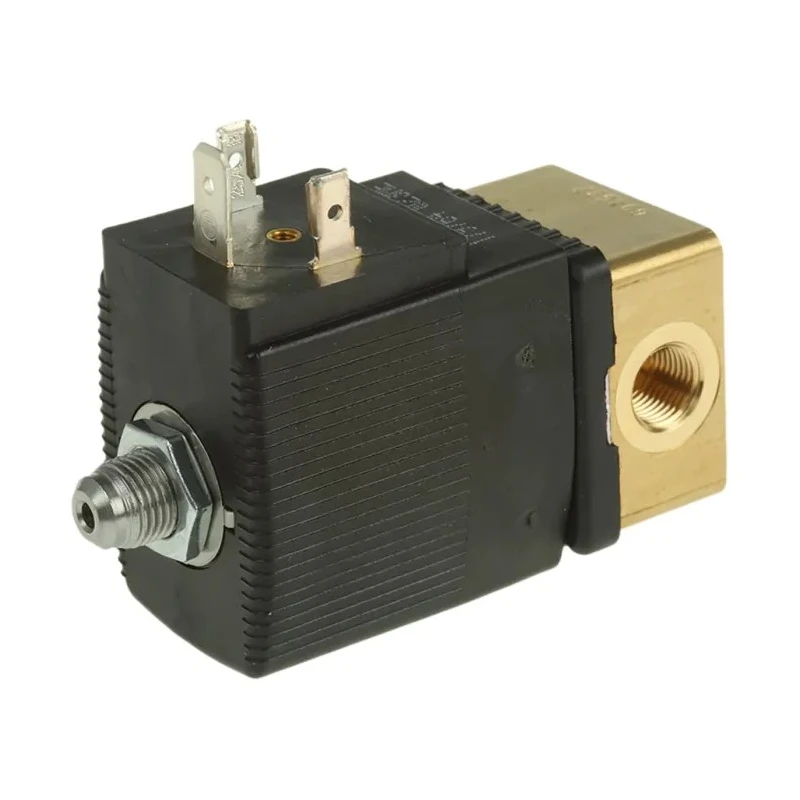

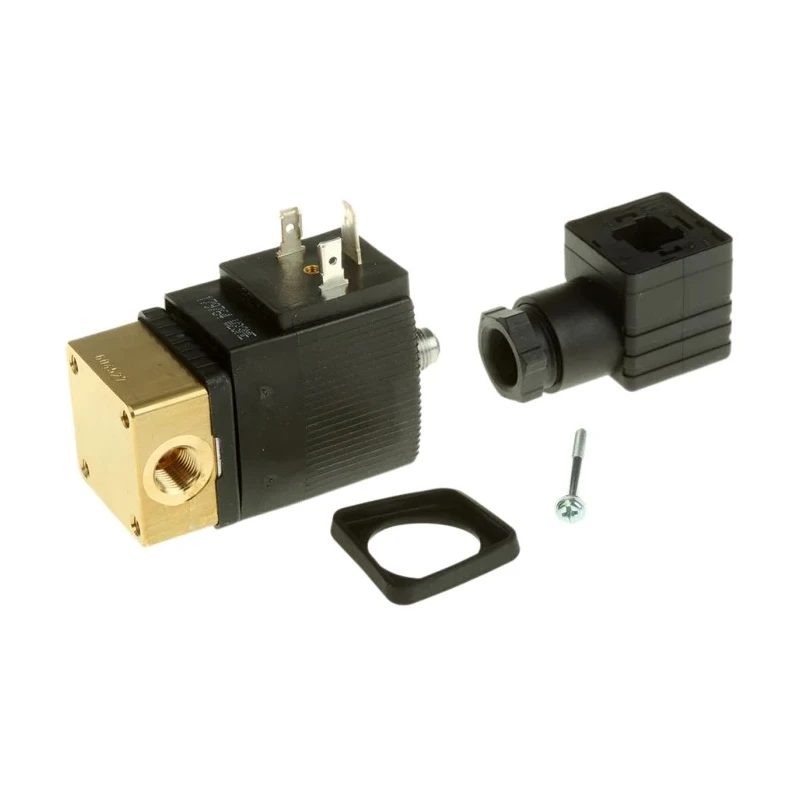

Burkert 125335 Solenoid Valve is a 3 port normally closed (NC) valve designed for industrial and mechanical fluid control applications. This valve features a brass body and FKM high-quality seal material, combining durability with reliable sealing to handle various fluids including air, gas, water, neutral fluids, oil, and oil without additives. The valve belongs to the 6014 series and is engineered for operation at 110V AC supply voltage.

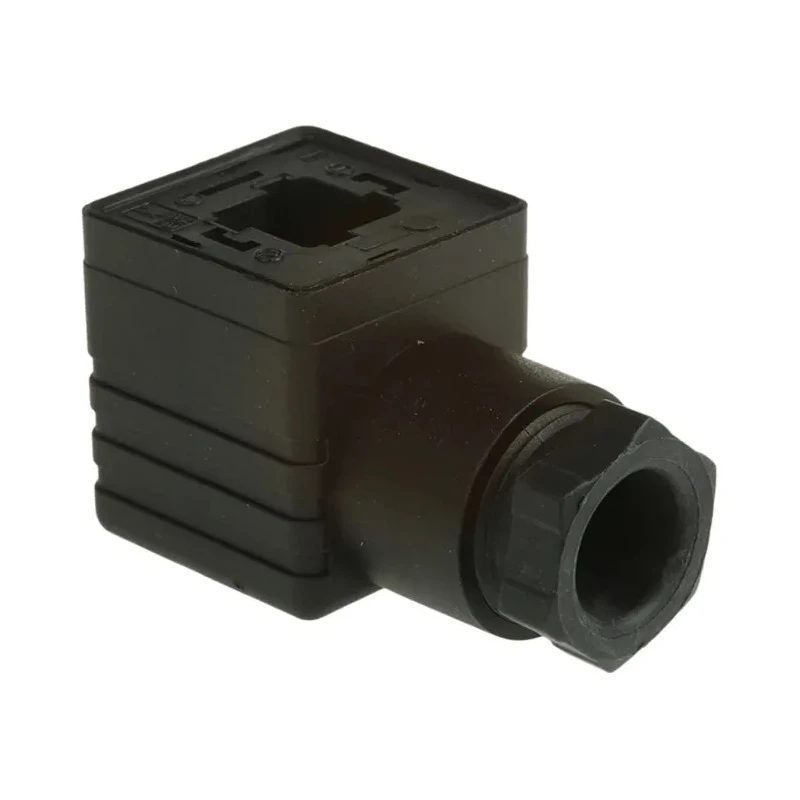

With an orifice diameter of 2mm and inlet/outlet port sizes of 3.18 mm (female), the valve handles maximum operating pressures up to 10 bar and fluid temperatures ranging from -10°C to 100°C. Designed to perform efficiently with a flow factor Kv of 0.11 m³/h, it supports maximum viscosities up to 21 mm²/s. The valve's coil is epoxy encapsulated, ensuring IP65 protection when fitted with a DIN43650C cable plug, suitable for demanding industrial environments.

The coil consumes 21VA during AC inrush and 12VA/8W at constant operation, with 8W when used with DC. The coil unit can be changed easily without removing the valve and can be rotated or locked in four positions at 90° intervals as needed. The maximum opening and closing times are 15ms and 20ms respectively, allowing rapid and precise fluid control.

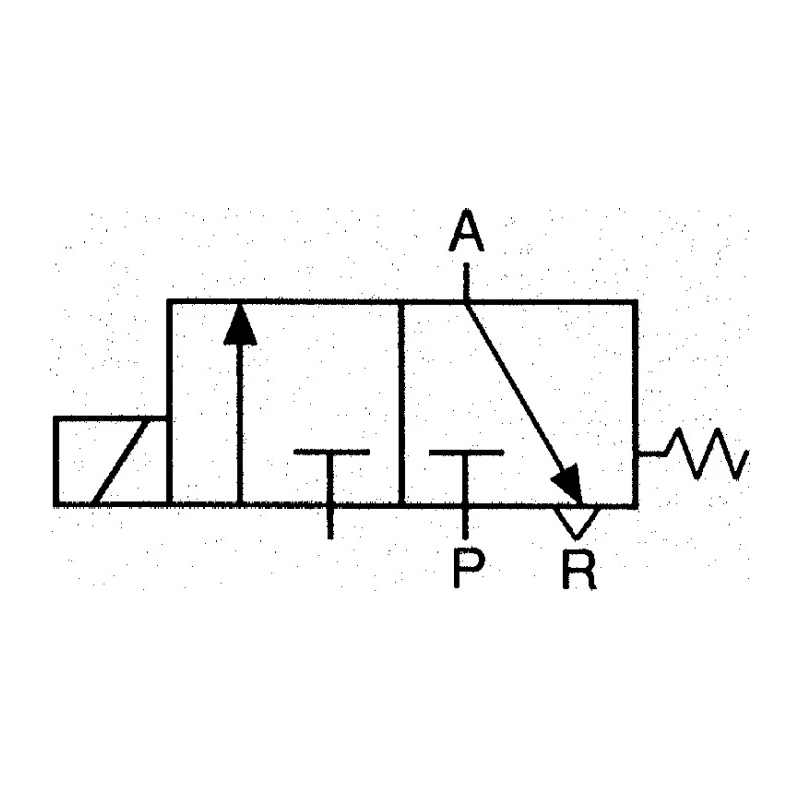

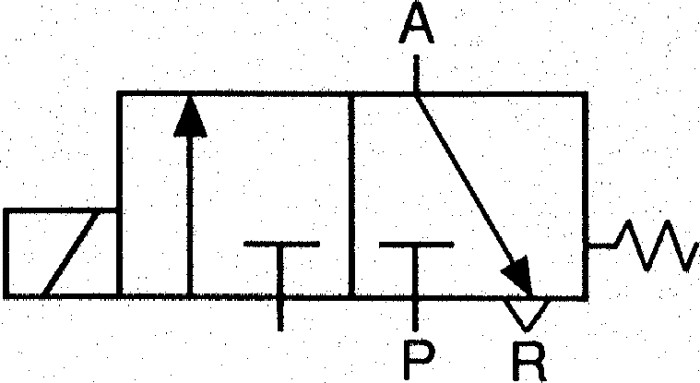

This compact 3/2-way valve is ideal for handling inert gases and fluids in pneumatic and hydraulic systems across manufacturing, industrial automation, and HVAC sectors. The valve’s construction and certifications make it a reliable component for controlling flow in neutral fluids, oil, and gases under normal and demanding conditions.

Constructed with a brass body and FKM seal material providing chemical resistance and durability. Capable of operating within a fluid temperature range from -10°C to 90°C and maximum operating temperature of 100°C. Designed to withstand a maximum operating pressure of 10 bar with a flow factor Kv of 0.11 m³/h.

Coil is epoxy encapsulated and supports IP65 protection when equipped with a DIN43650C cable plug. Power consumption is 21VA (AC inrush), 12VA/8W constant, 8W (DC), ensuring efficient energy use. Maximum opening time of 15ms and closing time of 20ms enables quick response.

Suitable for use with air, gas, neutral fluids, water, oil, and oil without additives. Coil can be rotated and locked in four positions for flexible installation. Manufactured in Germany under high-quality standards ensuring performance reliability.

This Burkert solenoid valve 125335 is widely applicable in industrial automation, fluid power, pneumatic control systems, laboratory equipment, and process engineering. For users seeking compact, durable, and precise control valves, the product offers excellent value with recognized brand reliability. Explore more products in the Solenoid Valves category at EnvMart for complementary components and enhanced system configurations.
