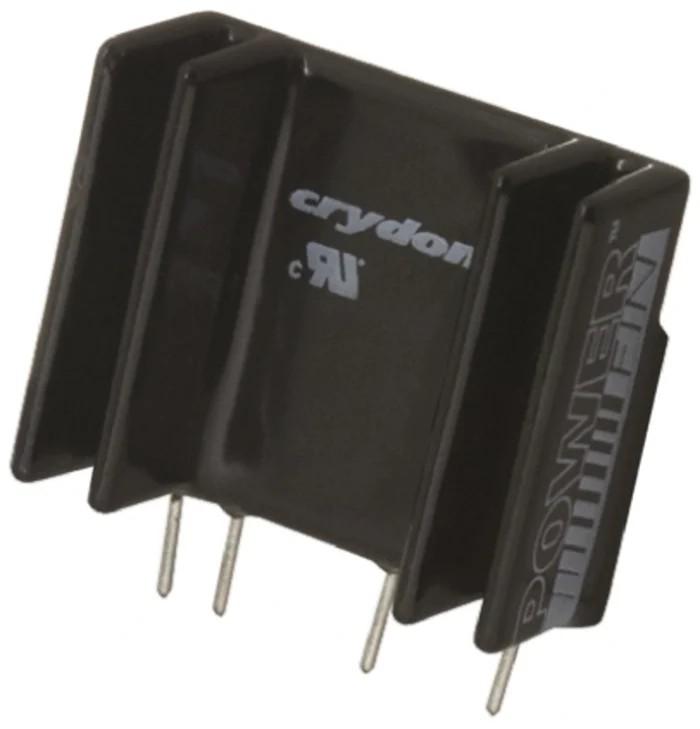

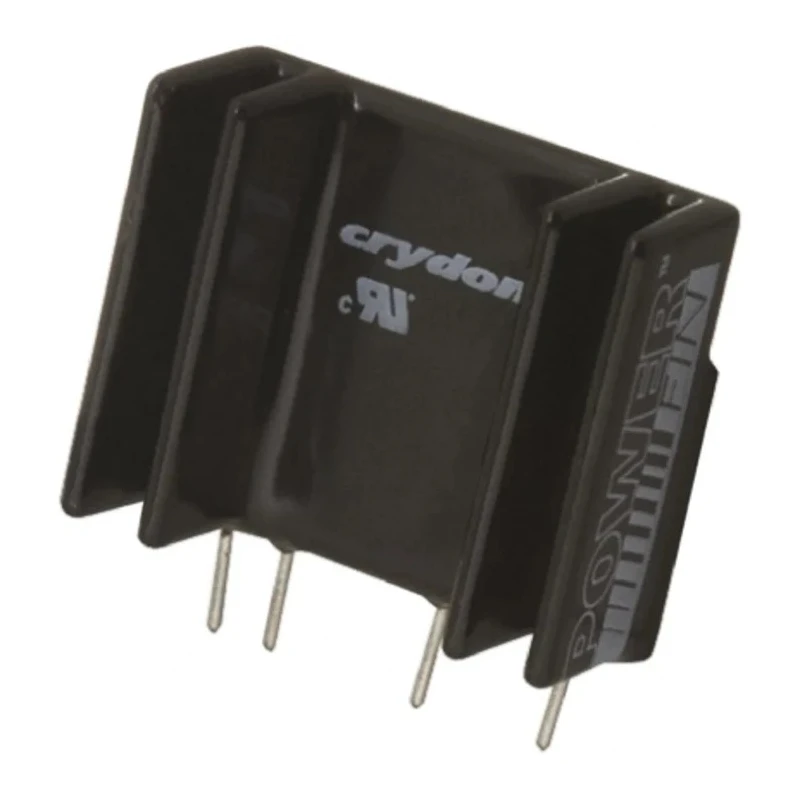

Crydom PF Series Solid State Relay, 25 A Load, PCB Mount, 280 Vrms Load, 36Vrms Control PFE240A25
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 34.3mm |
| Operating Temperature Range | -40 → +80°C |
| Length | 43.1mm |
| Model | PFE240A25 |
| IP Rating | IP20 |
| Width | 22.8mm |
| Mount Type | PCB |
| Output type | SCR |
| Series | PF |
| Maximum Operating Temperature | 80°C |
| Package Type | SIP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | CSA, RoHS, UR |
| Minimum Load Voltage | 12V |
| Minimum Control Voltage | 18V |
| Off State Leakage Current | 0.1mA |
| Surge current peak | 250A |
| Input-Output capacitance | 8pF |
Key Features
- This relay features screw terminal type for secure connections.
- It operates with a minimum control voltage of 18V up to 36Vrms control voltage.
- The product supports zero-cross switching for stable operation.
- It has an off state leakage current as low as 0.1mA.
- The relay is designed for an operating temperature range from -40°C to 80°C.
- Its dimensions are compact at 34.3mm height, 22.8mm width, and 43.1mm length.
- The packaging type is SIP, suitable for easy installation.
- Surge current peak rating of 250A ensures robust performance under transient conditions.
Product Description
Crydom PFE240A25 is a high-performance Solid State Relay designed for PCB mount applications with a robust maximum load current rating of 25 A and a maximum load voltage of 280 Vrms. The relay operates on a control voltage range from 18V to 36Vrms and employs zero-cross switching technology to minimize electrical noise and stress during switching operations.
Its compact SIP package with dimensions of 34.3mm height, 22.8mm width, and 43.1mm length offers straightforward mounting and integration into various electronic control systems. The relay uses screw terminals to ensure secure and reliable connections.
Designed for industrial, automation, and electrical applications, this relay supports an extensive operating temperature range from -40°C to 80°C, thus ensuring reliability in diverse environments. Surge current peak capacity reaches 250A, protecting the relay against transient surges and enhancing durability.
The relay features an ultra-low off-state leakage current of 0.1mA and minimal input-output capacitance at 8pF, enabling efficient and safe switching of AC or DC loads. The SCR output type contributes to precise control in automation equipment and electrical systems.
This product conforms to major industry standards including CSA, RoHS, and UR, ensuring safety, environmental compliance, and quality assurance. It is ideally suited for use in industrial automation, process control, HVAC systems, and manufacturing equipment.
This relay features screw terminal type for secure connections. It operates with a minimum control voltage of 18V up to 36Vrms control voltage. The product supports zero-cross switching for stable operation. It has an off state leakage current as low as 0.1mA.
The relay is designed for an operating temperature range from -40°C to 80°C. Its dimensions are compact at 34.3mm height, 22.8mm width, and 43.1mm length. The packaging type is SIP, suitable for easy installation. Surge current peak rating of 250A ensures robust performance under transient conditions.
Complies with CSA, RoHS, and UR standards for reliability and safety. This SCR output relay offers low input-output capacitance of 8pF typical. Explore Crydom products and Solid State Relays at EnvMart for reliable electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25 A.
This model operates with a control voltage range from 18V to 36Vrms.
The dimensions of this relay are 34.3mm in height, 22.8mm in width, and 43.1mm in length.
It supports PCB mounting, which allows for easy integration into electronic systems.
The relay is designed to operate within a temperature range of -40°C to 80°C.
The off-state leakage current is as low as 0.1mA, which contributes to its efficiency.
The surge current peak rating for this relay is 250A, allowing it to handle transient conditions effectively.
It utilizes an SCR output type, which is suitable for precise control in automation systems.
Yes, it supports zero-cross switching to minimize electrical noise and stress during operation.
This relay complies with CSA, RoHS, and UR standards, ensuring safety and environmental compliance.
It features screw terminals for secure and reliable connections.
The input-output capacitance is 8pF, which contributes to its efficient switching capabilities.
