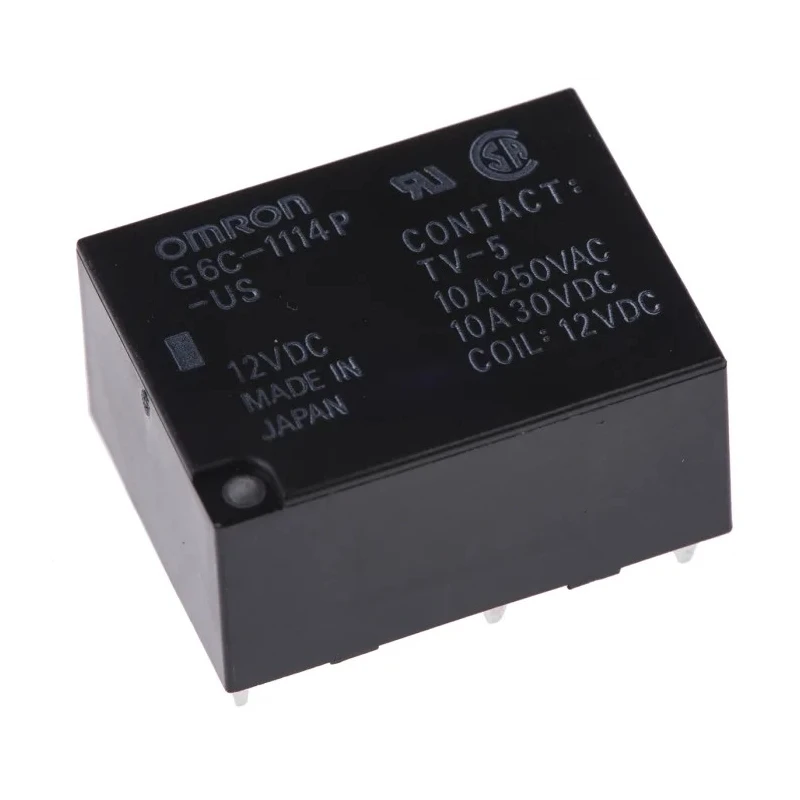

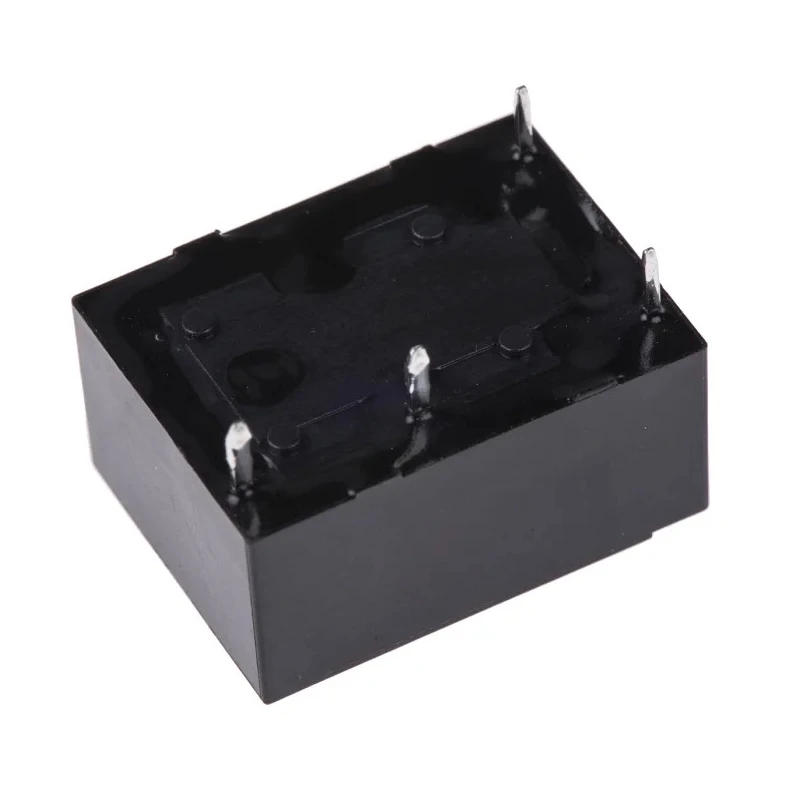

Omron Power Relay PCB Mount 12V DC Coil 10A Switching SPST G6C-1114P-US DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 20mm |
| Model | G6C-1114P-US DC12 |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6C |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
| Omron PCB Mount Non-Latching Relay, 12V dc Coil, 8A Switching Current, DPSTBrand | Omron |
Key Features
- The relay supports a coil voltage of 12V DC for efficient operation.
- It features a single pole single throw (SPST) contact configuration.
- Designed for PCB mounting with solder-type terminals for secure connection.
- Provides a switching current rating of 10 amperes suitable for various load requirements.
- Operating temperature range is from -25°C to 70°C, ensuring reliability under diverse conditions.
- Switching power capacity of up to 2.5 kVA for AC loads and switching DC voltage up to 125 V.
- Constructed with silver alloy contacts offering low contact resistance of 50 mΩ for stable conductivity.
- The coil resistance is 720 Ω with coil power consumption rated at 200 mW for low power usage.
Product Description
Omron G6C-1114P-US DC12 power relay is a compact, reliable relay designed for PCB mounting applications with a coil voltage of 12V DC and a switching current capacity of 10A. Its SPST contact configuration makes it suitable for single circuit switching in industrial electrical control systems, automation setups, and signal conditioning environments.
The relay measures 20 mm in length, 15 mm in width, and 10 mm in height, making it suitable for space-constrained PCB installations. It features solder-type terminals ensuring dependable electrical connections for long-term service.
Capable of handling switching DC voltage up to 125V and AC voltage up to 380V, this relay can operate efficiently over a temperature range from -25°C to 70°C, making it robust for industrial and commercial environments.
Its silver alloy contacts reduce contact resistance to a minimal 50 mΩ, supporting efficient and reliable switching operations. The coil resistance of 720 Ω with a power consumption of just 200 mW helps maintain low power usage and extended relay lifespan.
The product complies with RoHS standards, confirming that it meets environmental safety requirements by limiting hazardous substances. The relay’s compact size and low power coil make it ideal for automation and control panels.
SPST switching suits applications requiring simple on/off circuit control. Suitable for use in electrical, commercial, and industrial applications. High quality silver alloy contacts improve durability and conductivity. Reliable performance assured by stable resistance and power specifications.
This Omron G6C-1114P-US DC12 power relay is an essential component for engineers and technicians involved in designing and maintaining reliable electronic switching and automation systems. Its proven industrial-grade features ensure robust operation in diverse environments.
Explore more Power Relays and related electrical components in the Electronics & Electricals category on EnvMart to find compatible parts for your projects and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC, which is suitable for efficient operation in various applications.
This model has a maximum switching current rating of 10A, making it suitable for various load requirements.
It features a single pole single throw (SPST) contact configuration, which is suitable for simple on/off circuit control.
The relay measures 20 mm in length, 15 mm in width, and 10 mm in height, making it compact for PCB installations.
The operating temperature range is from -25°C to 70°C, ensuring reliability in diverse environmental conditions.
It features solder-type terminals, which provide secure and dependable electrical connections for long-term service.
The relay is constructed with silver alloy contacts, which help to reduce contact resistance to a minimal 50 mΩ for stable conductivity.
It has a switching power capacity of up to 2.5 kVA for AC loads, making it suitable for various applications.
The coil resistance is 720 Ω, and the coil power consumption is rated at 200 mW, which helps maintain low power usage.
Yes, it complies with RoHS standards, which limits hazardous substances and confirms its environmental safety.
This model is suitable for use in electrical, commercial, and industrial applications, particularly in automation and control systems.
The maximum switching DC voltage for this relay is 125V, allowing it to handle various DC load requirements efficiently.
