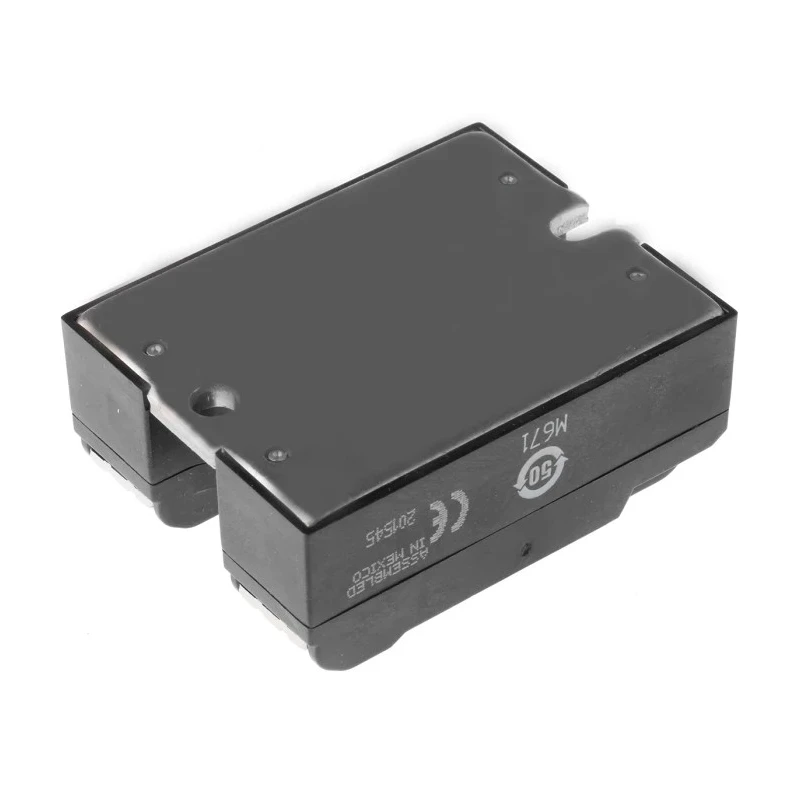

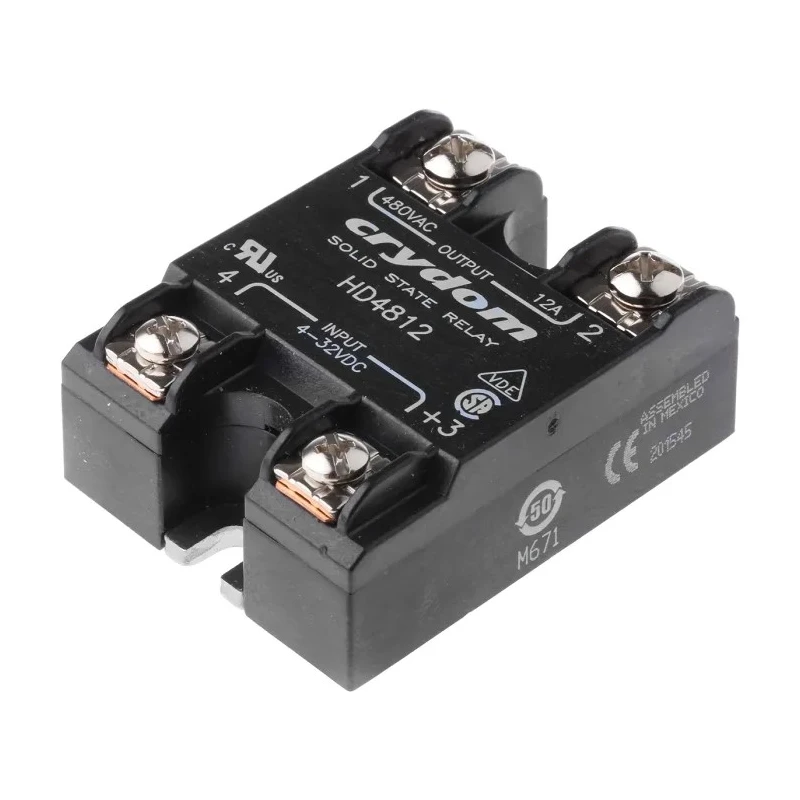

Crydom HD Series Solid State Relay Panel Mount 12A Load Current 530V Load Voltage 32V Control HD4812

The Crydom HD Series Solid State Relay model HD4812 is a reliable panel mount device designed to handle load currents up to 12 amperes and load voltages up to 530 volts. Supporting control voltages up to 32 volts, this SSR offers robust switching for industrial, automation, and process control applications.

Featuring an SCR output, the relay supports zero-cross switching which minimizes electrical noise and reduces mechanical wear. Its construction includes Direct Bond Copper (DBC) technology, enhancing thermal dissipation and allowing excellent performance in demanding workloads.

This model is equipped with anti-rotation barriers, flexible control voltage ranges, and screw terminals for secure electrical connections. It operates efficiently within a wide temperature range from -40° to 80°C, ensuring stability in harsh industrial environments. The compact form factor of 58.4mm length, 23mm height, and 22.6mm width allows easy panel integration.

Manufactured with an epoxy-free design, the relay meets multiple approvals including CSA, UR, and RoHS, ensuring compliance with industry safety and environmental standards. The off-state leakage current is minimal at 1mA, supporting energy-efficient operations.

Robust SCR output designed for heavy industrial loads. Zero voltage switching reduces electrical noise and prolongs relay life. Panel mount configuration with screw terminal connections. Operates reliably between -40°C and 80°C ambient temperature.

Designed for control voltages up to 32V with minimum control voltage rating. Compact dimensions: 58.4mm length, 23mm height, 22.6mm width. Complies with CSA, UR, and RoHS standards for safety and environmental compliance.

Features Direct Bond Copper (DBC) technology for superior thermal performance. Anti-rotation barriers included to maintain mounting stability. Epoxy-free design improving electrical insulation reliability.

This Crydom HD4812 SSR is ideal for use in industrial, manufacturing, HVAC, water treatment, and automation control applications where reliable solid-state switching is required. Its panel mount style enables efficient installation in control cabinets and distribution panels.
