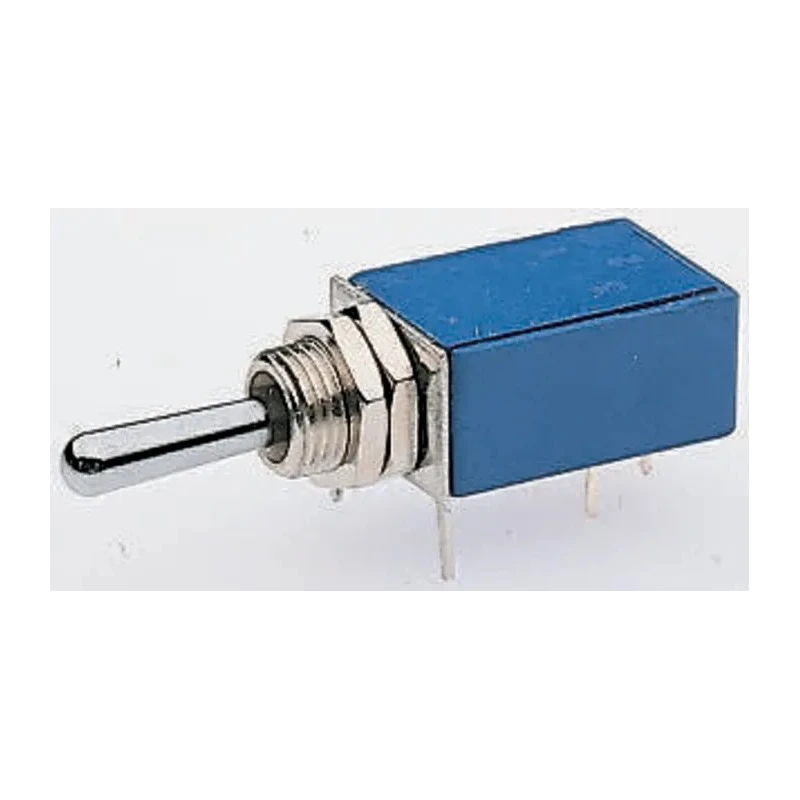

APEM Toggle Switch PCB Mount On-On SPDT Through Hole Terminal, 30 V dc, 125 V ac 21236NA

Free Delivery in India | Lowest Global Shipping Charges

APEM Toggle Switch PCB Mount On-On SPDT Through Hole Terminal, 30 V dc, 125 V ac 21236NA

Name: APEM Toggle Switch PCB Mount On-On SPDT Through Hole Terminal, 30 V dc, 125 V ac 21236NA
Brand: APEM
SKU: 396211
Price: 742.8 INR
Availability: InStock



Category Toggle Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Height	35.5mm
Length	11mm
Model	21236NA
Width	11.3mm
Mount Type	PCB
Series	21000N
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-40°C
Panel Cutout Size	6.5 mm
Minimum Load	100mA @ 10V
Terminal type	Through Hole
Standards/Approvals	RoHS
Switch Operation	On-On
Actuator Length	11.5mm
Contact DC Voltage	30V dc
Switch Contact Current	4A
Mechanical Life	100000Operations
Contact AC Voltage	125V ac
Actuator Material	Brass

Key Features

This toggle switch features a durable brass actuator and chrome plated components for reliable performance.
Mechanical life rating of 100000 operations ensures longevity and consistent switching.

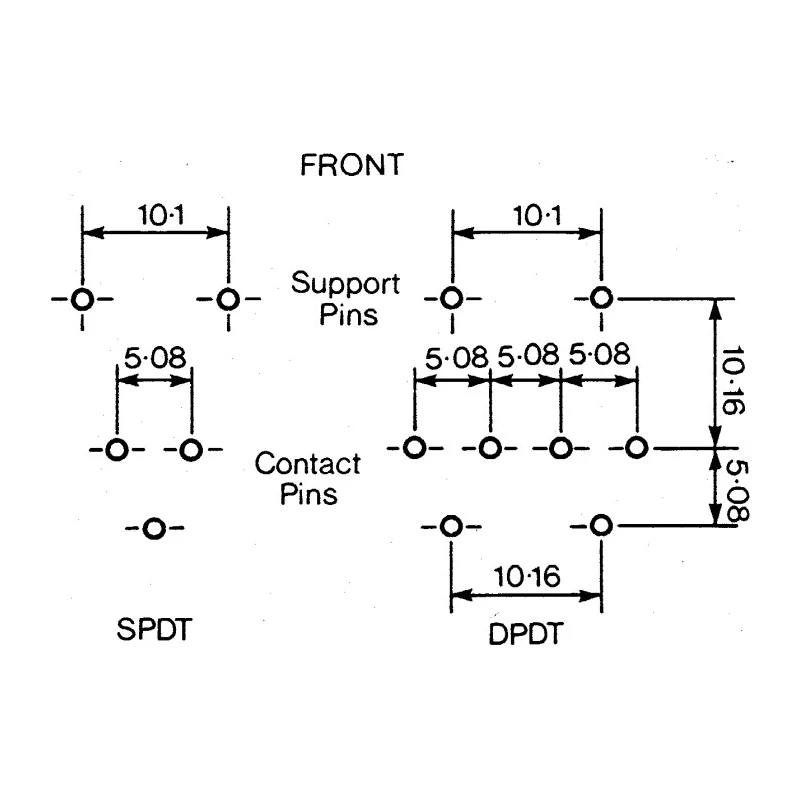

Suitable for PCB mounting with a panel cutout size of 6.5 mm and 0.1in pitch grid for terminals.
Rated for a switch contact current of 4A, supporting both AC and DC voltages up to 125 V and 30 V respectively.
Operates efficiently in a temperature range from -40°C to 85°C for diverse environment usage.
Silver self-cleaning wiping contacts minimize contact resistance and maintain electrical reliability.
Compact dimensions of 35.5 mm height, 11.3 mm width, and 11 mm length allow for space-saving PCB integration.
This toggle switch complies with RoHS standards ensuring environmentally safe manufacturing.

Product Description

APEM 21236NA Toggle Switch PCB Mount On-On SPDT is engineered for industrial and commercial electrical applications requiring reliable switching.

The switch supports both DC and AC voltages with ratings of 30 V dc and 125 V ac, and a contact current capacity of 4A, making it versatile for control circuits, automation, and electronic devices.

Equipped with a brass actuator and chrome plating, the switch provides robust mechanical durability alongside self-cleaning silver contacts to maintain low resistance and longevity over 100000 mechanical operations and 20000 electrical cycles.

The switch is designed for easy PCB mounting with through-hole terminals spaced on a 0.1 inch pitch grid and a panel cutout size of 6.5 mm, making it suitable for compact circuit designs.

Its operating temperature range from -40°C to 85°C enables use in varied environments including industrial automation, instrumentation, and control systems. Compact physical dimensions ensure convenient panel integration without occupying unnecessary space.

This product meets RoHS compliance standards reflecting environmentally responsible manufacturing processes. Manufactured in France to exacting quality standards, the APEM 21236NA provides dependable and precise electrical control in numerous applications.

This toggle switch features a durable brass actuator and chrome plated components for reliable performance. Mechanical life rating of 100000 operations ensures longevity and consistent switching. Suitable for PCB mounting with a panel cutout size of 6.5 mm and 0.1in pitch grid for terminals.

Rated for a switch contact current of 4A, supporting both AC and DC voltages up to 125 V and 30 V respectively. Operates efficiently in a temperature range from -40°C to 85°C for diverse environment usage. Silver self-cleaning wiping contacts minimize contact resistance and maintain electrical reliability.

Compact dimensions of 35.5 mm height, 11.3 mm width, and 11 mm length allow for space-saving PCB integration. This toggle switch complies with RoHS standards ensuring environmentally safe manufacturing. Manufactured in France, representing quality European engineering.
