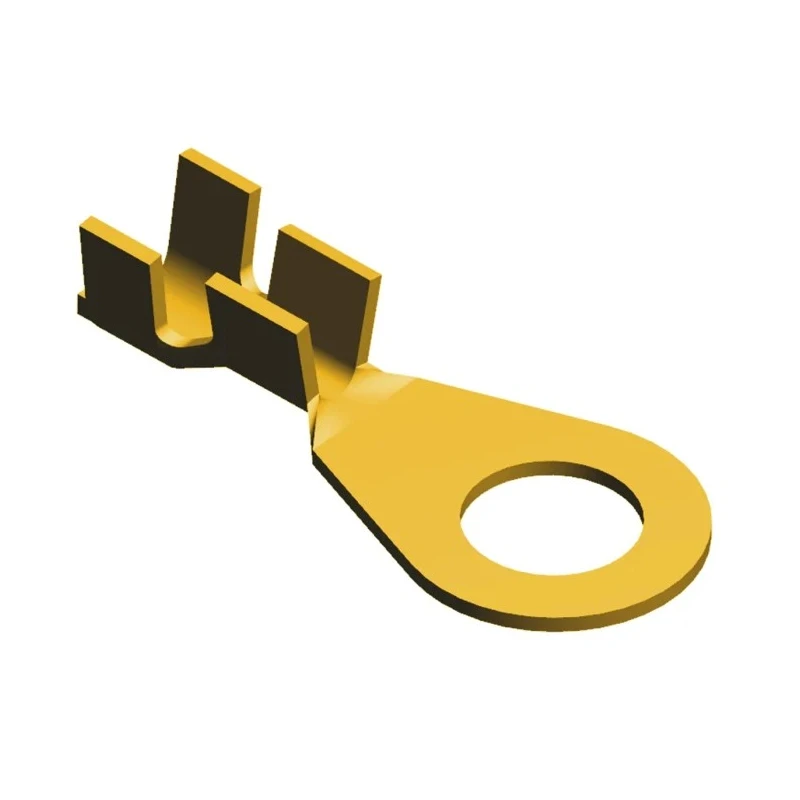

TE Connectivity Uninsulated Ring Terminal Brass Contact Yellow 10 Stud Size 20 AWG to 16 AWG 19.41mm Length 60394-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.51mm |
| Model | 60394-1 |
| Insulation | Uninsulated |
| Overall Length | 19.41mm |
| Contact Material | Brass |
| Series | 60394 |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.4mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 8.69mm |
| Inner Ring Diameter | 5mm |
| Stud Size | 10 |
Key Features
- Uninsulated design for reliable electrical connections.
- Brass contact material ensures good conductivity.
- Designed for wire sizes ranging from 20 AWG to 16 AWG.
- Yellow color provides easy identification of size and type.
- Overall length measures 19.41 mm for compact installation.
- Outer ring diameter is 8.69 mm with inner ring diameter of 5 mm.
- Thickness of 0.51 mm for mechanical durability.
- Operating temperature range from -40°C to 110°C allows for versatile use.
Product Description
TE Connectivity 60394-1 uninsulated ring terminal is crafted with brass contact material for excellent electrical conductivity and mechanical robustness. This ring terminal belongs to the 60394 series, designed to accommodate wire sizes from 20 AWG to 16 AWG and equipped with a 10 stud size, making it ideal for various electrical connection needs.
The terminal features a yellow color coding which assists users in quick size identification during installation or maintenance. With an overall length of 19.41 mm, outer ring diameter of 8.69 mm, and an inner ring diameter of 5 mm, it offers compact and effective connection points. The thickness is engineered at 0.51 mm to ensure sufficient mechanical strength while maintaining ease of crimping.
Its uninsulated design caters to applications requiring direct metal-to-metal contact, often used in power connectors, electronic circuits, and wiring harnesses. The operating temperature range from -40°C to 110°C enhances its suitability for industrial, commercial, and laboratory environments where durability under varying thermal conditions is crucial.
Uninsulated ring terminal with brass contact material. Supports wire sizes: 20 AWG minimum, 16 AWG maximum. Yellow color coding for easy size recognition. 10 stud size compatible for fastening. Overall length of 19.41 mm for convenient installation.
Operating temperature range: -40°C to 110°C. Robust 0.51 mm thickness for durability. Perfect for electronics, power connectors, and wiring applications. Complies with standard electrical connector requirements.
This product is ideal for professionals engaged in electronics assembly, industrial wiring, and maintenance tasks requiring reliable and efficient electrical connections. By choosing TE Connectivity 60394-1 Ring Terminals, users gain high-quality components designed to optimize connectivity and performance.
Explore a broad range of electronics components and connectors in the EnvMart catalog to find complementary parts and accessories suited for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal is designed to accommodate wire sizes ranging from 20 AWG to 16 AWG.
The overall length of this model is 19.41 mm, with an outer ring diameter of 8.69 mm and an inner ring diameter of 5 mm.
It is crafted from brass contact material, which ensures good electrical conductivity.
The operating temperature range for this terminal is from -40°C to 110°C.
The thickness of this model is 0.51 mm, providing mechanical durability.
This terminal has a stud size of 10, making it suitable for fastening applications.
No, this model features an uninsulated design, allowing for direct metal-to-metal contact.
It is ideal for power connectors, electronic circuits, and wiring harnesses in various electrical connection needs.
The terminal features yellow color coding, which assists in quick size identification during installation or maintenance.
This ring terminal is manufactured in India.
It belongs to the 60394 series, which is designed for various electrical connection needs.
The maximum wire size for this terminal is 1.4 mm², accommodating a range of wire gauges.
