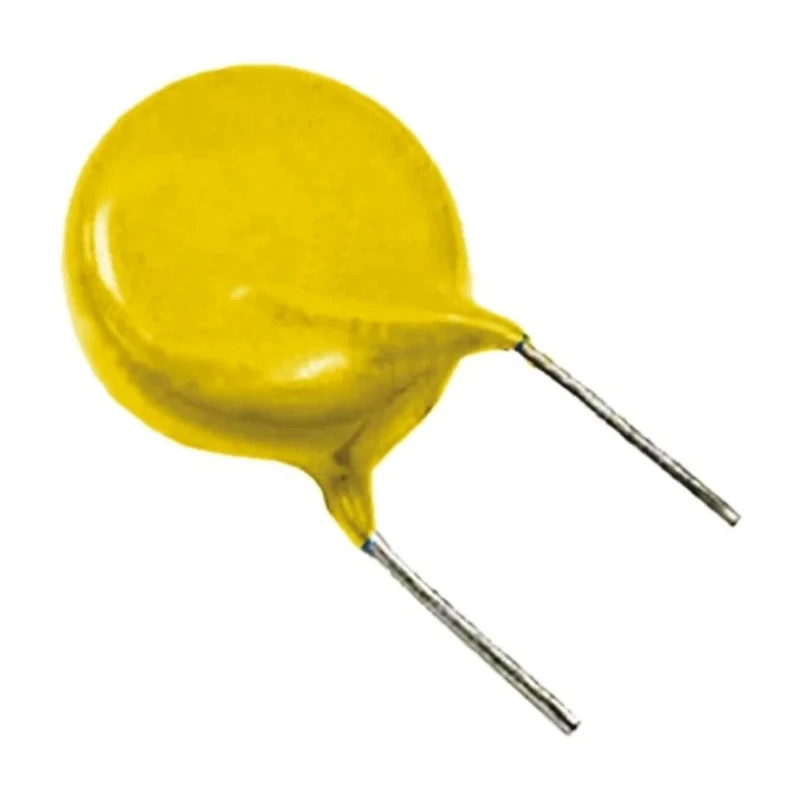

Vishay Single Layer Ceramic Capacitor 1 nF 500V AC ±20% Y5U Dielectric VY1 Series Through Hole Disc 125°C VY1102M35Y5UG6TV0

Vishay VY1102M35Y5UG6TV0 Single Layer Ceramic Capacitor offers a capacitance of 1 nF with an AC voltage rating of 500V. It is built with Y5U dielectric material, designed for through hole mounting in a disc package configuration. This capacitor supports a maximum operating temperature of 125°C, suitable for demanding industrial and commercial electronics applications.

As part of the VY1 series, it is an X1/Y1 ceramic disc capacitor encapsulated in halogen-free, flammable resistant epoxy resin complying with UL 94 V-0 standards. Its robust construction ensures high reliability and performance under AC line rated conditions like Class X1 at 760 Vac and Class Y1 at 500 Vac.

The capacitor features a ±20% capacitance tolerance and a low dissipation factor of 2.5%, making it ideal for filtering, noise suppression, and signal conditioning in electronic circuitry.

Dimensions include a height of 12 mm, diameter of 9 mm, and width of 5 mm, with 2 pins and solder terminal type enabling secure PCB installation.

It meets various certifications and standards including RoHS compliance, IEC 60384-14, DIN EN 60384-14, and CSA approvals, ensuring it fits applications requiring environmental and safety conformity.

Common industrial use cases for this capacitor include power supplies, automotive electronics, HVAC systems, and other electrical equipment requiring reliable AC line rated capacitors.

This capacitor features a capacitance of 1 nF suitable for various electronic applications. Rated voltage is 500V AC with a tolerance of ±20% ensuring reliability under AC conditions. The capacitor uses Y5U dielectric, offering stable performance up to 125 degrees Celsius.

It has a through hole mount type with a disc package and solder terminal type for secure PCB mounting. Dimensions include a height of 12 mm, diameter 9 mm, and width 5 mm. This component complies with RoHS, IEC 60384-14, DIN EN 60384-14, and CSA standards.

Dissipation factor is low at 2.5%, indicating low energy loss during operation. It is halogen free and encapsulated in flammable resistant UL 94 V-0 epoxy resin. Designed for high reliability as an X1/Y1 ceramic disc capacitor in the VY1 series.
