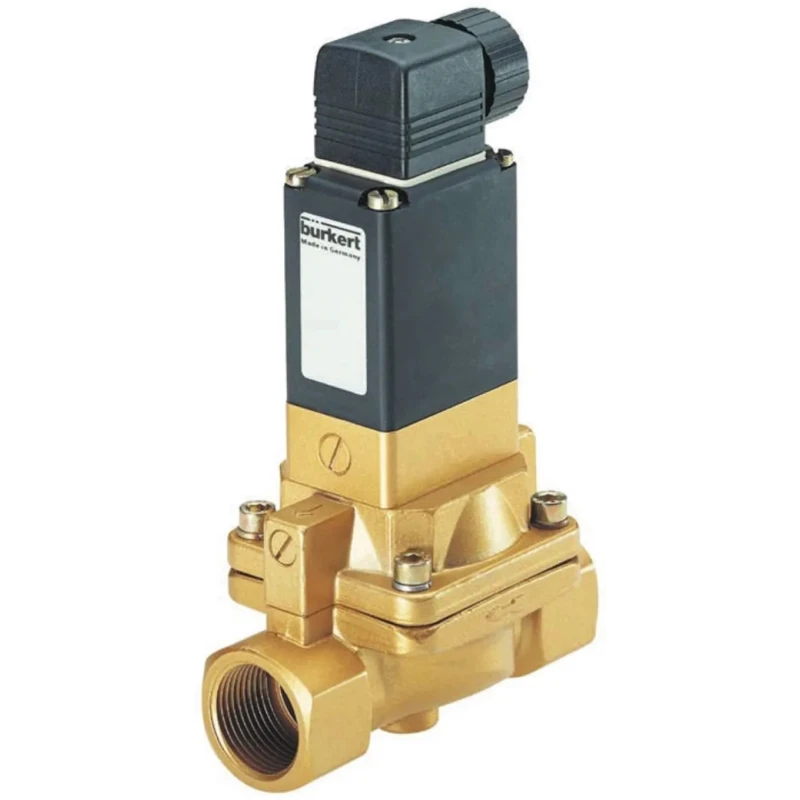

Burkert Solenoid Valve, 2 Port, Normally Closed, 230V AC, Brass Body, Series 5282, Model 134437
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | 134437 |
| Series | 5282 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Orifice Diameter | 20mm |
| Supply Voltage | 230V ac |
| Hazardous Area Certification | ed |
| Standards/Approvals | UL, UR, CGA/AGA, CSA |
| Default Valve Position | NC |
| Maximum Opening Time | 0.8s |
| Flow Factor Kv | 6.5m³/h |
| Maximum Closing Time | 4s |
Key Features
- The valve features a 20mm orifice diameter for effective flow control.
- It operates reliably with a maximum pressure of 10 bar and temperature range from 0°C to 55°C.
- Controls opening and closing times with integrated restrictor screws for precise operation.
- Includes lockable manual override and IP65 protection for durability.
- Standards compliance includes UL, UR, CGA/AGA, and CSA certifications.
- Suitable for most industrial gas and fluid handling applications.
- Designed with a long-life solenoid system and corrosion resistant diaphragm seal.
- Servo assist mechanism enhances valve response with maximum opening time of 0.8 seconds and closing time of 4 seconds.
Product Description
Burkert 134437 solenoid valve is a two-way, normally closed valve operating at 230V AC with a brass body and diaphragm seal for separating fluids, ensuring coil protection in challenging applications.
This valve features a 20mm orifice diameter and is suitable for neutral media including gases and liquids. It supports a maximum operating pressure of 10 bar and temperature between 0°C and 55°C, making it ideal for various industrial applications including fluid and gas handling.
The Solenoid Valve is characterized by corrosion resistance and robustness thanks to its diaphragm seal, which minimizes sensitivity to dirty fluids. Its long-life solenoid system features opening and closing times controlled via integrated restrictor screws, providing reliable and precise valve function.
A lockable manual override allows for user control during maintenance or emergency situations, paired with IP65 protection rating ensuring solid ingress protection against dust and water.
Certified under UL, UR, CGA/AGA, and CSA standards, the valve complies with rigorous safety and quality requirements, and its servo-assist design markedly improves the response times with maximum closing time of 4 seconds and opening time of 0.8 seconds.
The valve’s 2-port design supports neutral media applications across industrial setups. Brass body ensures durability and resistance to corrosion. Lockable manual override provides added operational flexibility. Integrated restrictor screws manage precise opening and closing.
Protection to IP65 rating for challenging environments. Low sensitivity to dirty fluids due to diaphragm seal. Suitable for pneumatic, fluid power, and general industrial uses. Origin: Germany. This product is an essential component for industrial fluid and gas control systems, supporting applications in manufacturing, HVAC, water treatment, and process automation.
Explore more industrial valves and fittings available at EnvMart to complete your fluid control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
This model features a 20mm orifice diameter for effective flow control.
The valve operates within a temperature range of 0°C to 55°C.
It operates at a supply voltage of 230V AC.
The maximum opening time is 0.8 seconds, and the maximum closing time is 4 seconds.
The valve has a brass body and a diaphragm seal for separating fluids.
It is certified under UL, UR, CGA/AGA, and CSA standards.
Yes, it includes a lockable manual override for user control during maintenance or emergencies.
It is suitable for neutral media, including gases and liquids.
The valve has an IP65 protection rating, ensuring solid ingress protection against dust and water.
The servo assist mechanism improves the response times of the valve, allowing for quicker operation.
This product is manufactured in Germany.
