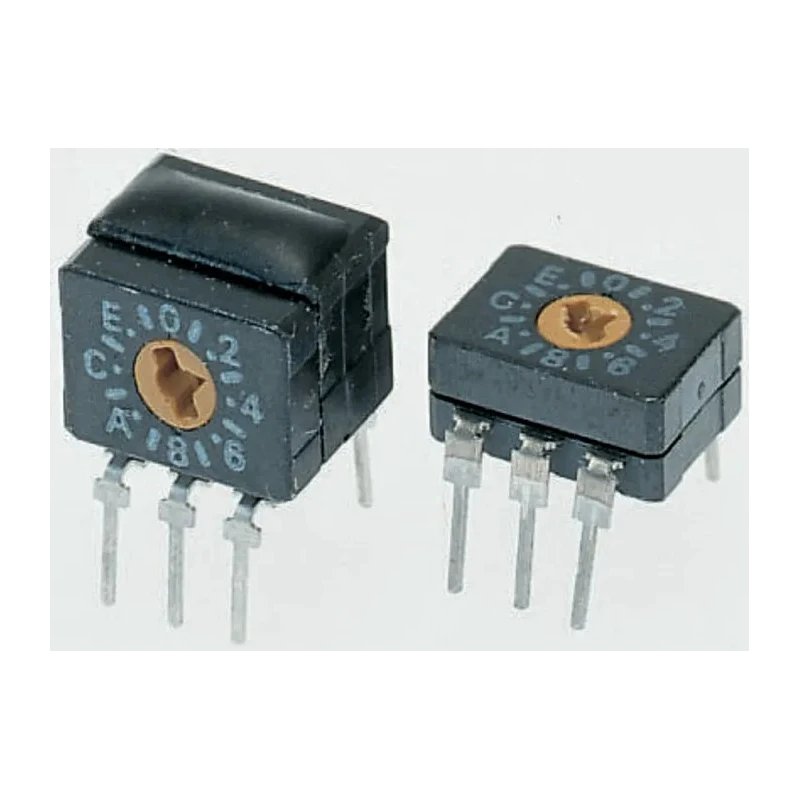

Omron Rotary Coded DIP Switch Through Hole, Rotary Flush Actuator, Contact Rating 1 to 100mA 5 to 30Vdc, Model A6C-10R(N)

Omron A6C-10R(N) Rotary Coded DIP Switch Through Hole is a precision electrical switch designed for industrial automation, instrumentation, and control systems requiring reliable rotary-coded inputs.

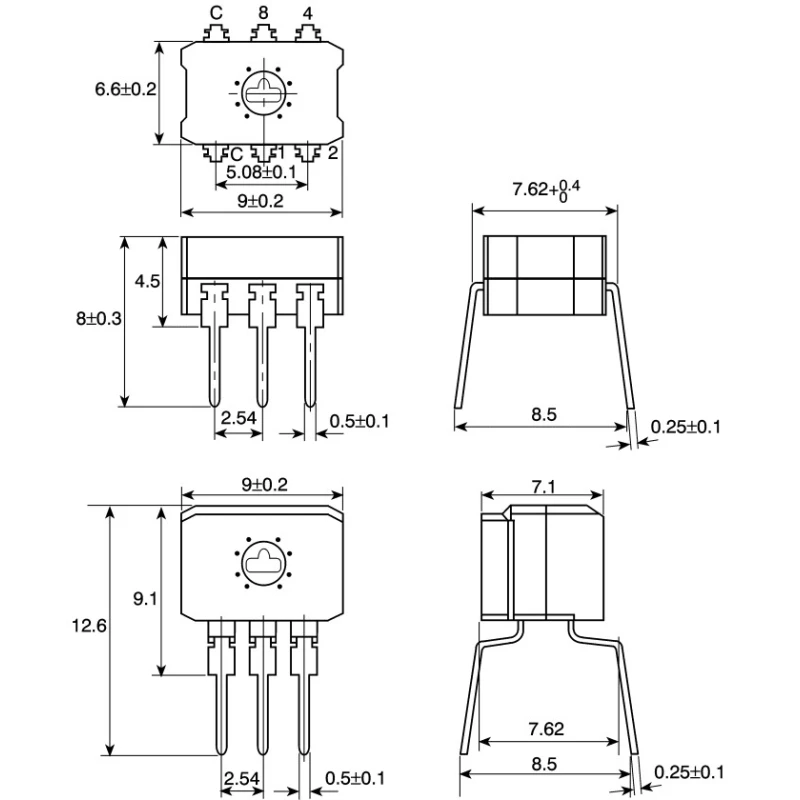

This rotary flush actuator switch has a low profile of 4.5 mm, enhancing PCB space efficiency and ease of use. It is internally sealed to resist ingress of cleaning fluids and other contaminants, offering reliable performance in harsh environments.

With a contact rating from 1 to 100 mA and operating voltage range of 5 to 30 Vdc, it suits low power signal switching applications. Contact resistance is tightly controlled at approximately 200 mΩ to minimize signal loss and ensure consistent operation.

The mechanical life rating exceeds 100,000 operations, making it suitable for repetitive switching tasks in industrial equipment. The switch operates reliably between temperatures of -20 °C to +80 °C to accommodate a wide range of operating environments.

Soldering temperature tolerances allow manual soldering at up to 350 °C for 3 seconds or automatic soldering at up to 260 °C for 5 seconds, ensuring compatibility with standard PCB assembly processes.

The through hole mounting style enables secure and stable attachment to printed circuit boards. This DIP switch features a low profile of 4.5 mm for top-actuated operation. It is internally sealed against ingress of cleaning fluids and contaminants.

Contact rating supports currents from 1 to 100mA at voltages from 5 to 30 Vdc. Contact resistance is approximately 200 mΩ ensuring low power loss. The mechanical life exceeds 100,000 operations for long-term durability. Operating temperature range spans from -20 to +80 °C suitable for various environments.

Soldering temperatures are limited to 350 °C max. for hand soldering and 260 °C max. for automatic soldering durations. The switch mounts through hole style for secure PCB integration.

This switch is widely used in industrial automation, electrical control panels, instrumentation used in laboratories, manufacturing equipment, and commercial electronic devices. Its robust sealing and reliable contact performance ensure stable operation under demanding conditions.
