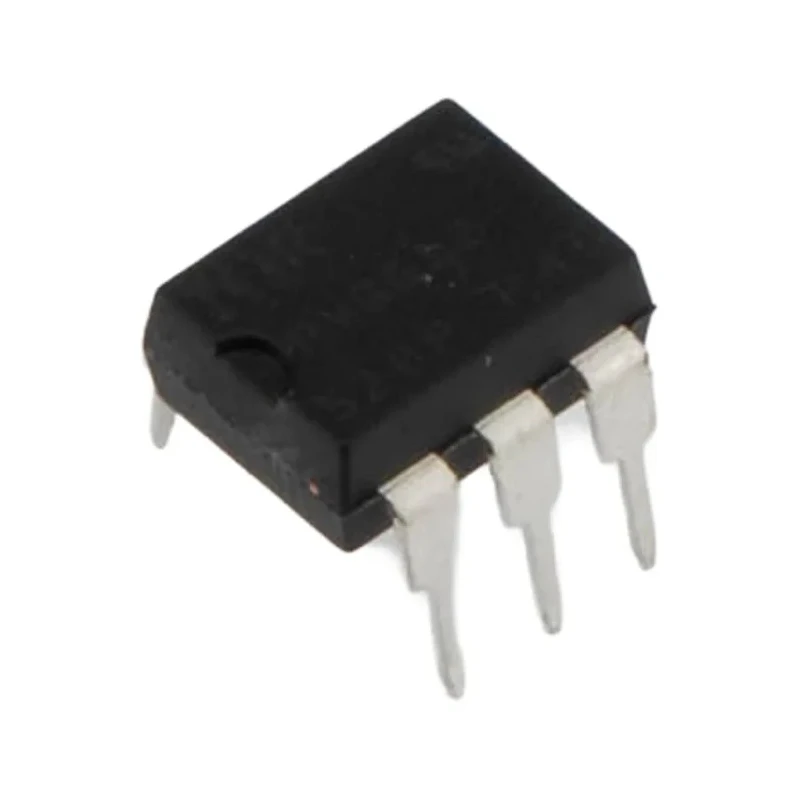

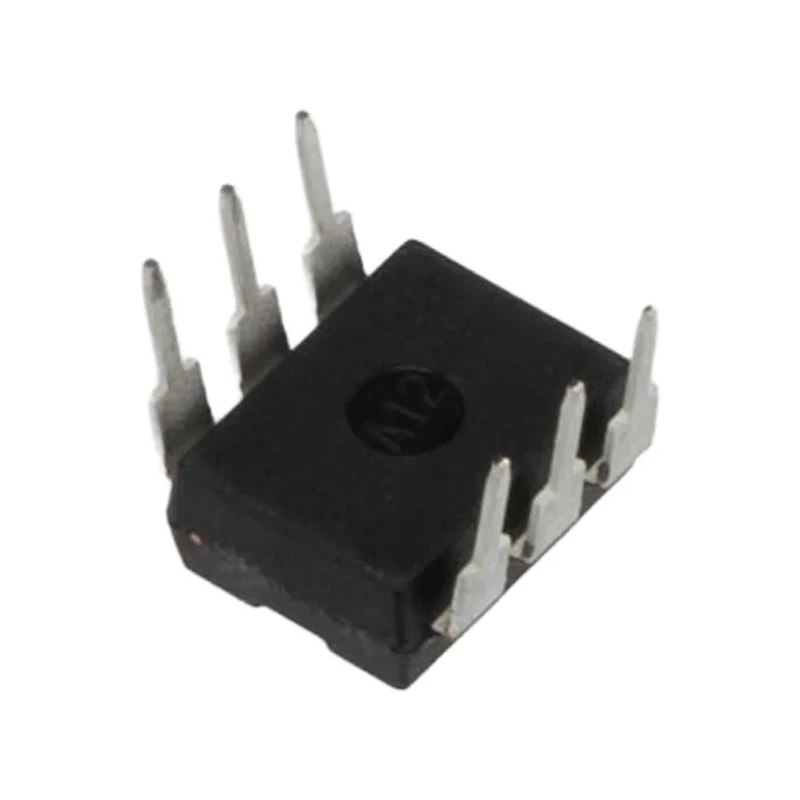

Infineon PVG612 Series Solid State Relay 2A Load 60V PCB Mount PDIP Package
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Infineon |
| Height | 3.4mm |
| Length | 8.6mm |
| Model | PVG612 |
| Width | 6.5mm |
| Mount Type | PCB |
| Output type | Current/Voltage |
| Series | PVG612 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | PDIP |
| Capacitance | 130pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Maximum Load Current | 2A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 0V |
| Infineon PVG612 Series Solid State Relay, 2 A Load, PCB Mount, 60 V LoadBrand | Infineon |
Key Features
- Single pole single throw (SPST) contact configuration for general purpose switching.
- Utilizes Infineon HEXFET power MOSFET output switch for high reliability.
- Wide operating temperature range from -40°C to 85°C for versatile industrial applications.
- Low input sensitivity with 5 mA typical input current.
- Offers 4000 VRMS isolation between input and output to ensure safe operation.
- Bounce-free operation ensures stable switching performance.
- Meets RoHS environmental compliance standards.
- Designed for PCB mounting using PCB terminals for easy integration.
Product Description
Infineon PVG612PBF Solid State Relay is designed for general purpose switching in industrial and automation applications. Featuring a single pole single throw (SPST) contact configuration and utilizing Infineon's HEXFET power MOSFET technology, it provides a reliable transistor output for current and voltage switching. The device is housed in a PDIP package suitable for PCB mounting, making it ideal for compact and space-saving designs.
The relay supports a maximum load current of 2A and a load voltage up to 60V, with a minimum load voltage of 0V. It operates efficiently across a broad temperature range from -40°C to 85°C, ensuring durability in diverse environments. The integrated photovoltaic generator driver circuit supports bounce-free switching, reducing switching noise and increasing device lifespan.
The device features a 4000 VRMS input-to-output isolation, providing electrical safety in various applications, including industrial controls, automation systems, and signal conditioning. With a low input sensitivity of 5 mA and a capacitance rating of 130 pF, it offers excellent performance and noise immunity in sensitive electronic circuits.
Single pole single throw (SPST) configuration for reliable switching. Employs Infineon HEXFET power MOSFET output switch technology. Compact PDIP package with PCB mount terminals for easy installation. 2A maximum load current and 60V maximum load voltage ratings.
Wide operating temperature range from -40°C to 85°C. High isolation voltage of 4000 VRMS for safe operation. Bounce-free operation ensures stable switching without mechanical wear. Compliant with RoHS environmental standards.
Capacitance of 130 pF for noise reduction. Manufactured in Mexico to high quality standards.
This solid state relay is well suited for use in industrial automation, manufacturing processes, electrical equipment, and signal conditioning applications requiring a compact and reliable switching component. Discover the Infineon PVG612 series for effective power and signal control in electronic designs.
Explore more Solid State Relays and related components on EnvMart for your electronics and electrical engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 2A.
It supports a maximum load voltage of 60V and a minimum load voltage of 0V.
This solid state relay operates efficiently across a temperature range from -40°C to 85°C.
It features a single pole single throw (SPST) contact configuration for reliable switching.
It is housed in a PDIP package suitable for PCB mounting.
The input sensitivity is low, with a typical input current of 5 mA.
It offers a high isolation voltage of 4000 VRMS between input and output.
The capacitance rating is 130 pF, which helps in noise reduction.
Yes, it meets RoHS environmental compliance standards.
It is well suited for industrial automation, manufacturing processes, electrical equipment, and signal conditioning applications.
The dimensions are 8.6mm in length, 6.5mm in width, and 3.4mm in height.
It is manufactured in Mexico to high quality standards.
