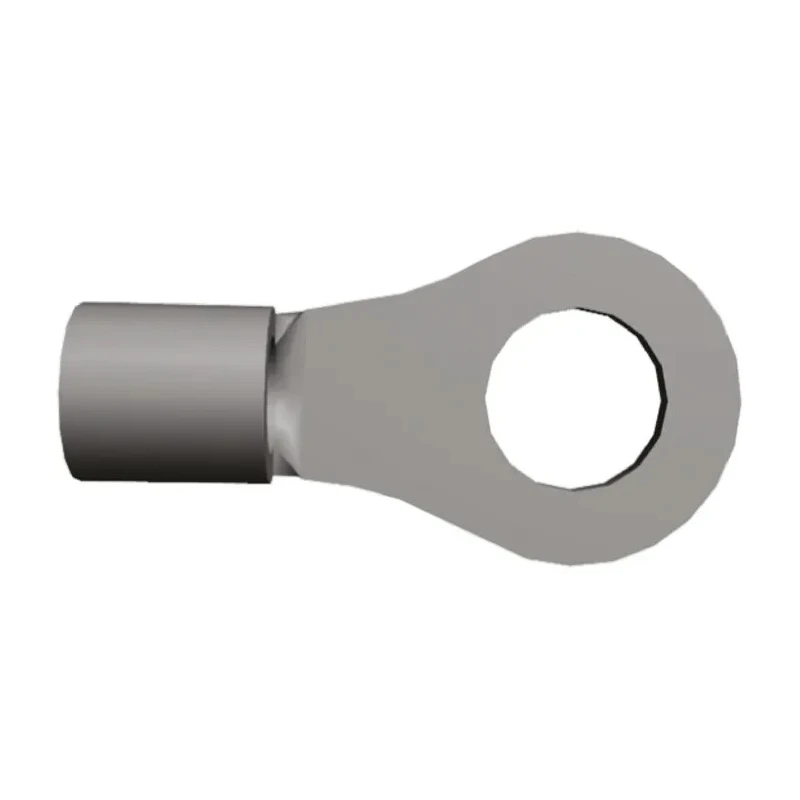

TE Connectivity Budget Uninsulated Ring Terminal M4 Stud Size 22 AWG 18 AWG 30692
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 30692 |
| Insulation | Uninsulated |
| Overall Length | 15.77mm |
| Contact Material | Copper |
| Series | Budget |
| Maximum Operating Temperature | 170°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Uninsulated design for direct connection applications.
- Copper contact material with tin plating for reliable conductivity.
- Outer ring diameter of 7.92 mm and inner ring diameter of 4.34 mm.
- Compatible with wire sizes ranging from 22 AWG (0.26 mm²) to 18 AWG (1.65 mm²).
- Overall length of 15.77 mm and thickness of 0.79 mm to ensure secure mechanical strength.
- Maximum operating temperature rating of 170°C for durability under heat.
- Series classified as Budget for cost-effective wiring solutions.
- Ideal for electrical, industrial, and HVAC wire terminations.
Product Description
TE Connectivity 30692 Budget Uninsulated Ring Terminal is designed for secure wire terminations on M4 studs. This component supports wire gauges from 22 AWG up to 18 AWG, offering versatility in electrical assembly and wiring.
The ring terminal features a copper contact core with tin plating to deliver excellent conductivity and corrosion resistance. Its uninsulated design allows easy and direct electrical connections, suitable for both industrial and commercial electrical applications.
Featuring a robust overall length of 15.77 mm, a ring outer diameter of 7.92 mm, and an inner diameter of 4.34 mm, this terminal provides optimal mechanical stability. The 0.79 mm thickness ensures durability during installation and operation.
Rated for maximum operating temperatures up to 170°C, it can withstand demanding environmental conditions typically encountered in HVAC, manufacturing, and electrical maintenance tasks.
Uninsulated for direct connectivity in wiring systems. Copper material with tin plating provides reliable signal and power transfer. Fits wires sized 22 AWG to 18 AWG for diverse wiring needs. Designed for attachment to M4 stud bolts.
Industrial-grade temperature tolerance up to 170°C. Compact size with exacting dimensions for precision fit. Budget series offering cost-effective performance. Applicable in electrical, industrial, and HVAC sectors.
This ring terminal is an essential component for technicians and engineers working in electrical wiring, providing a balance of affordability and dependable performance. Ensure secure and efficient cable terminations with TE Connectivity’s budget Ring Terminal model 30692.
Explore more high-quality electrical connectors and terminals by browsing the Electronics & Electricals section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature rating for this model is 170°C, making it suitable for demanding environmental conditions.
This terminal is compatible with wire sizes ranging from 22 AWG (0.26 mm²) to 18 AWG (1.65 mm²).
The outer ring diameter is 7.92 mm, while the inner ring diameter is 4.34 mm.
The overall length of this terminal is 15.77 mm, and it has a thickness of 0.79 mm.
The contact material of this terminal is copper, which is plated with tin for enhanced conductivity and corrosion resistance.
This model features an uninsulated design, allowing for direct electrical connections.
This ring terminal is designed for M4 stud size connections.
It is suitable for electrical, industrial, and HVAC wire terminations, providing versatility in various wiring needs.
This terminal is classified under the Budget series, which offers cost-effective wiring solutions.
The country of origin for this ring terminal is India.
The tin plating on the copper contact material enhances conductivity and provides corrosion resistance, ensuring reliable performance.
The 0.79 mm thickness ensures mechanical strength and durability during installation and operation.
