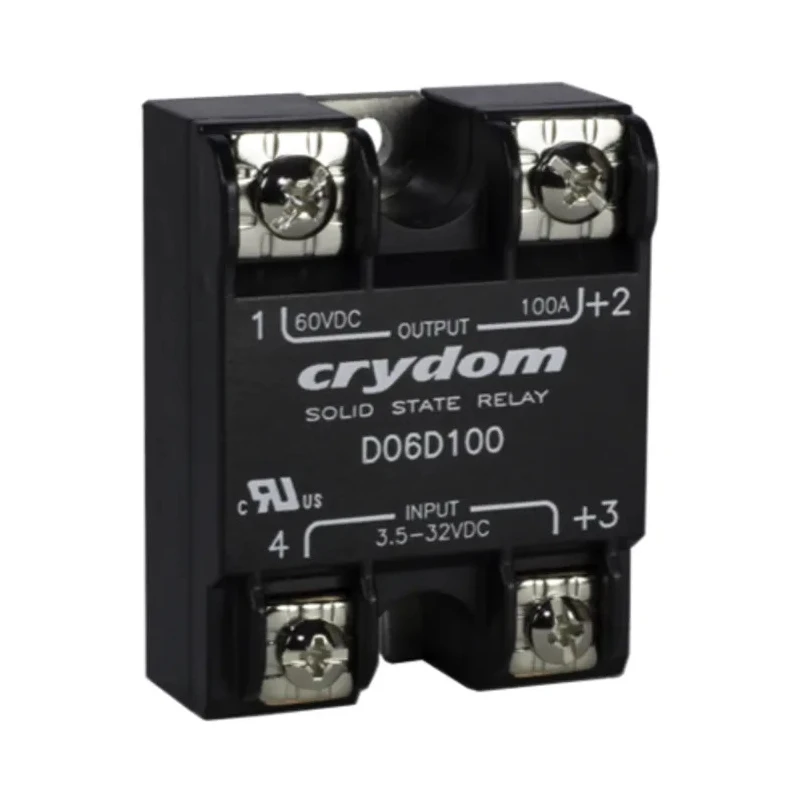

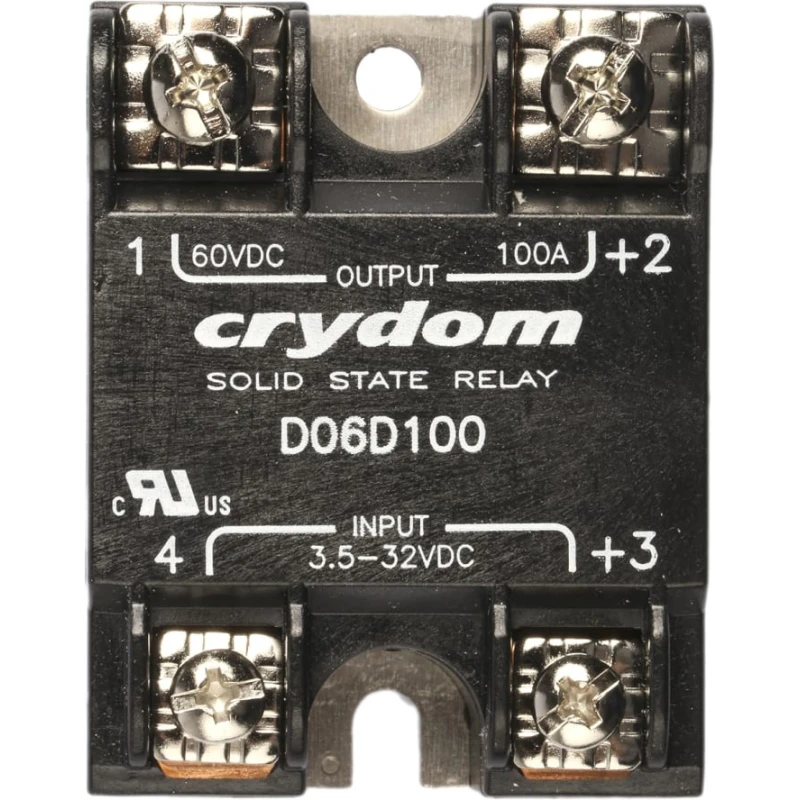

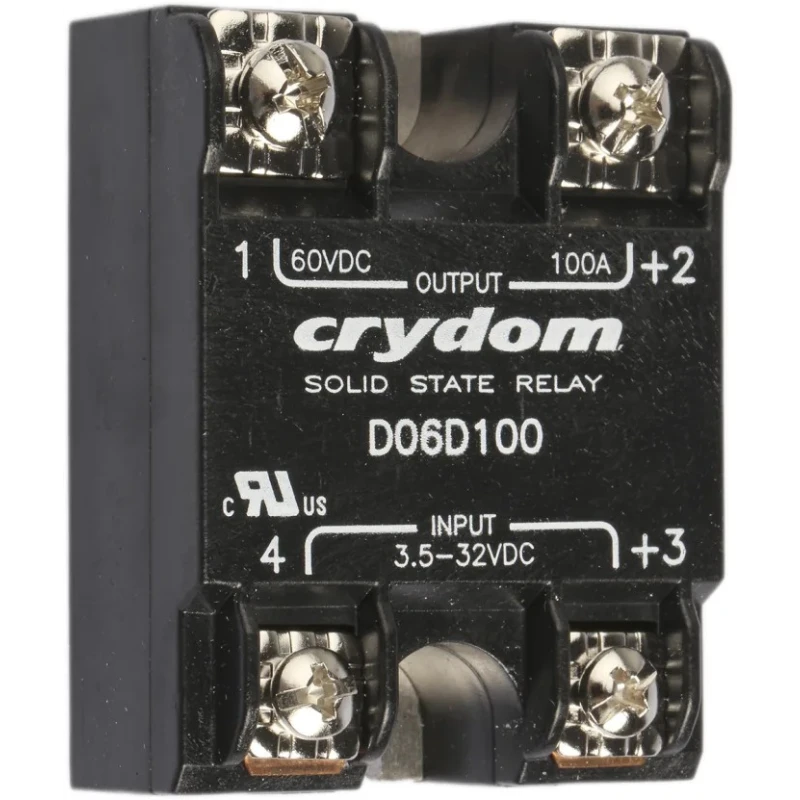

Crydom Solid State Relay Panel Mount 60 V dc Load 32V Control 100 A Load D06D100

The Crydom D06D100 solid state relay is designed for industrial and commercial high-current control applications. Featuring a 100 amp rated load current and capable of controlling DC loads up to 60 V, this relay is ideal for electrically demanding devices such as electric motors and precision measuring equipment. The panel mount form factor optimizes installation flexibility within control cabinets or automated systems. It uses zero cross switching technology to minimize electrical noise during load switching, enhancing system stability.

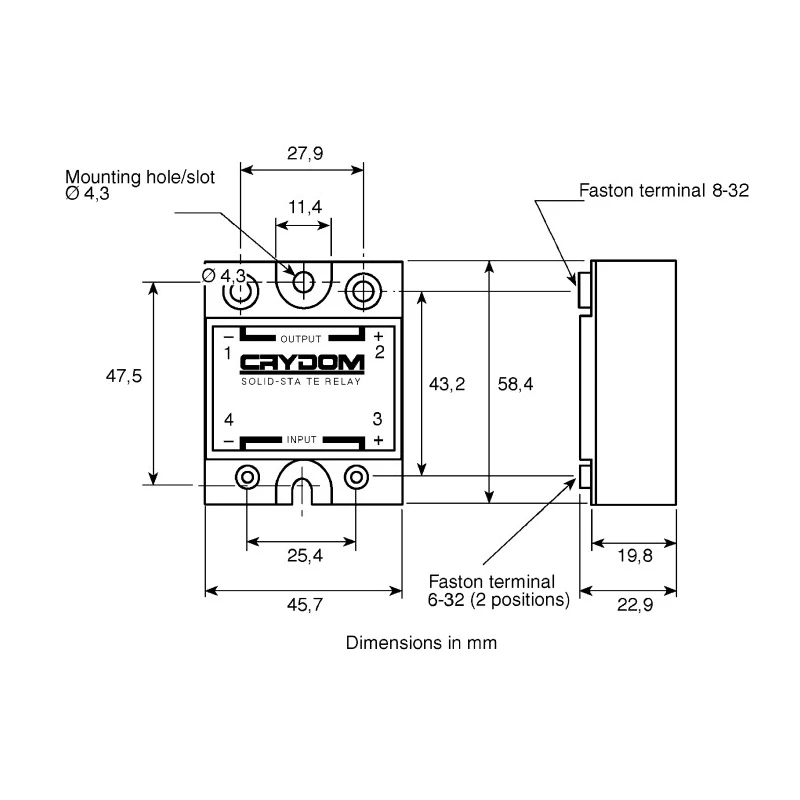

With screw terminals for secure wiring, the relay supports a control voltage range from 3.5 V dc minimum to 32 V maximum, ensuring broad compatibility. Its compact size of 58.4 mm length, 22.6 mm width, and 22.9 mm height allows use in restricted spaces while maintaining high performance. The low off-state leakage current of 0.3 mA contributes to energy savings during idle periods.

Built with flame retardant housing material, the D06D100 ensures enhanced safety and durability under electrical fault conditions. Operating reliably between -30°C and 80°C, it suits a variety of environmental conditions commonly found in manufacturing, automation, and electric motor control environments.

Applications include industrial automation systems, HVAC control, water treatment plant equipment, and other commercial electrical installation where precise, rapid switching of high-current DC loads is essential. Installation of an external heat sink is recommended to optimize thermal management during continuous operation.

Handles high current load up to 100 amperes safely and efficiently. Panel mount design allows convenient installation in control panels. Zero cross switching function reduces electrical noise and improves switching performance.

Wide operating temperature range from -30°C to 80°C enables reliable function in demanding environments. Compact dimensions facilitate fitting in tight spaces within electrical assemblies. Screw terminal type ensures secure and reliable electrical connections.

Low off-state leakage current minimizes energy consumption during standby. Flame-retardant housing enhances safety in case of electrical faults or fire. Capacitance of 8 pF reduces signal interference for clean operation.

Quick switching times with 100 μs turn-on and 150 μs turn-off for responsive control. Explore the comprehensive Crydom relay range and other Solid State Relay products under Electronics & Electricals at EnvMart for reliable, high-quality automation components.
