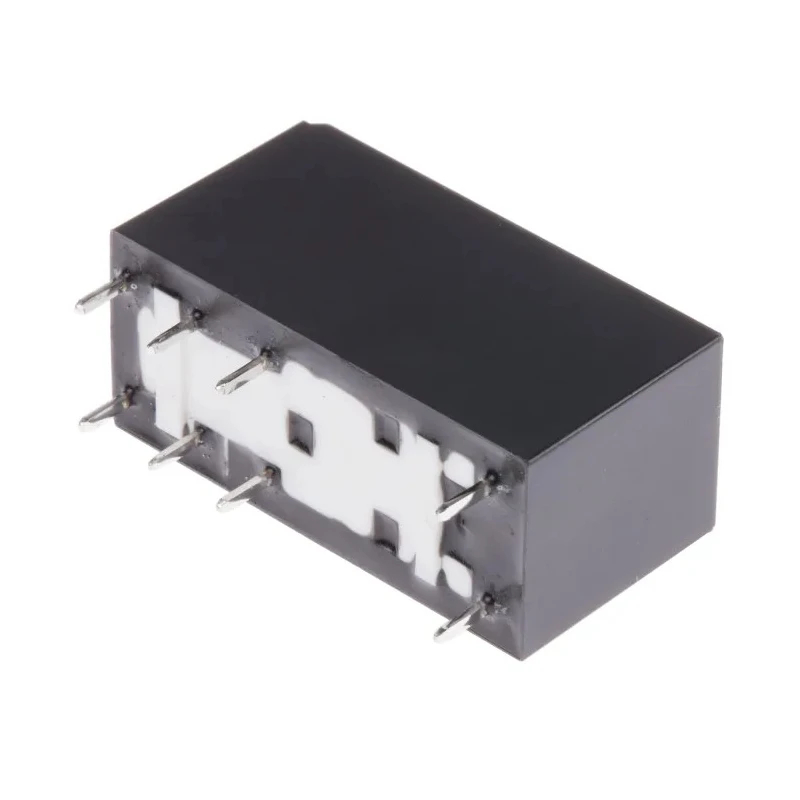

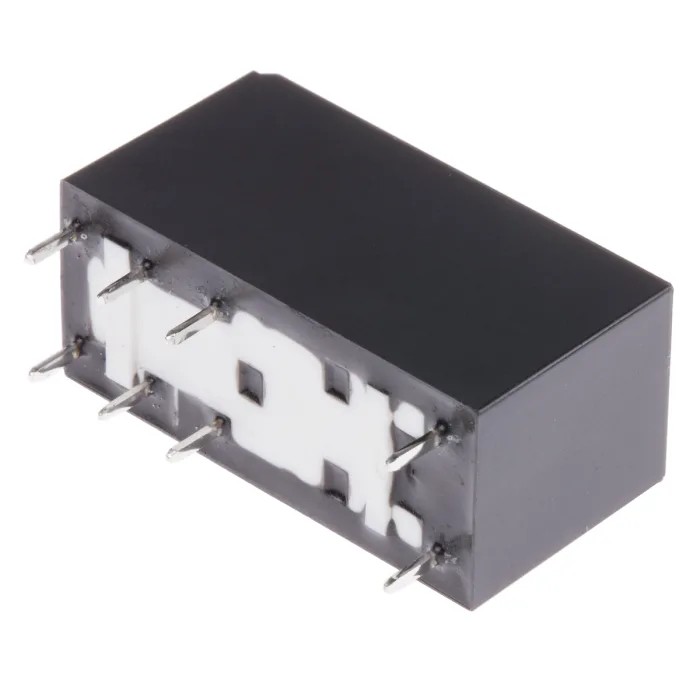

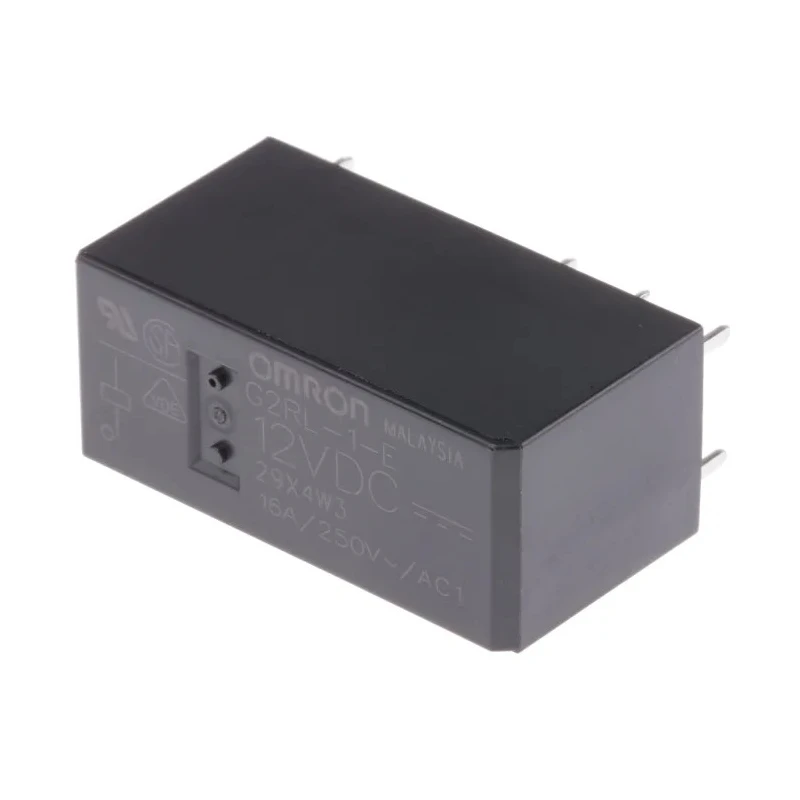

Omron PCB Power Relay 12V dc Coil 16A Switching Current SPDT G2RL-1-E DC12BYOMB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-1-E DC12BYOMB |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 300V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- Operates on a 12V dc coil voltage for efficient control.
- Single Pole Double Throw (SPDT) contact configuration for versatile switching.
- Capable of switching currents up to 16 amperes safely.
- Compact size with 15.7mm height, 12.7mm width, and 29mm length.
- Coil resistance of 360 ohms ensures stable operation.
- Suitable for PCB mounting with PCB pin terminals.
- Wide operating temperature range from -40°C to 85°C for durable performance.
- Constructed with silver alloy contact material for excellent conductivity.
Product Description
Omron G2RL-1-E DC12BYOMB is a highly reliable PCB Power Relay featuring a 12V dc coil and capable of switching currents up to 16A with a Single Pole Double Throw (SPDT) contact configuration. Its low-profile design with a height of 15.7mm, width of 12.7mm, and length of 29mm makes it suitable for compact electronic assemblies and PCB mounting applications.
The relay coil has a resistance of 360Ω and coil power rating of 400mW, ensuring efficient energy consumption and stable operation. Designed to operate across a temperature range of -40°C to 85°C, the G2RL series meets rigorous industrial and commercial demands.
Constructed with silver alloy contacts, it offers excellent conductivity and durability, maintaining a low contact resistance of 100 milliohms. The 10mm creepage and clearance distances enhance safety and reduce the risk of electrical tracking (CTI > 250). Certified to CSA and UL standards, this relay supports high safety and quality compliance.
This power relay is widely used in industrial automation, HVAC control systems, manufacturing equipment, and other electronic control applications that require reliable power switching and long service life.
Operates with a 12V dc coil voltage. Features a SPDT (Single Pole Double Throw) contact configuration. Switching current rated for 16A applications. Compact and low profile size suitable for PCB mounting. Meets safety certifications including CSA and UL.
Omron’s G2RL-1-E DC12BYOMB relay provides dependable, high-quality switching performance in a durable package. Browse our range of Power Relays at EnvMart for industrial-grade components designed to meet your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can switch currents up to 16A safely.
It operates on a 12V dc coil voltage.
The relay has a height of 15.7mm, a width of 12.7mm, and a length of 29mm.
It features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 360 ohms, ensuring stable operation.
It can operate within a temperature range of -40°C to 85°C.
The contacts are constructed from silver alloy, which provides excellent conductivity.
This model is certified to CSA and UL standards, ensuring compliance with safety regulations.
It is designed for PCB mounting with PCB pin terminals.
The contact resistance is rated at 100 milliohms.
It can switch up to 300V dc and 300V ac.
The coil power rating is 400mW, which contributes to its efficient energy consumption.
