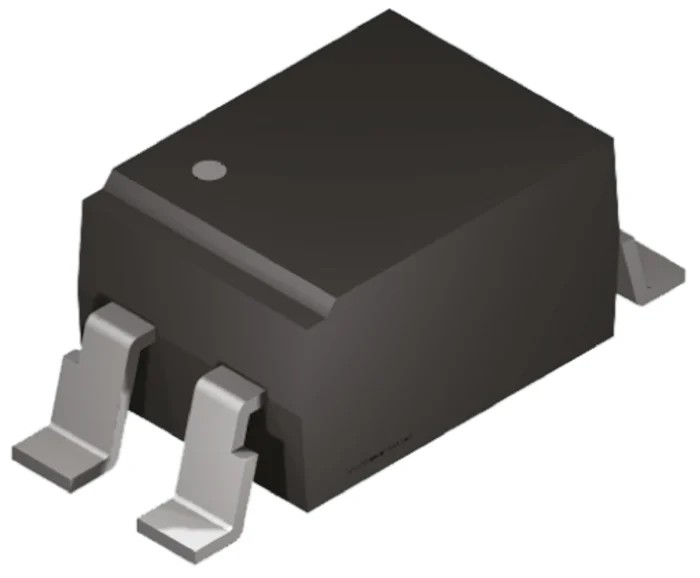

Vishay DC Input Optocoupler Surface Mount, 4-Pin PDIP, 1.6V Forward Voltage, 60mA Input Current VO615A-9X017T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VO615A-9X017T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VO |
| Maximum Operating Temperature | 110°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, EN |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 400% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 200% |
| Isolation Voltage | 5000V ac |
Key Features
- Maximum forward voltage of 1.6 V ensures efficient operation.
- Maximum input current rated at 60 mA for reliable signal input.
- High isolation voltage of 5000 V AC protects equipment from electrical shocks.
- Typical rise time of 3 microseconds provides fast signal response.
- Operating temperature range from -55°C to 110°C for durability.
- Surface mount PDIP package with 4 pins enables easy integration.
- Single-channel design for straightforward circuit applications.
- Tape and reel packaging supports automated assembly procedures.
Product Description
Vishay VO615A-9X017T is a DC input optocoupler featuring a surface mount 4-pin PDIP package and a maximum forward voltage of 1.6 V. This optocoupler is engineered for electrical isolation applications in industries such as industrial control systems, telecom equipment, office automation, and power supply units.
It offers a robust isolation voltage of 5000 V AC, protecting sensitive microprocessors and equipment from voltage spikes and electrical shocks. The device supports a maximum input current of 60 mA and provides fast switching with typical rise and fall times of 3 microseconds and 4.7 microseconds, respectively.
Vishay’s VO615A-9X017T operates reliably over a wide temperature range from -55°C to 110°C, ensuring durability in harsh environments. The single-channel phototransistor output helps in precise signal transfer with current transfer ratios from 200% minimum to 400% maximum.
The optocoupler comes in a surface mount PDIP package with four pins and is supplied in tape and reel packaging to facilitate high-volume automated manufacturing processes. This device is compliant with UL and EN standards, assuring quality and safety in demanding applications.
Common usage includes isolation in AC adapters, switch mode power supplies, programmable logic controllers, industrial automation, telecom systems, smart meters, and solar power equipment.
Vishay's VO series is renowned for providing effective isolation solutions with high voltage ratings and reliability. This product is a new condition item made in India, suitable for integration in electronics manufacturing and repair.
Explore more Vishay optocouplers and related electronic components in the Electronics Components category on EnvMart to find complementary products suited for your needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.6 V.
It has a maximum input current rating of 60 mA.
This optocoupler features a high isolation voltage of 5000 V AC.
The typical rise time is 3 microseconds, allowing for fast signal response.
It operates reliably over a temperature range from -55°C to 110°C.
This model features a single-channel design.
It is supplied in tape and reel packaging, which supports automated assembly processes.
The typical fall time is 4.7 microseconds.
It is compliant with UL and EN standards, ensuring quality and safety.
This optocoupler comes in a surface mount PDIP package with 4 pins.
The current transfer ratio ranges from a minimum of 200% to a maximum of 400%.
