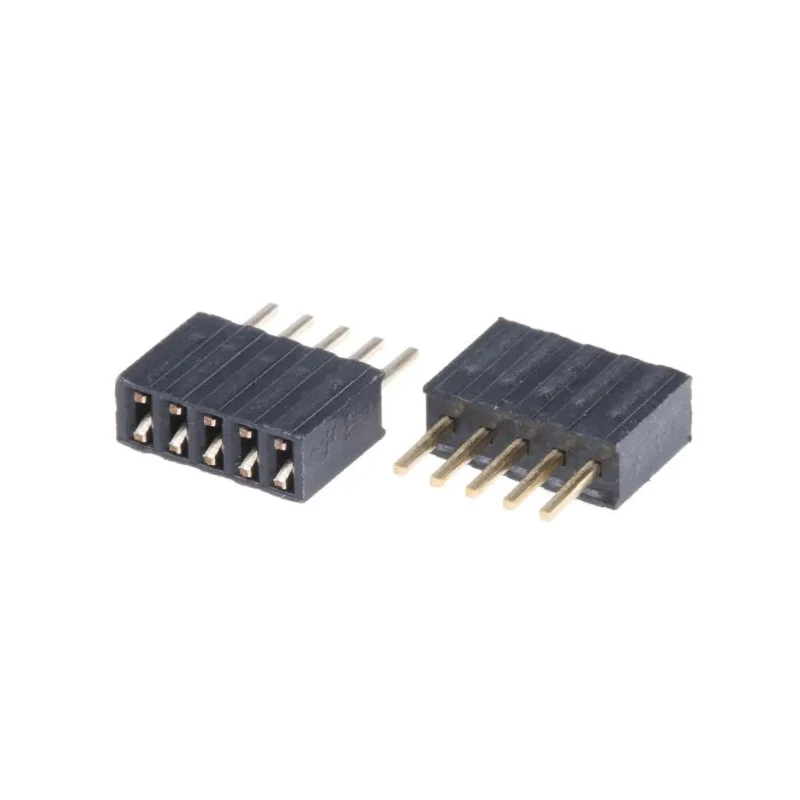

HARWIN M52 Series Straight Through Hole PCB Socket 5-Contact 1 Row 1.27 mm Pitch Solder M52-5000545
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M52-5000545 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M52 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with durable nylon housing ensuring insulation and robust mechanical strength.
- Features bronze female contacts plated with gold for reliable electrical connectivity and corrosion resistance.
- Supports a current rating of 12 A and withstands voltages up to 1 kV.
- Designed for through hole mounting with a straight orientation for ease of assembly.
- Operates reliably in extreme temperatures ranging from -40°C to 105°C.
- Meets no specific standards or approvals but built to quality power connector industry norms.
- Compatible with mating headers from M52 series and M50 series socket and pin headers for versatile application.
Product Description
HARWIN M52-5000545 Straight Through Hole PCB Socket is a 5-contact, single row connector with a precise 1.27 mm pitch, designed for board-to-board electronic applications requiring robust and reliable connectivity.
The socket employs a nylon housing that ensures electrical insulation and durability in demanding environments. Its female bronze contacts are plated with gold, significantly enhancing conductivity and providing corrosion resistance essential in industrial and electronic settings.
Rated for a current of 12 A and capable of handling voltages up to 1 kV, this PCB socket fits through hole mount designs with a straight orientation, allowing for easy PCB assembly and soldering.
Its wide operational temperature range from -40°C to 105°C makes it suitable for various industrial applications including power connectors, electronic circuit manufacturing, and board prototyping.
The product is designed for compatibility with the M52 series socket headers as well as with M50 series pin headers, enhancing the flexibility across connector systems in PCB design.
Durable nylon housing providing mechanical and electrical reliability. Gold-plated bronze female contacts for optimum conductivity and protection. High current and voltage ratings suitable for demanding electrical applications.
Through hole mount type for secure PCB assembly. Rated for low to high temperature operation between -40°C and 105°C. Compatible with various M50 and M52 series headers for versatile use. Ideal for industrial, electronics manufacturing, and laboratory applications.
This HARWIN M52 PCB socket represents a reliable solution for engineers and manufacturers seeking connectors delivering consistent performance in electronic assemblies. Explore the extensive range of PCB Sockets and connectors on EnvMart to find the perfect fit for your industrial and electronic connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12 A.
It can withstand voltages up to 1 kV.
The pitch size is 1.27 mm.
The housing is made of nylon, and the contacts are bronze plated with gold.
It operates reliably in temperatures ranging from -40°C to 105°C.
This socket features 5 contacts.
It is designed for through hole mounting.
It is compatible with M52 series socket headers and M50 series pin headers.
This model uses solder termination type.
The socket has a straight orientation for ease of assembly.
The contacts in this socket are female.
It does not meet any specific standards or approvals but is built to quality power connector industry norms.
