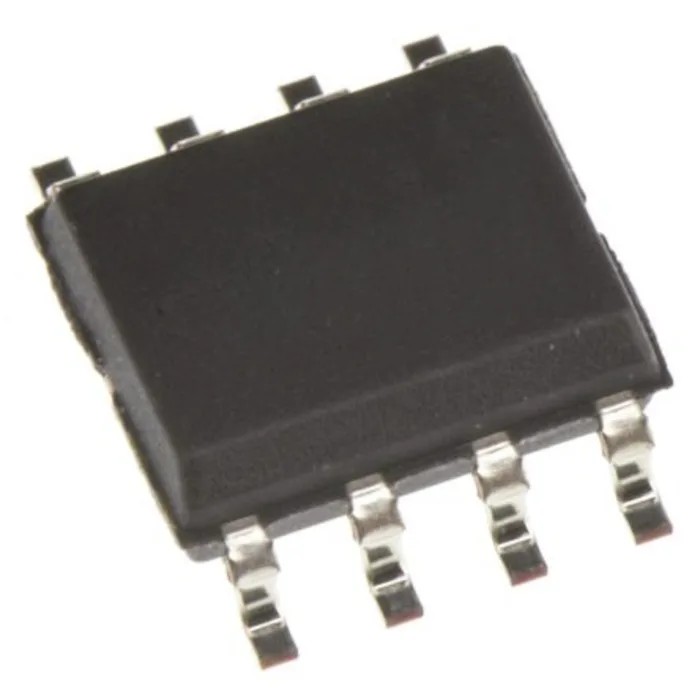

STMicroelectronics Operational Amplifier Dual Channel 12 MHz Gain Bandwidth Product SO-8 Surface Mount TS462CDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | TS462CDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TS46 |
| Operating Range | 2.7V to 10V |
| Maximum Operating Temperature | 70°C |
| Package Type | SO |
| Minimum Operating Temperature | -20°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 10V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 12MHz |
| Input Bias Current | 200 to 1000 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 4V/μs |
| Input Offset Current | 200 pA |
| Low distortion | 0.003% |
| Low noise level | 4nV/√Hz |
Key Features
- Dual channel operational amplifier optimized for low noise applications.
- Gain bandwidth product of 12 MHz ensuring high frequency operation.
- Surface-mount SO-8 package with 8 pins for compact PCB integration.
- Operating voltage range from 2.7 V to 10 V for versatile use cases.
- Low input offset voltage of 7 mV for precise amplification.
- Input bias current ranging between 200 to 1000 nA for stability.
- Wide operating temperature range from -20°C to 70°C for industrial environments.
- Slew rate of 4 V/μs for fast signal response.
Product Description
STMicroelectronics TS462CDT is a dual-channel operational amplifier featuring a gain bandwidth product of 12 MHz, supplied in an 8-pin SO surface mount package measuring 5 mm in length, 4 mm in width, and 1.5 mm in height. It operates over a supply voltage range of 2.7 V to 10 V, making it suitable for various low voltage applications in electronics.
This amplifier exhibits a low input offset voltage of 7 mV and an input bias current between 200 and 1000 nA, providing precision in signal amplification tasks. It features a slew rate of 4 V/µs allowing for quick signal transitions and maintains low noise level at 4 nV/√Hz and distortion of only 0.003% which enhances audio fidelity and measurement accuracy.
Designed to function reliably within a temperature range of -20°C to 70°C, the TS462CDT is well-suited for demanding industrial, communications, and consumer electronics use. Its SO-8 package promotes ease of surface mounting and compact design in PCB layouts.
Applications include audio instrumentation, signal conditioning, active filters, and general-purpose amplification where low noise and precision are critical. Dual operational amplifier channels integrated in one device.
Surface-mount packaging for automated assembly. High gain bandwidth supports high-frequency signals. Low offset voltage and input bias current minimize signal error. Wide operating temperature for industrial reliability.
Low noise and distortion enable high-quality audio and sensor applications. Explore more Operational Amplifiers from STMicroelectronics and related semiconductor components in EnvMart’s electronics section for precision and reliability in your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS462CDT has a gain bandwidth product of 12 MHz, which supports high-frequency operation.
It operates over a supply voltage range of 2.7 V to 10 V, making it suitable for various low voltage applications.
The input offset voltage is 7 mV, which contributes to its precision in signal amplification tasks.
This operational amplifier comes in an SO-8 package with dimensions of 5 mm in length, 4 mm in width, and 1.5 mm in height.
The slew rate is 4 V/μs, allowing for fast signal response and quick signal transitions.
The input bias current ranges from 200 to 1000 nA, providing stability in its operation.
It operates reliably within a temperature range of -20°C to 70°C, suitable for industrial environments.
The distortion level is only 0.003%, which enhances audio fidelity and measurement accuracy.
This model features dual operational amplifier channels integrated into one device.
The operational amplifier has a low noise level of 4 nV/√Hz, which is beneficial for low noise applications.
It is supplied in an 8-pin SO surface mount package, promoting ease of surface mounting and compact design.
This operational amplifier is suitable for applications such as audio instrumentation, signal conditioning, and active filters where low noise and precision are critical.
