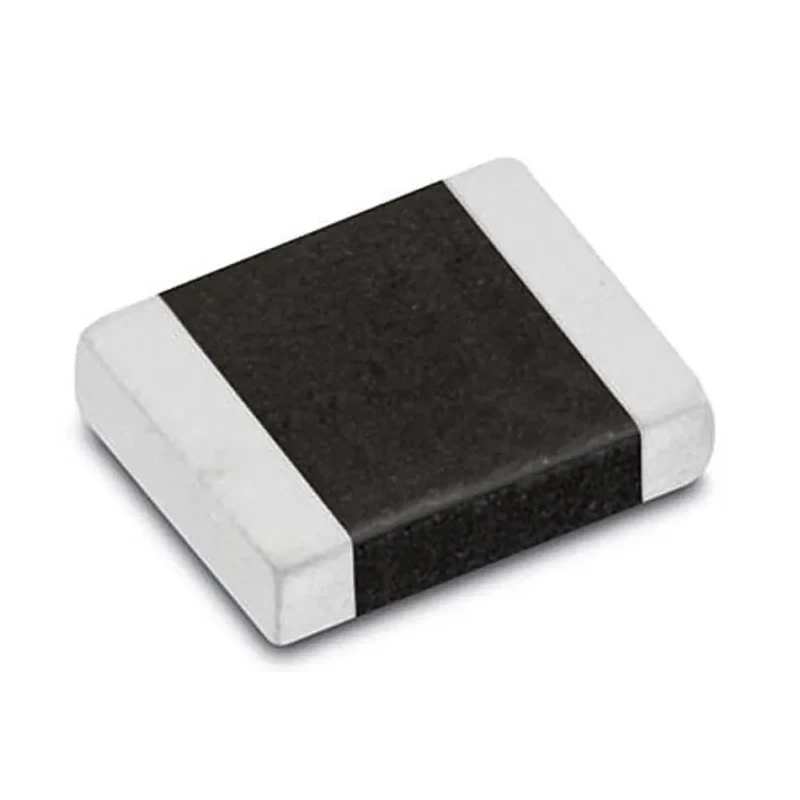

Wurth Elektronik 0603 Shielded Multilayer Surface Mount Power Chip Inductor 470 nH ±15 % 1.5A WE-PMCI 74479262147
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 1.6mm |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | WE-PMCI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 470nH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 1.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±15 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 160MHz |
| Inductor Construction | Moulded |
Key Features
- This power chip inductor has a compact 0603 low profile package case size measuring 1.6 mm length, 0.8 mm height, and 0.8 mm depth.
- The inductor is magnetically shielded with a ferrite core to prevent crosstalk and ensure stability.
- Designed for high current applications, it supports up to 1.5A DC current with a maximum DC resistance of 100 mΩ.
- It is moulded construction and complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
- The operating temperature range spans from -40°C to 125°C, making it suitable for robust industrial uses.
- Packaging is tape and reel format optimized for surface mount assembly.
Product Description
Wurth Elektronik 74479262147 0603 Shielded Multilayer Surface Mount Power Chip Inductor is engineered for efficient power management with a 470 nH inductance and ±15 % tolerance. This power inductor supports a maximum DC current of 1.5 amperes and features a compact shielded design for reduced electromagnetic interference.
The product is housed in a 0603 package case size, with precise dimensions of 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth. Its ferrite core provides stable inductance and magnetic shielding, ensuring reliable performance in demanding electronics.
Rated for operation between -40°C and 125°C, this component withstands diverse thermal environments. It features a solder termination style and is moulded for durability. Its low DC resistance of 100 mΩ minimizes power loss, improving circuit efficiency.
Compliant with international standards IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, this inductor is suitable for use in high current DC-DC converters, portable electronic devices, and low profile battery-powered equipment such as tablets and cameras.
This power chip inductor has a compact 0603 low profile package case size measuring 1.6 mm length, 0.8 mm height, and 0.8 mm depth. The inductor is magnetically shielded with a ferrite core to prevent crosstalk and ensure stability.
Designed for high current applications, it supports up to 1.5A DC current with low DC resistance. Moulded construction ensures durability and consistent electrical characteristics. Operating temperature range from -40°C to 125°C supports industrial and commercial applications.
Packaging in tape and reel format makes it suitable for automated surface mount technology assembly.
This surface mount power inductor is a reliable component for applications in industrial electronics, manufacturing machinery, automotive electronics, and consumer portable devices. It provides high efficiency and compact size for modern circuit designs.
Explore related Wurth Elektronik inductors and power components in the EnvMart catalog for comprehensive electronic design solutions.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 470 nH with a tolerance of ±15%.
It supports a maximum DC current of 1.5A.
The package dimensions are 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth.
The maximum DC resistance is 100 mΩ, which helps minimize power loss.
It operates within a temperature range of -40°C to 125°C.
It features a ferrite core, which provides magnetic shielding to prevent crosstalk.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
It is packaged in tape and reel format, optimized for surface mount technology assembly.
The termination style is solder, suitable for surface mounting.
The maximum self-resonant frequency is 160 MHz.
It is suitable for high current DC-DC converters, portable electronic devices, and low profile battery-powered equipment.
It features a moulded construction, which contributes to its durability and consistent electrical characteristics.
