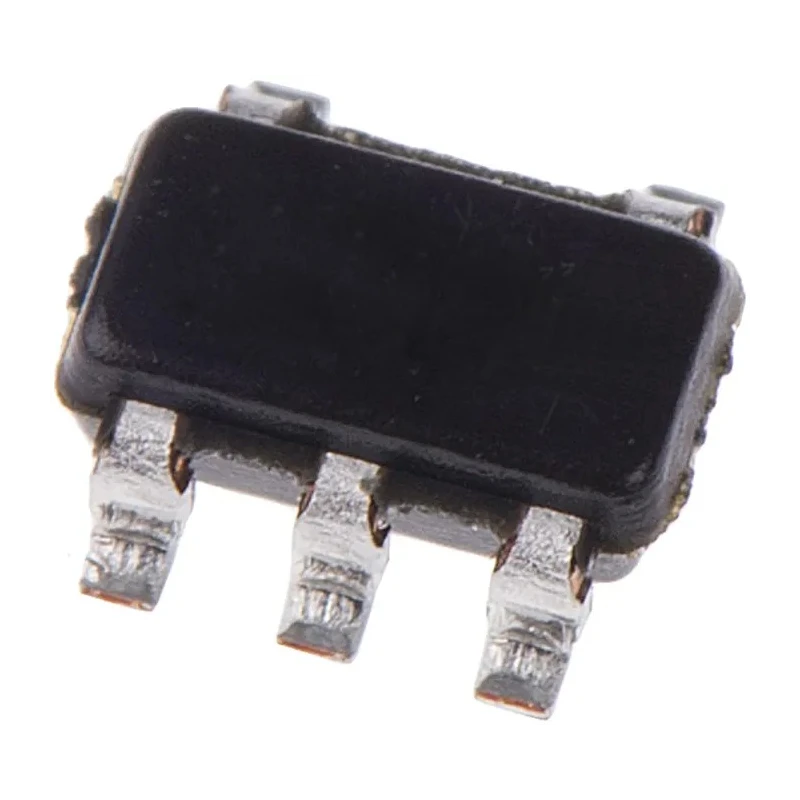

onsemi Operational Amplifier 8.5 MHz, 5-Pin SOT-23, Surface Mount, 2.2-32V NCS2005SN1T1G

The onsemi NCS2005SN1T1G is a low power operational amplifier designed for high performance in a compact 5-pin SOT-23 surface mount package. It features a wide power supply range from 2.2 V to 32 V enabling its use in diverse applications requiring rail-to-rail input and output operation.

This operational amplifier delivers a gain bandwidth product of 8.5 MHz typical and a slew rate of 2.8 V/μs, which ensures rapid response in active filtering, voltage buffering, and sensor interfacing use cases. Its low supply current of approximately 1.3 mA makes it suited for portable communication and battery-powered devices.

The device offers excellent input offset voltage performance at 6 mV maximum and input bias currents of 200 nA, maintaining signal integrity and precision. It supports operation over an extended temperature range from -40°C to 125°C, allowing deployment in industrial, automotive (non-automotive standard), and instrumentation environments.

Its rail-to-rail input voltage range exceeding supply rails and rail-to-rail output swing provide maximum dynamic range output capabilities with minimal distortion, even when driving large capacitive loads. The amplifier is capable of delivering typical output currents up to 20 mA, allowing it to interface effectively with various loads.

Physical dimensions are compact with a length of 3 mm, width of 1.5 mm, and height of 1 mm, making it ideal for space-constrained PCB designs. Wide power supply voltage range from 2.2 V to 32 V supports flexible power arrangements.

Typical gain bandwidth product of 8.5 MHz enables high-speed signal processing. Low typical supply current of 1.3 mA enhances energy efficiency. Rail-to-rail input/output achieves large dynamic signal range. Extended operating temperature range from -40°C to 125°C for reliability.

Compact 5-pin SOT-23 surface mount package dimensions 3 x 1.5 x 1 mm. Output current capability up to 20 mA for versatile applications. Applications include active filters, voltage buffers, instrumentation, microphone amplifiers, and ASIC input drivers.

This product is RoHS compliant and intended for new condition use. Industrial electronics, semiconductor, and instrumentation designers will find the NCS2005SN1T1G a reliable solution for precision analog signal amplification.
