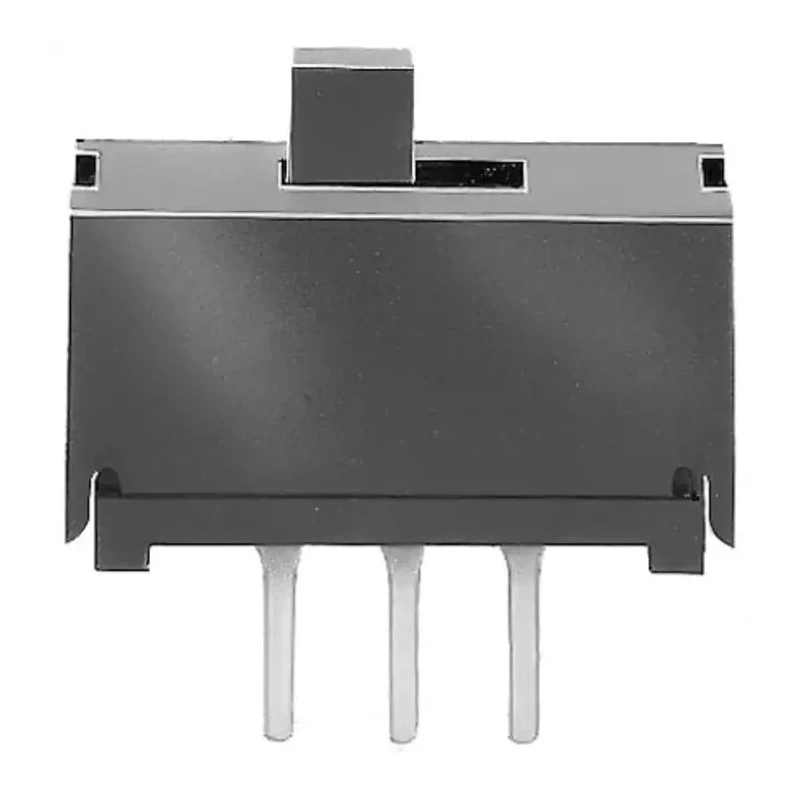

KNITTER-SWITCH PCB Slide Switch DPDT Latching 300mA Phosphor Bronze MFP 261 N
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | KNITTER-SWITCH |
| Length | 11mm |
| Model | MFP 261 N |
| Depth | 7.5mm |
| Width | 7.5mm |
| Mount Type | PCB |
| Series | MFP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -20°C |
| Terminal type | Terminal |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 300mA |
| Mechanical Life | 10000Operations |
| Actuator Material | Phosphor Bronze |
Key Features
- Rated current of 300mA ensures efficient switching in low power circuits.
- Latching switch operation provides stable on-on contact configuration without momentary positions.
- Constructed with phosphor bronze actuator material for robust mechanical life of 10,000 operations.
- Compact dimensions of 11mm length and 7.5mm width and depth suit tight PCB layouts.
- Non-illuminated design suitable for various industrial and electronic applications.
- Silver plated terminals and contacts enhance conductivity and reduce contact resistance.
- Designed and manufactured in Japan ensuring quality and compliance with RoHS standards.
- Operates reliably between temperatures -20°C to 85°C for diverse environments.
Product Description
KNITTER-SWITCH MFP 261 N is a high-quality miniature PCB slide switch featuring a double pole double throw (DPDT) latching contact configuration rated for 300mA current. It incorporates a phosphor bronze actuator offering superior mechanical durability with a life expectancy of 10,000 cycles. This latching slide switch operates with an on-on configuration, making it suitable for applications requiring stable switching with no transient off position. The compact body measures 11mm in length and 7.5mm in both width and depth, allowing easy integration on PCB layouts with limited space. The switch is equipped with silver plated terminals and contacts to ensure reliable electrical connectivity and reduced contact resistance.
Engineered for a wide operating temperature range from -20°C to 85°C, it can be employed in various industrial electronics, automation systems, and control devices.The non-illuminated design fits seamlessly in applications where indicator lights are not required. Manufactured in Japan, the product complies with RoHS standards, assuring environmental and quality compliance. The phosphor bronze actuator material enhances the mechanical strength while maintaining smooth operation.
300mA rated contact current for low power circuit switching. DPDT and on-on contact configuration with latching operation. Silver plated contacts for optimal conductivity. Compact footprint: 11mm length x 7.5mm width x 7.5mm depth.
Durable mechanical life of 10,000 switching cycles. Operates from -20°C to 85°C ambient temperature. RoHS compliant and manufactured in Japan.
This slide switch is ideal for industrial, automation, electronic manufacturing, and electrical control applications demanding reliable latching switching on printed circuit boards. Explore similar high-performance switches in the PCB Slide Switch category on EnvMart for diverse technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current for this model is 300mA, making it suitable for efficient switching in low power circuits.
It features a double pole double throw (DPDT) contact configuration, which allows for versatile switching options.
This unit operates reliably within a temperature range of -20°C to 85°C, accommodating various environmental conditions.
The mechanical life expectancy of this slide switch is 10,000 operations, ensuring durability for repeated use.
The dimensions of this switch are 11mm in length, 7.5mm in width, and 7.5mm in depth, making it compact for PCB layouts.
It is equipped with silver plated terminals, which enhance conductivity and reduce contact resistance.
This unit features a latching switch operation, providing stable on-on contact configuration without momentary positions.
Yes, the KNITTER-SWITCH MFP 261 N is RoHS compliant, ensuring it meets environmental standards.
It is suitable for various industrial electronics, automation systems, and control devices that require reliable latching switching.
The actuator material is phosphor bronze, which contributes to the mechanical durability of the switch.
The contact DC voltage rating for this switch is 30V dc, making it suitable for low voltage applications.
This model is designed for PCB mounting, allowing for easy integration into printed circuit boards.
