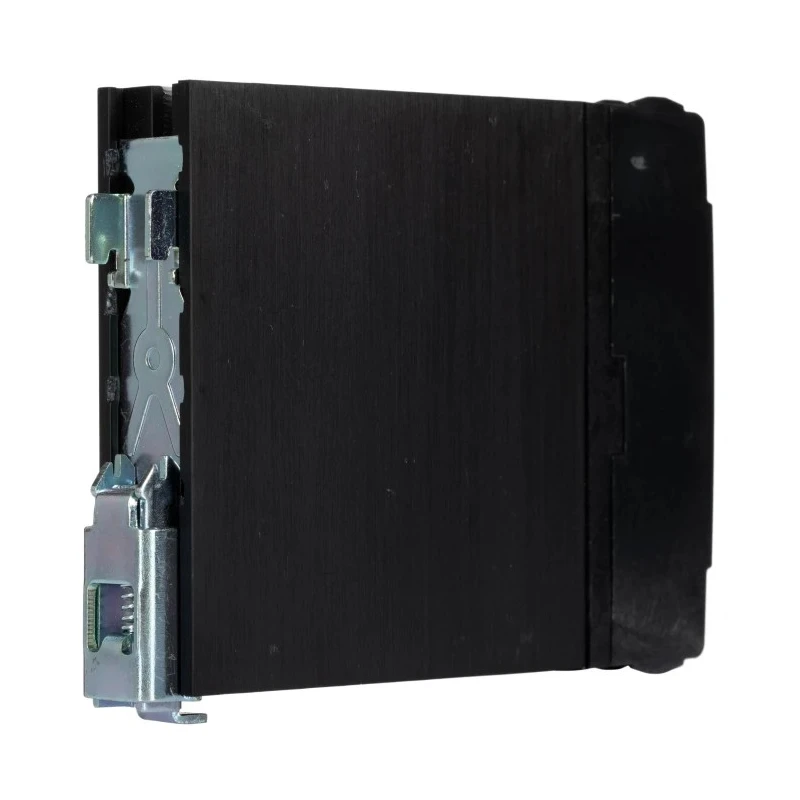

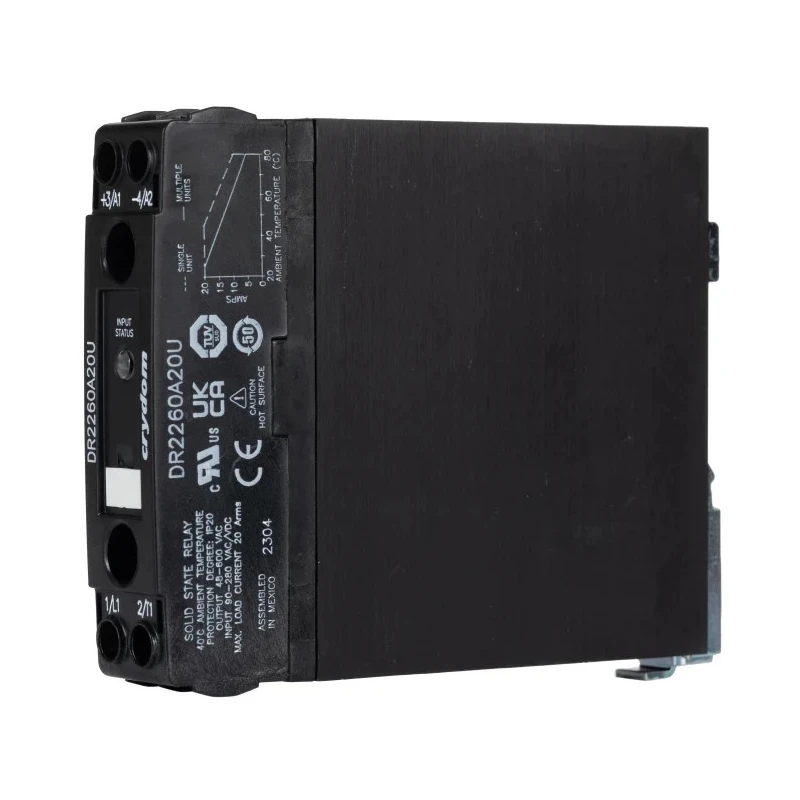

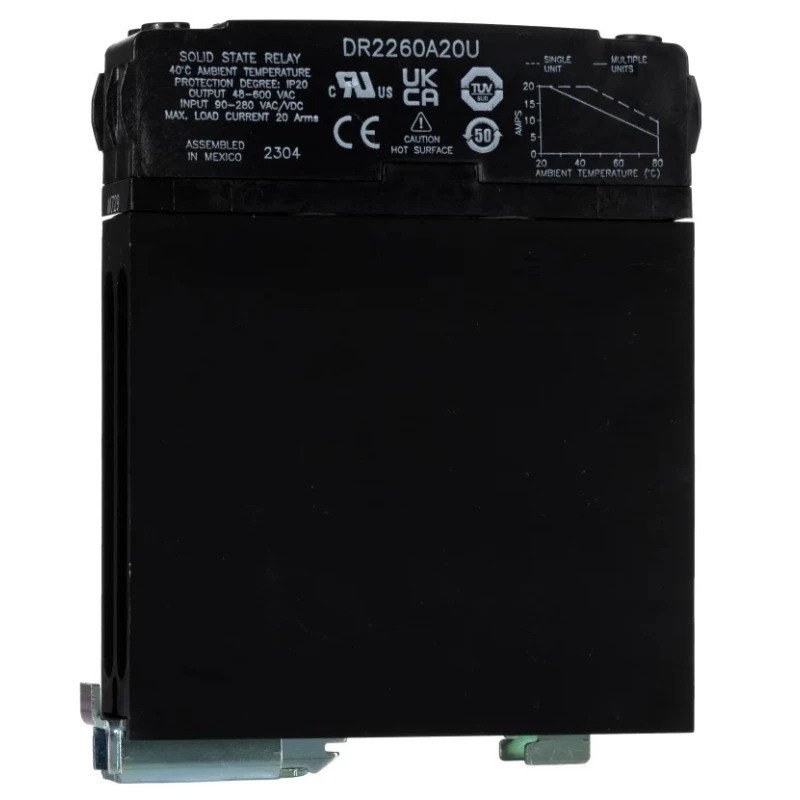

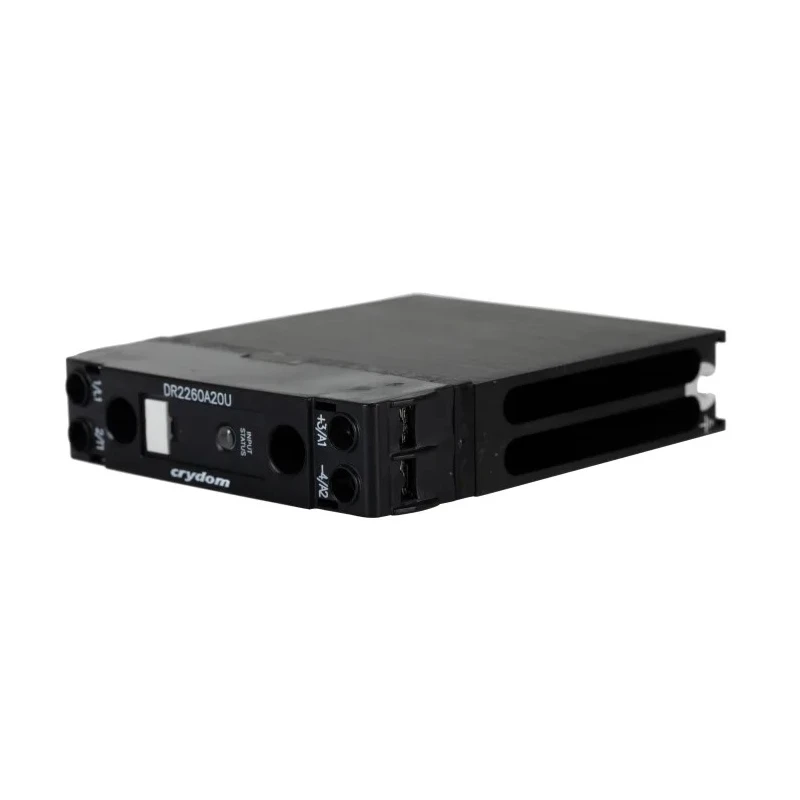

Crydom DR22 Series Solid State Relay, 20 A Load, DIN Rail Mount, 600 Vrms Load, 280V ac/dc Control DR22

The Crydom DR22 Series Solid State Relay model DR22 is engineered for industrial and automation applications, providing reliable switching for electrical loads up to 20 amperes. Its DIN rail mounting capability ensures streamlined installation in control panels and machinery setups. The relay supports a load voltage of up to 600 Vrms with a minimum load voltage threshold of 48 Vrms, enabling efficient control of AC and DC loads.

This relay is designed to operate with control signals ranging from 90V to 280V AC or DC, making it versatile for various control circuit configurations. The MOSFET output type enhances switching durability and performance by eliminating mechanical wear components. Additionally, the zero voltage switching function minimizes electromagnetic interference and prolongs relay lifespan.

The device includes a screw terminal connection type to maintain robust and secure electrical contacts. Its IP20 rating offers protection against accidental contact with live parts, ensuring safe operation and handling. This relay can function reliably within an ambient temperature range of -40°C to 80°C, establishing suitability for challenging industrial environments.

Measuring 93.2 mm in height, 22.5 mm in length, and 116 mm in width, the compact size is optimized for efficient space utilization in DIN rail assemblies. The 4kVrms dielectric strength and 8pF input/output capacitance guarantee safety and signal integrity in demanding electrical scenarios. Crydom DR22 Series relay is suitable for motor control, lighting, and automation system applications.

With certifications including CE and RoHS, this solid state relay aligns with industry standards and environmental compliance. The green LED status indicator facilitates easy monitoring of relay operation. Users can confidently employ this unit in industrial automation, electrical control panels, and manufacturing systems requiring high-quality and maintenance-free switching components.

Explore the Crydom range and other reliable industrial Solid State Relays available at EnvMart for your automation and control needs. Supports a maximum load current of 20 amperes. Designed for DIN rail mounting for easy installation.

Compatible with load voltages up to 600 Vrms. Control voltage range from 90V to 280V AC/DC. Utilizes MOSFET output type for robust switching performance. Rated with an IP20 finger-safe protection level. Operating temperature range from -40°C to 80°C.

Features zero voltage switching to reduce electrical noise. Equipped with screw terminal types for secure connections. Compact dimensions of 93.2 mm height, 22.5 mm length, and 116 mm width. Browse more solid state and control relays at EnvMart for industrial automation and electrical engineering applications.
