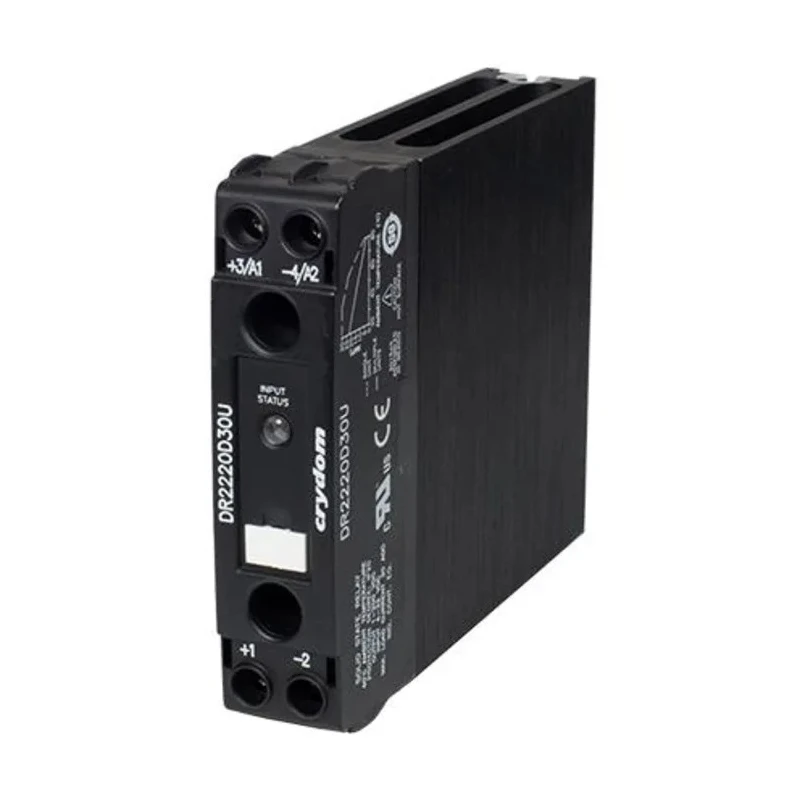

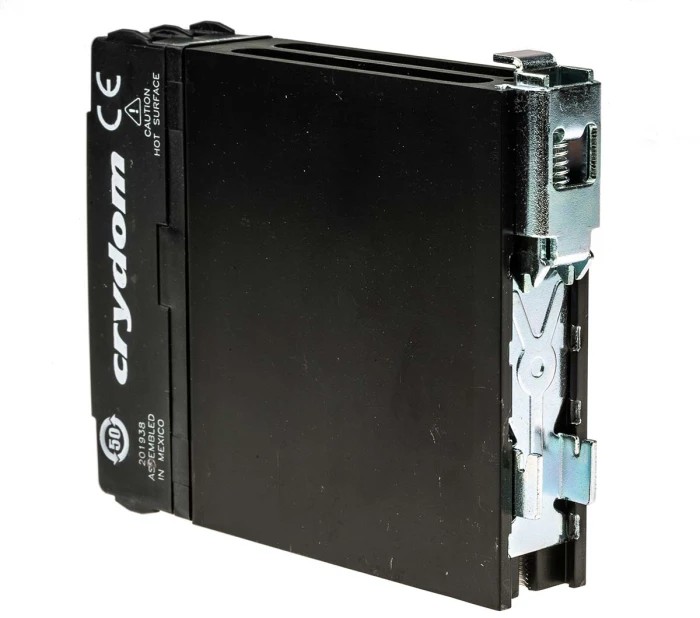

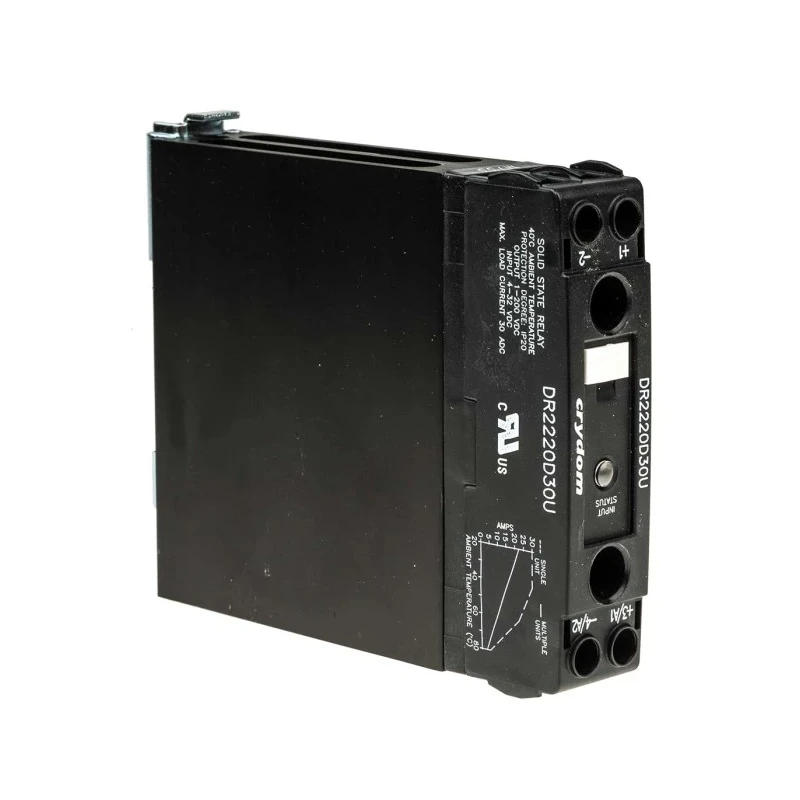

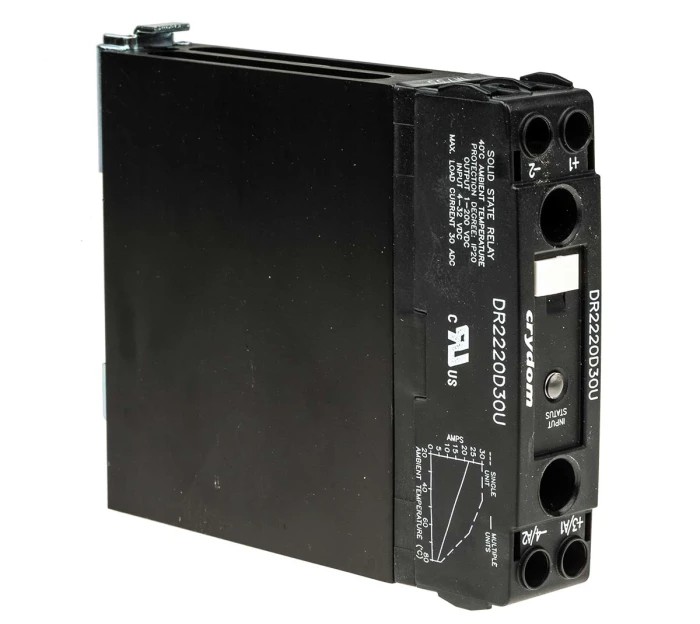

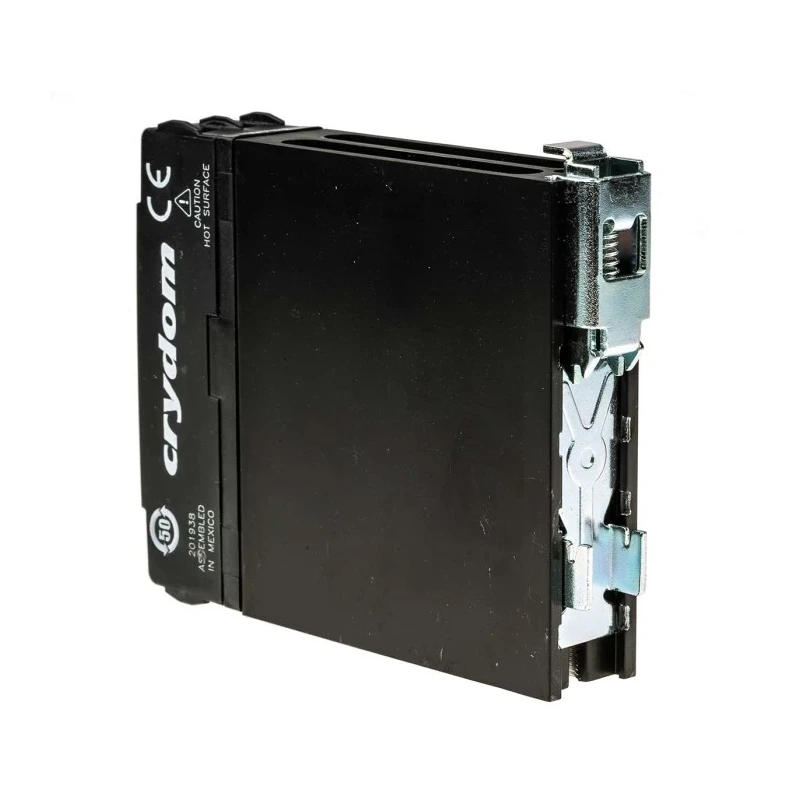

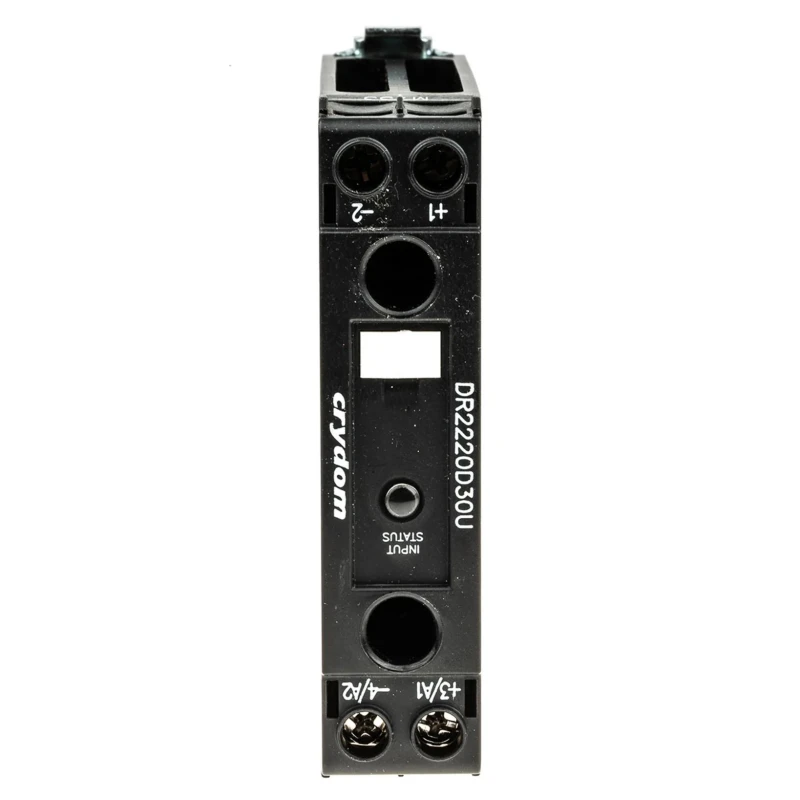

Crydom Solid State Relay DR22 Series, 30 A Load Current, 200 V DC Load Voltage, DIN Rail Mount DR22
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 93.2mm |
| Length | 22.5mm |
| Model | DR22 |
| IP Rating | IP20 |
| Width | 116mm |
| Mount Type | DIN Rail |
| Output type | MOSFET |
| Series | DR22 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 30A |
| Standards/Approvals | RoHS, CE |
| Maximum Load Voltage | 200V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.2mA |
Key Features
- Equipped with MOSFET output type ensuring high efficiency and durability.
- Supports zero voltage switching to reduce electrical noise and enhance system stability.
- Wide operating temperature range from -30°C to 80°C for use in demanding environments.
- Features self-extinguishing housing for enhanced safety during operation.
- Integrated LED indicator for clear status monitoring.
- Compact dimensions of 93.2 mm height, 116 mm width, and 22.5 mm length for easy installation.
- IP20 rated to provide protection against solid objects and limited access.
- Built with screw terminal type for secure electrical connections.
Product Description
Crydom DR22 Series Solid State Relay DR22 provides industrial-grade switching with a maximum load current of 30 A and a DC load voltage up to 200 V. Mounted easily on DIN rails, this relay features a MOSFET output for efficient signal conversion from electrical to optical, ensuring rapid and reliable operation over extended periods.
Optimized for challenging environments, it operates safely within a temperature range of -30°C to 80°C, supported by a self-extinguishing housing that enhances fire safety. The relay includes an integrated heatsink to maintain optimum thermal conditions and an LED indicator that allows convenient visual status checks.
Its zero voltage switching function minimizes electrical noise and reduces wear on the device, contributing to a long operational life without mechanical parts. The solid-state design removes risks associated with mechanical wear and offers fast turn-on and turn-off times, ideal for controlling robotics, medical instruments, and automation equipment.
Installation is simplified with a screw terminal configuration and compact dimensions (93.2 mm height, 116 mm width, 22.5 mm length). This device is RoHS and CE compliant, originating from Mexico, making it suitable for global industrial and manufacturing uses including automation systems, control panels, and power management.
Equipped with MOSFET output type ensuring high efficiency and durability. Supports zero voltage switching to reduce electrical noise and enhance system stability. Wide operating temperature range from -30°C to 80°C for use in demanding environments.
Features self-extinguishing housing for enhanced safety during operation. Integrated LED indicator for clear status monitoring. Compact and easy-to-install with DIN rail mounting and screw terminals. RoHS and CE standards compliance assures quality and safety.
Explore the range of Crydom Solid State Relays and other relay solutions in our Electronics & Electricals category at EnvMart for reliable control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 30 A.
This solid state relay supports a load voltage range up to 200 V DC.
It features a MOSFET output type for efficient signal conversion.
The operating temperature range for the DR22 is from -30°C to 80°C.
This model is designed for DIN rail mounting, making installation straightforward.
It is equipped with screw terminals for secure electrical connections.
Yes, it features a self-extinguishing housing for enhanced safety during operation.
The relay has an IP20 rating, providing protection against solid objects and limited access.
The minimum control voltage required for this relay is 4 V DC.
It supports zero voltage switching, which helps reduce electrical noise.
This model is RoHS and CE compliant, ensuring it meets specific safety and environmental standards.
The dimensions of this relay are 93.2 mm in height, 116 mm in width, and 22.5 mm in length.
