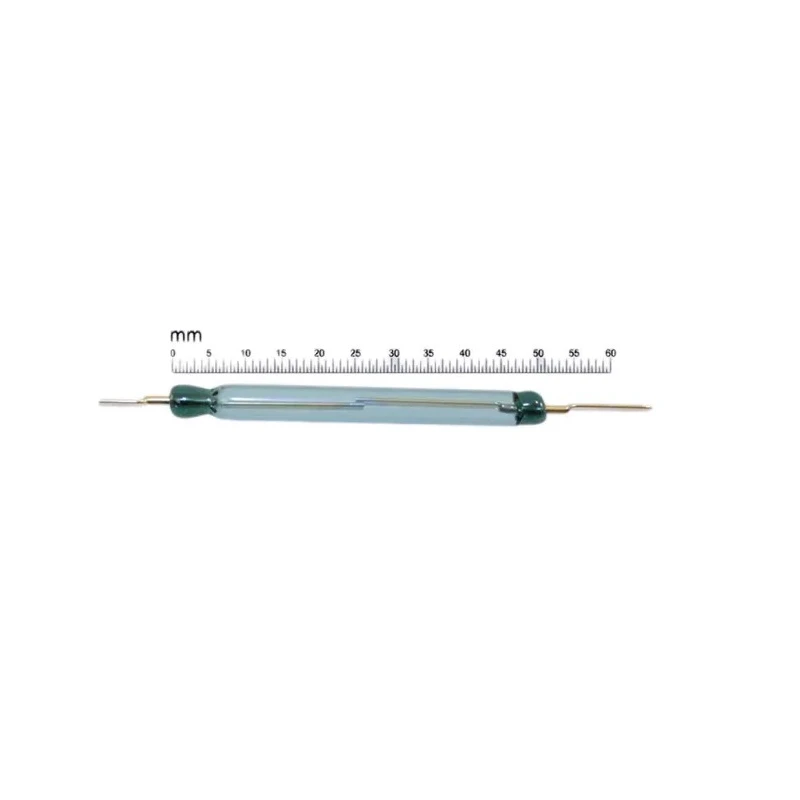

Assemtech SPNO PCB Reed Switch 3 A 1500 V GC1513 (70-80AT)

Assemtech GC1513 (70-80AT) SPNO PCB Reed Switch is engineered for industrial, automation, and electrical applications requiring precise and reliable switching capabilities. This reed switch features a single pole, single throw normally open configuration and is hermetically sealed within a gas-filled glass envelope to ensure long-term protection against environmental factors.

The rhodium-plated contacts provide excellent conductivity with a contact resistance of 100 mΩ, making it suitable for sensitive electronic circuits. Its maximum switching current is rated at 3 A, handling up to 120 W switching power and a maximum voltage of 1500 V. Operating temperature ranges from -40°C to 125°C cater to challenging industrial environments.

Designed for PCB mounting with wire terminals, this reed switch offers fast response with a maximum release time of 0.2 ms and an operating time including bounce of 0.5 ms. The AT value range of 45 to 60 AT ensures reliable magnetic actuation, making it compatible with a variety of magnets and coils.

With a compact design of 5.4 mm width and 52 mm length, it fits easily in compact assemblies. The device conforms to ISO standards and is fabricated in Belgium to ensure high quality and consistency.

This Reed Switch is ideal for use in industrial tools, automation systems, HVAC, manufacturing equipment, and electrical assemblies where precise switching and durability are required. Mechanical life expectancy extends to 100 million operations, supporting long-term reliability in demanding settings.

Single pole, single throw normally open contact configuration. Hermetically sealed in a gas-filled glass envelope. Rhodium-plated contacts for low resistance. Operating temperature range from -40°C to 125°C. PCB mount with wire terminals for easy installation.

Fast operating and release times (0.5 ms and 0.2 ms respectively). AT value sensitivity range between 45 to 60 AT. Compact dimensions: 5.4 mm width and 52 mm length. ISO compliant and made in Belgium. Mechanical life rated at 10^8 operations.
