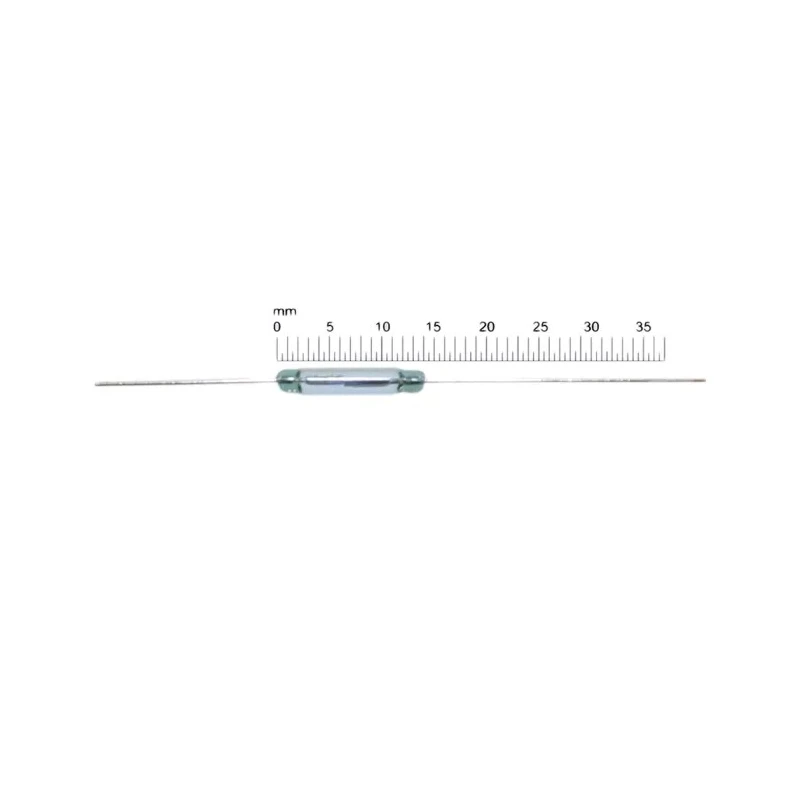

Assemtech SPDT PCB Reed Switch 400 mA 175 V RI-90 Kit

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPDT PCB Reed Switch 400 mA 175 V RI-90 Kit

Name: Assemtech SPDT PCB Reed Switch 400 mA 175 V RI-90 Kit
Brand: Assemtech
SKU: 387443
Price: 939.85 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Belgium
Brand	Assemtech
Length	14.3mm
Model	RI-90 Kit
Width	2.54mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	400mA
Maximum Operating Temperature	125°C
Contact Configuration	SPDT
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	2Ω
Maximum Switching Power	5W
Standards/Approvals	ISO
Maximum Switching Voltage	175V
Maximum Release Time	1ms
Operating Time Including Bounce	1ms
AT Value Range	30 to 35 AT

Key Features

Features single pole double throw (SPDT) contact configuration.
Maximum switching current of 400 mA and voltage of 175 V.
Contacts are ruthenium plated on gold for reliable conductivity.
Maximum switching power is 5 watts with low contact resistance of 2 ohms.
Operating temperature range from -55°C to 125°C suitable for harsh environments.
Terminals are wire type and mounting is designed for PCB applications.
Mechanical life rated at 100 million operations ensures durability.
Kit includes a selection of sensitivity levels for design stage testing.

Product Description

Assemtech RI-90 Kit is a SPDT PCB Reed Switch rated for 400 mA current and 175 V voltage, designed for reliable operation in electronic switching applications. This kit contains multiple reed switch variants with different sensitivity levels to aid in prototyping and testing, reducing waste and cost during design.

The reed switches are hermetically sealed in a gas-filled glass envelope, ensuring durability and protection against contaminants. The contacts are plated with ruthenium on gold, providing excellent electrical performance with low contact resistance of 2 ohms.

Operating parameters include a maximum switching power of 5 watts and a fast maximum release time of 1 ms, which minimizes bounce and increases switching accuracy. These switches operate reliably within temperatures ranging from -55°C to 125°C, making them suitable for industrial, electronics manufacturing, and automation environments.

The switches are intended for PCB mounting and feature wire terminals for easy integration. They are compliant with ISO standards and have a mechanical life expectancy of 10⁸ operations, supporting long-term use in demanding applications.

Hermetically sealed reed switches with ruthenium-gold plated contacts. SPDT contact configuration with form A (normally open) and form C options available. Maximum electrical ratings: 400 mA, 175 V, 5 W switching power. Fast switching times and low contact resistance for reliable signal integrity.

Temperature range suitable for harsh industrial environments (-55°C to 125°C). Kit provides a variety of sensitivity levels for design flexibility. Intended for PCB mount applications with wire terminal type. Compliant with ISO standards for quality assurance.

Manufactured in Belgium, ensuring high production standards.

This reed switch kit is especially useful for industrial automation, electrical switching, instrumentation, and electronic manufacturing sectors. It allows engineers to evaluate different sensitivities and select the optimal reed switch for magnetic actuation systems, proximity sensors, and control circuits.
