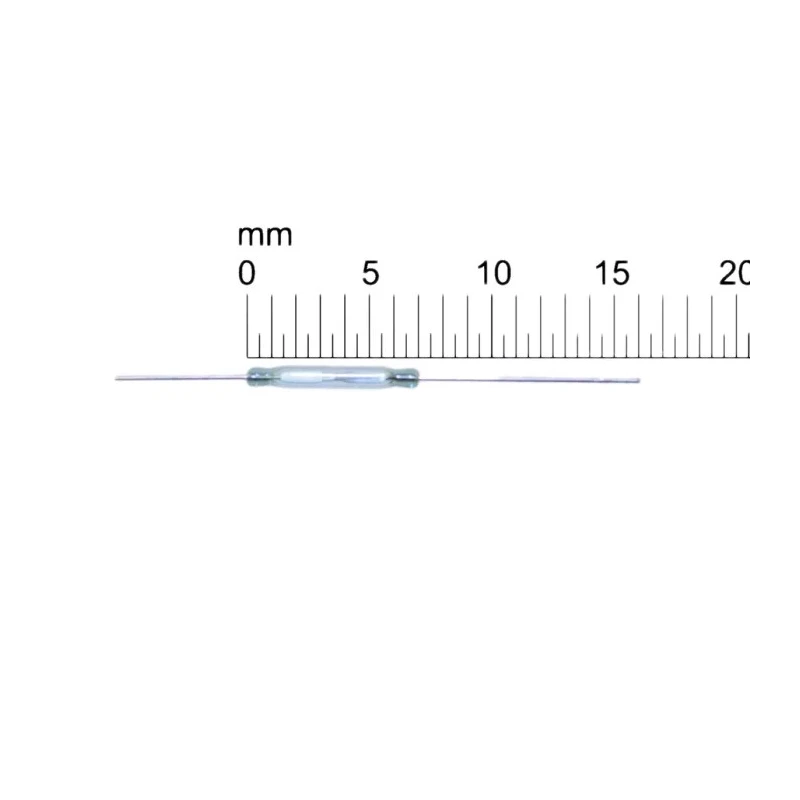

Assemtech SPST-NO PCB Reed Switch 500 mA 170 V RI-70B

Assemtech RI-70B SPST-NO PCB Reed Switch is a high-quality switching component designed for precise control in electronic applications. With a maximum switching current of 500 mA and voltage rating of 170 V, it operates reliably under demanding electrical conditions.

This reed switch features a single pole single throw normally open (SPST-NO) contact configuration, making it suitable for various switching purposes on printed circuit boards. The contact material is ruthenium plated on gold, ensuring low contact resistance of 2 ohms for optimal electrical performance and long mechanical life of up to 108 operations.

The device is hermetically sealed within a gas-filled glass envelope to protect against environmental factors, enhancing durability. It supports fast switching with a maximum release time of 0.04 ms and an operating time including bounce of 0.15 ms, suitable for precision timing applications. Its AT value range of 10 to 15 AT allows for sensitivity adjustment to suitable magnets, providing flexible usage scenarios.

The reed switch is equipped with wire terminals and is designed for PCB mounting, facilitating easy integration into electronic devices and industrial control systems. It operates efficiently across a broad temperature range from -55°C to 125°C, making it reliable for industrial, automation, and laboratory equipment applications.

Key industries benefiting from this switch include electronics manufacturing, automation control, HVAC systems, and precision instrumentation. The compact dimensions of 1.8 mm width and 7 mm length enable installation in space-constrained environments.

Single pole single throw normally open contact configuration. Maximum switching current: 500 mA, voltage: 170 V, power: 10 W. Ruthenium on gold contact material for low resistance and durability. Hermetically sealed in gas-filled glass for environmental protection.

Operating temperature range from -55°C to 125°C. Wire terminal and PCB mount type for easy integration. Fast electrical switching with release time of 0.04 ms and bounce time of 0.15 ms. Compact size: 1.8 mm width, 7 mm length for space-saving application.

This Assemtech RI-series reed switch is manufactured in the Netherlands and conforms to ISO standards, ensuring quality and reliability. It is ideal for replacing or specifying components in industrial, laboratory, and automation contexts. To explore more Reed Switches and related components, browse the Electronics & Electricals category at EnvMart.
