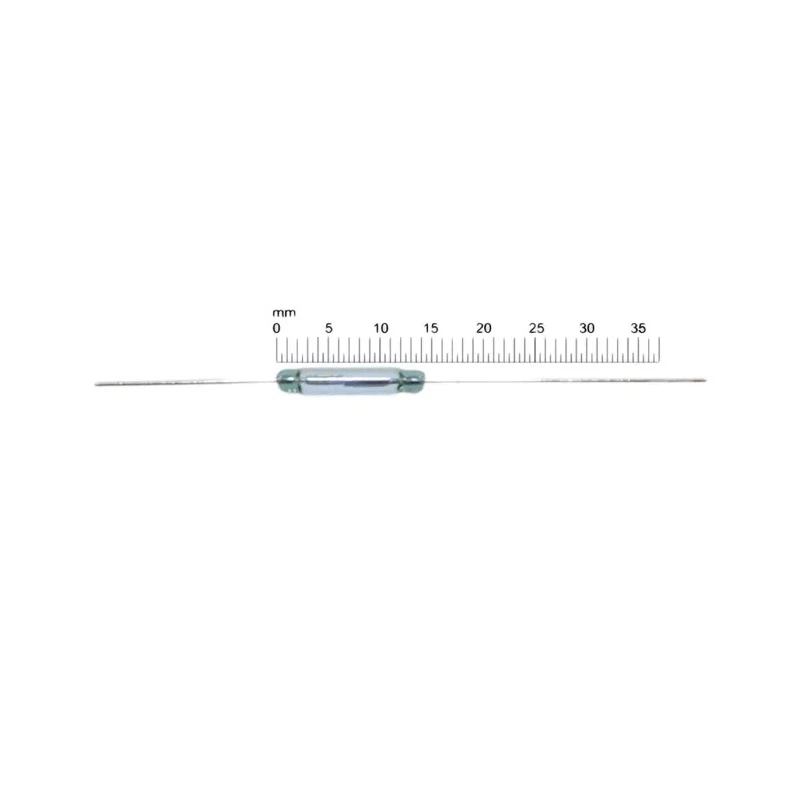

Assemtech SPST-NO PCB Reed Switch 1 A 200 V RI-26A

Assemtech RI-26A SPST-NO PCB Reed Switch is designed for precise and reliable switching in electronic and electrical industrial applications. Manufactured with a hermetically sealed glass envelope, this reed switch offers protection against environmental factors, ensuring longevity and consistent performance.

The single pole, single throw normally open (SPST-NO) contact configuration facilitates controlled switching for a variety of circuits. The contacts are plated with ruthenium on gold, enhancing electrical conductivity and reducing contact resistance to 110 milliohms, which contributes to the switch's efficiency.

This reed switch supports a maximum switching current of 1 ampere and can withstand voltages up to 200 volts with a maximum switching power of 15 watts, making it suitable for a range of low power PCB applications. Its compact physical size, with a length of 14.5 mm and width of 2.54 mm, allows easy integration into printed circuit boards. The wire terminal type and PCB mount style further facilitate installation in electronic assemblies.

Engineered to operate reliably in harsh conditions, the RI-26A can operate over a wide temperature range from minus 55 degrees Celsius to 125 degrees Celsius. It delivers fast mechanical response times, with a maximum release time of 30 microseconds and an operating time including bounce of 0.3 milliseconds.

Compliant with ISO standards, this reed switch offers quality assurance for industrial and manufacturing environments including automation systems, sensors, and control devices. The switch series RI is well-regarded for its mechanical life expectancy of up to 108 operations, making it a robust choice for repetitive switching applications.

Hermetically sealed glass envelope for protection and reliability. SPST-NO contact configuration suitable for normally open circuit operations. Ruthenium on gold plated contacts provide low resistance and high durability.

Wide operating temperature range of -55°C to 125°C supports various industrial environments. Compact size ensuring easy PCB integration and wire terminal connection. Maximum switching current of 1 A and switching power of 15 W for low power applications.

Fast response with mechanical life up to 10^8 operations. ISO standard compliance ensuring manufacturing quality. Manufactured in the Netherlands reflecting stringent quality control. Ideal for use in electronic, automation, and industrial control systems.

This product is part of the Reed Switch family, offering reliable contact switching technology. Explore related switches and components in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
