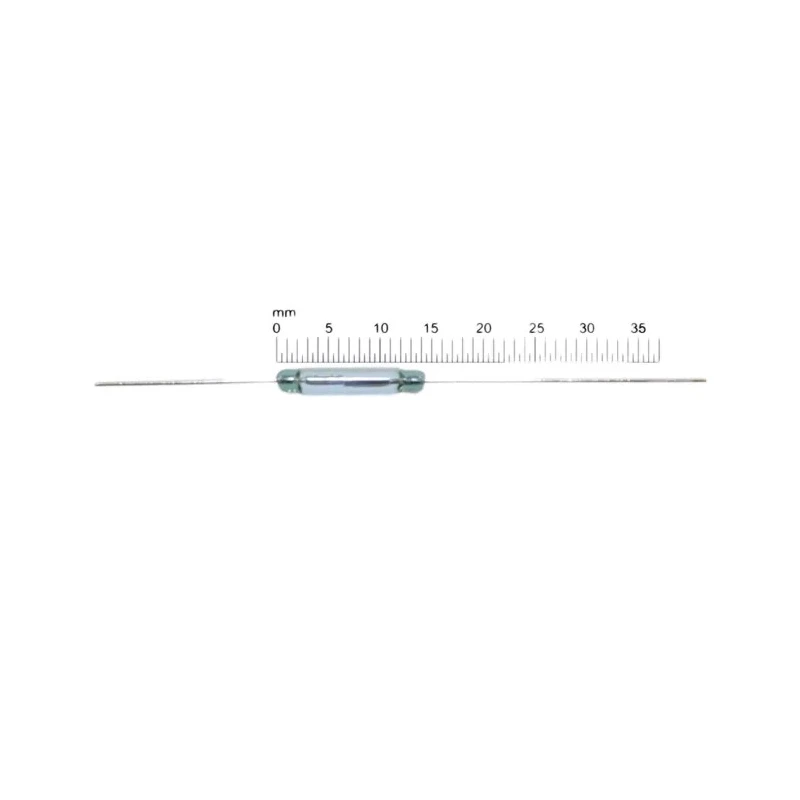

Assemtech Reed Switch SPST-NO PCB Mount 1 A 200 V Ruthenium on Gold RI-26B

Assemtech RI-26B is a high-quality SPST-NO PCB Reed Switch designed for reliable magnetic switching in industrial and electronic applications. Rated for a maximum switching current of 1 A and voltage of 200 V, it offers robust performance for control and sensing circuits.

This reed switch is hermetically sealed inside a gas-filled glass envelope, protecting it from environmental contamination and ensuring long mechanical life rated up to 108 operations. The contact material uses ruthenium plating on gold to maintain low contact resistance of 110 milliohms, enhancing signal integrity.

The switch operates effectively in extreme temperature conditions, ranging from -55°C to 125°C, making it suitable for harsh industrial environments including automation, machinery, HVAC controls, and instrumentation.

Its compact size of 14.5mm length and 2.54mm width allows easy PCB mounting, with wire-type terminals facilitating electrical connections. Typical uses involve actuating circuits magnetically via electromagnets or permanent magnets.

With fast response times - a maximum release time of 30 microseconds and an operating time including bounce of 0.3 milliseconds - this reed switch ensures quick state changes essential for precise control applications.

The series complies with ISO standards, assuring quality and dependability. Manufactured in the Netherlands, the RI-26B model is ideal for precise magnetic switching needs across electronics and automation sectors.

This hermetically sealed Reed Switch is mounted on PCB for secure and stable installation. Features SPST-NO contact configuration for normally open switching applications. Ruthenium on gold contact material ensures low contact resistance and reliable performance.

Operates within temperature range from -55°C to 125°C, suitable for harsh environments. Compact dimensions with 14.5mm length and 2.54mm width allow integration into electronic circuits. Maximum switching power of 20W supports a wide range of electrical loads.

Contact resistance is 110 milliohms ensuring minimal signal loss. Fast response with maximum release time of 30 microseconds and operating time including bounce 0.3 milliseconds. Designed in compliance with ISO standards and manufactured in the Netherlands.

Typical applications include electronics, automation, and sensing systems requiring magnetically actuated switching. Explore a wide selection of switches at EnvMart for industrial, laboratory, and commercial automation needs.
