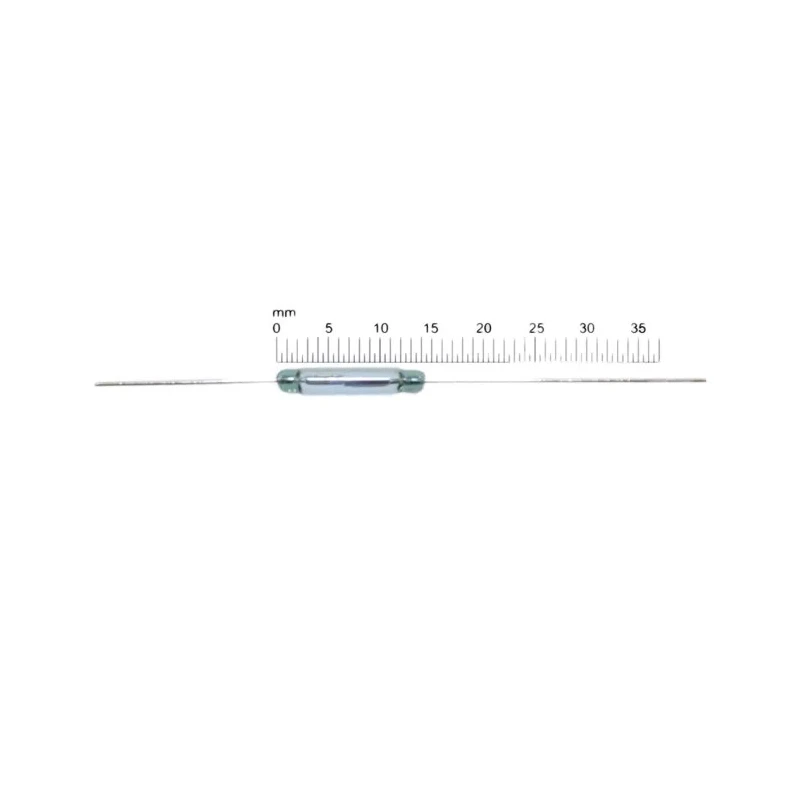

Assemtech SPST-NO PCB Reed Switch 500 mA 200 V RI-23A

Assemtech RI-23A SPST-NO PCB Reed Switch 500 mA 200 V is a hermetically sealed reed switch that provides reliable magnetic switching for PCB applications, featuring single pole single throw normally open contacts.

The switch is enclosed in a gas-filled glass envelope, ensuring longevity and protection against environmental factors. It is actuated magnetically, either by an electromagnet, permanent magnet, or a combination of both, suitable for industrial and automation systems.

It supports a maximum switching current of 500 mA and a maximum power of 10 W at voltages up to 200 V, making it ideal for low voltage control circuits. The contact material consists of ruthenium on gold plating, offering low resistance and excellent conductivity.

Operating temperature spans from -55°C to 125°C, providing robust performance in demanding industrial environments. The compact form factor with a length of 14.5 mm and width of 2.54 mm allows seamless PCB integration. The wire terminal type and PCB mounting provide flexible connection options in electronic assemblies.

This reed switch meets ISO standards, assuring compliance with agricultural, manufacturing, water treatment, and HVAC industrial requirements. It has a mechanical life rated to 10^8 operations and fast switching times, including a maximum release time of 30 microseconds and operating time including bounce of 0.25 milliseconds.

Common use cases include electrical, automation, instrumentation, and control systems where precise magnetic switching is required. The device’s build quality and specifications make it suitable for a broad range of industrial applications requiring durability and reliability.

Features SPST-NO contact configuration for single pole, single throw, normally open operation. Maximum switching current of 500 mA and power rating of 10 W ensures efficient circuit switching. Contact material is ruthenium on gold coating providing low contact resistance and reliable performance.

Designed for operation within a temperature range of -55°C to 125°C suitable for various industrial applications. Compact dimensions of 14.5 mm length and 2.54 mm width fit standard PCB layouts. Operation includes fast response times with maximum release time of 30 μs and bounce-included operating time of 0.25 ms.

Wire terminal type and PCB mount type allow easy integration into electronic assemblies. Compliance with ISO standards guarantees quality and durability. Manufactured in the Netherlands ensuring high quality manufacturing standards.
