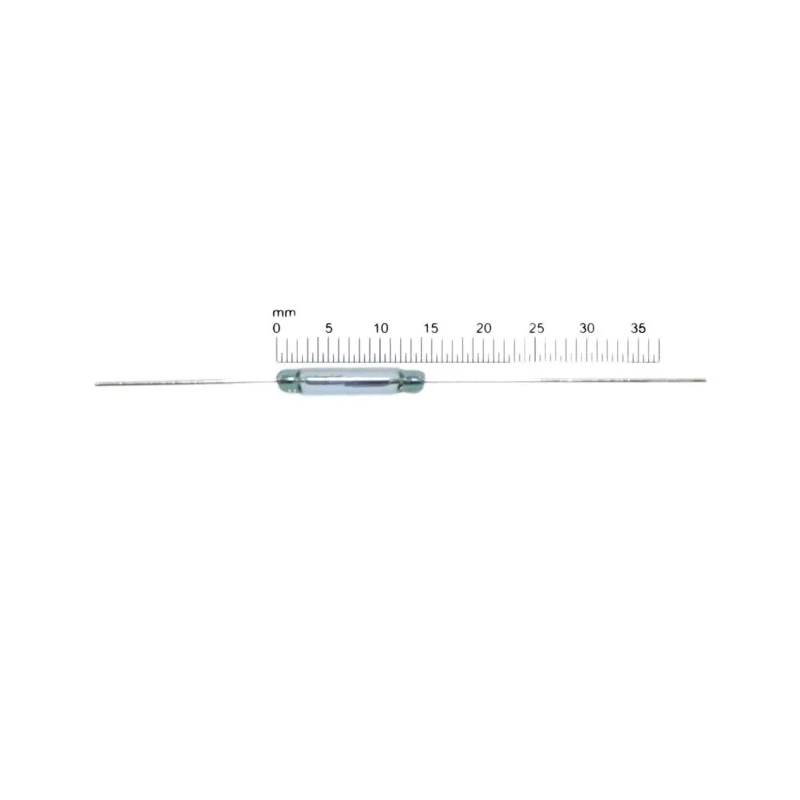

Assemtech SPST-NO PCB Reed Switch 500 mA 200 V RI-23C

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPST-NO PCB Reed Switch 500 mA 200 V RI-23C

Name: Assemtech SPST-NO PCB Reed Switch 500 mA 200 V RI-23C
Brand: Assemtech
SKU: 387423
Price: 119.01 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	14.5mm
Model	RI-23C
Width	2.54mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST-NO
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	100mΩ
Maximum Switching Power	10W
Standards/Approvals	ISO
Maximum Switching Voltage	200V
Maximum Release Time	30μs
Operating Time Including Bounce	0.25ms
AT Value Range	46 to 70 AT

Key Features

Single Pole Single Throw Normally Open (SPST-NO) contact configuration ensures reliable contact operation.
Maximum switching current of 500 mA and switching power of 10 W for medium load applications.
Hermetically sealed in a gas-filled glass envelope to prevent contamination and ensure longevity.
Contact material of ruthenium on gold provides low resistance and corrosion resistance.
Rated maximum switching voltage of 200 V suitable for PCB mounting.
Mechanical life of 10⁸ operations guarantees high durability.
Operating temperature range from -55°C to 125°C for wide environmental tolerance.
Compact dimensions with a width of 2.54 mm and length of 14.5 mm for easy integration.

Product Description

Assemtech RI-23C is a SPST-NO (Single Pole Single Throw Normally Open) PCB reed switch engineered for reliable electronic switching applications with a maximum switching current of 500 mA and power of 10 W at 200 V maximum voltage. The switch features hermetic sealing within a gas-filled glass envelope, which protects the internal components from contaminants and harsh environmental factors, making it suitable for industrial, laboratory, and automation equipment use.

Optimized with ruthenium on gold contact plating, this reed switch offers low contact resistance of 100 mΩ and excellent corrosion resistance. The device operates with a maximum release time of 30 μs and an operating time including bounce of 0.25 ms, ensuring quick and stable switching performance.

With a broad operating temperature range from -55°C to 125°C, the RI-23C is suitable for demanding environments including HVAC systems, manufacturing automation, and control circuits. It is designed to be mounted on printed circuit boards with wire terminals, simplifying assembly and replacement.

This reed switch conforms to ISO standards and is part of the RI series from Assemtech, recognized for durability and precision in reed switch technology. The compact size (2.54 mm width, 14.5 mm length) allows it to fit efficiently in dense electronic assemblies.

Single Pole Single Throw Normally Open contact configuration. Maximum switching current of 500 mA and maximum switching power of 10 W. Hermetically sealed in a gas-filled glass envelope for reliability. Ruthenium on gold contact material for low resistance.

Maximum release time of 30 microseconds for fast switching. Operating temperature range from -55°C to 125°C. Compact size enables circuit board integration. Wire terminal type and PCB mount for ease of use. Certified to ISO standards ensuring quality.

Ideal for use in industrial automation, electronic equipment, HVAC control systems, and laboratory instrumentation, the Assemtech RI-23C reed switch offers dependable switching with durability. Explore more Reed Switch options in our Electronics & Electricals category at EnvMart.
