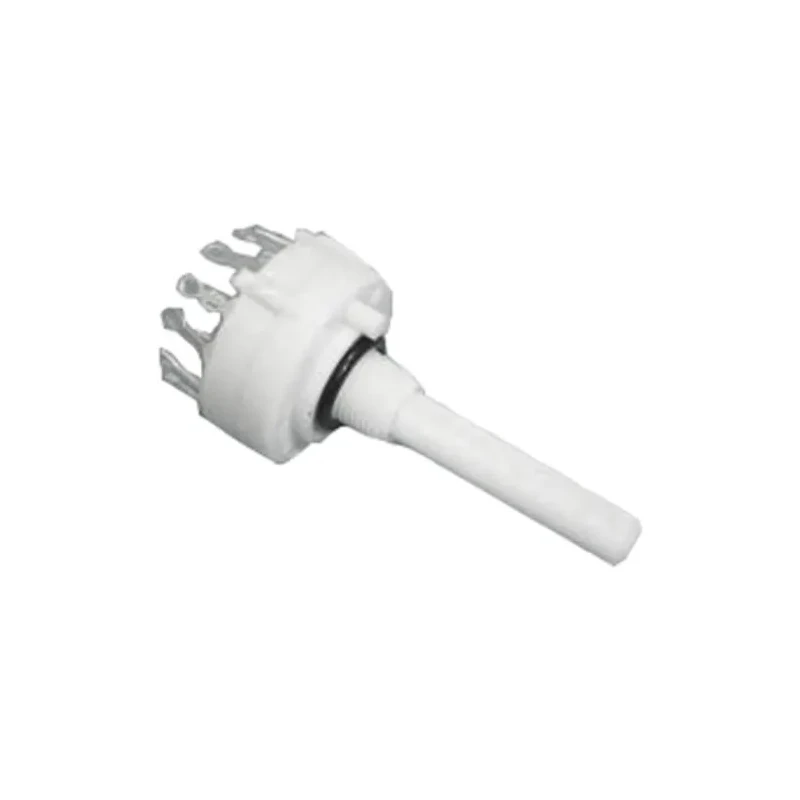

Lorlin CK 6 Position Rotary Switch 1A Solder Tag CKF1030

The Lorlin CKF1030 is a high-quality 6 position rotary switch designed for precise and reliable signal switching in low voltage applications. It is engineered with polyamide housing and robust solder tag terminals, optimized for PCB mounting. The switch supports a contact current rating of 1A and operates at a maximum AC and DC voltage of 24 volts each, making it suitable for industrial, electrical, and automation equipment.

This rotary switch features a sealed front panel rated to IP65, providing protection against dust and water ingress, ideal for demanding environments. The dampened indexing mechanism offers smooth operation with reduced axial play, enhancing user experience and reliability. The switch has a 90° angle of throw and mechanical life of 10,000 cycles, ensuring durability for extended use.

Operating temperature range spans from -30°C up to 85°C, allowing operation in harsh temperature conditions. The compact form factor with 27.5 mm diameter and 26.2 mm width facilitates easy integration into panel assemblies and devices requiring space-efficient components. The actuator is black colored for clear visibility and standardization.

Lorlin CKF series switches, including model CKF1030, are RoHS compliant and manufactured in the United Kingdom, assuring quality and environmental standards. This switch is ideal for use in industrial automation, electrical control panels, instrumentation, and other electronics requiring reliable rotary switching with IP65 protection.

This rotary switch features 6 positions and 2 poles for versatile signal switching. The housing is made of durable polyamide ensuring robust insulation. Supports maximum AC and DC voltages of 24V each for low voltage applications.

Designed to operate reliably between -30°C and 85°C temperature range. The switch includes a dampened indexing with 90° angle of throw and a mechanical life of 10,000 cycles. Terminals are solder tag type facilitating easy PCB soldering connections.

Its diameter is 27.5 mm with a depth of 27.5 mm and width of 26.2 mm for compact installations. The switch actuator is black in color and sealed to IP65 standard for front panel protection. Complies with RoHS standards and is manufactured in the United Kingdom.
