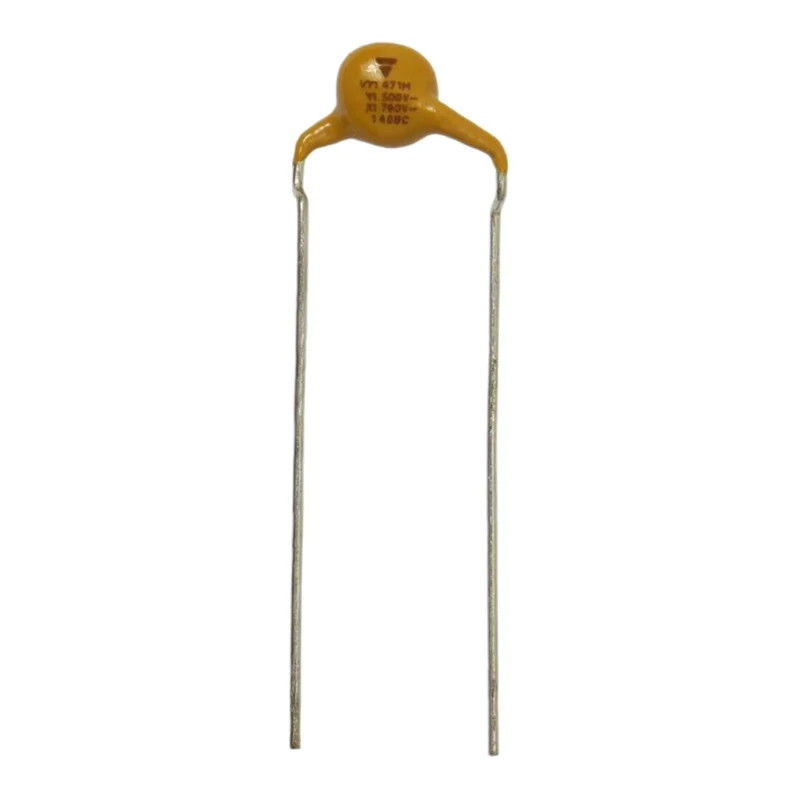

Vishay Single Layer Ceramic Capacitor 3.3 nF 500V AC, 760 V AC ±20% Y5U Dielectric, VY1 Compact Through VY1332M51Y5UC63V0

Vishay VY1332M51Y5UC63V0 single layer ceramic capacitor is a high-performance passive electronic component designed with a 3.3 nF capacitance and rated for 500 V AC continuous operation, with a maximum voltage tolerance reaching 760 V AC ±20%. Featuring the VY1 Compact series, this capacitor employs a Y5U dielectric material known for its specific temperature and voltage characteristics, making it suitable for a wide temperature range between -40°C and 125°C.

The capacitor disc is single-layer, silver-plated on both sides, and encapsulated in flame retardant epoxy resin, ensuring fire safety and reliability in demanding industrial environments. It features two radial tinned copper clad steel leads that allow through-hole mounting on PCBs, facilitating robust mechanical and electrical connections.

Typical applications include across-the-line use, line by-pass functions, and antenna coupling where stable capacitance is essential. The component complies with international standards including CSA, RoHS, IEC 60384-14, and DIN EN 60384-14, reflecting stringent quality and environmental requirements.

Compact dimensions of 20 mm height, 13 mm diameter, and 5 mm width support versatile PCB layout considerations. The dissipation factor of 2.5% is indicative of the capacitor’s efficiency and stability under AC conditions. Made in China, the capacitor provides a dependable solution for industrial, laboratory, electronic manufacturing, and telecommunications equipment.

The capacitor features a 760 V AC maximum voltage rating with ±20% tolerance. It utilizes the VY1 Compact series design with a radial through-hole mount type. The flame-retardant disc construction ensures high reliability and safety.

Operating temperature range is from -40 °C to 125 °C, suitable for various industrial applications. Pin count is 2 with radial terminal type, facilitating easy PCB insertion. Standards compliance includes CSA, RoHS, IEC 60384-14, and DIN EN 60384-14.

Dimensions are 20 mm height, 13 mm diameter, and 5 mm width. Dissipation factor for this capacitor is 2.5%. Manufactured with tinned copper clad steel leads for durability. Designed for applications such as across-the-line, line by-pass, and antenna coupling.

For advanced electronic component needs, EnvMart’s category of Single Layer Ceramic Capacitors offers this Vishay component as a reliable industrial choice.
