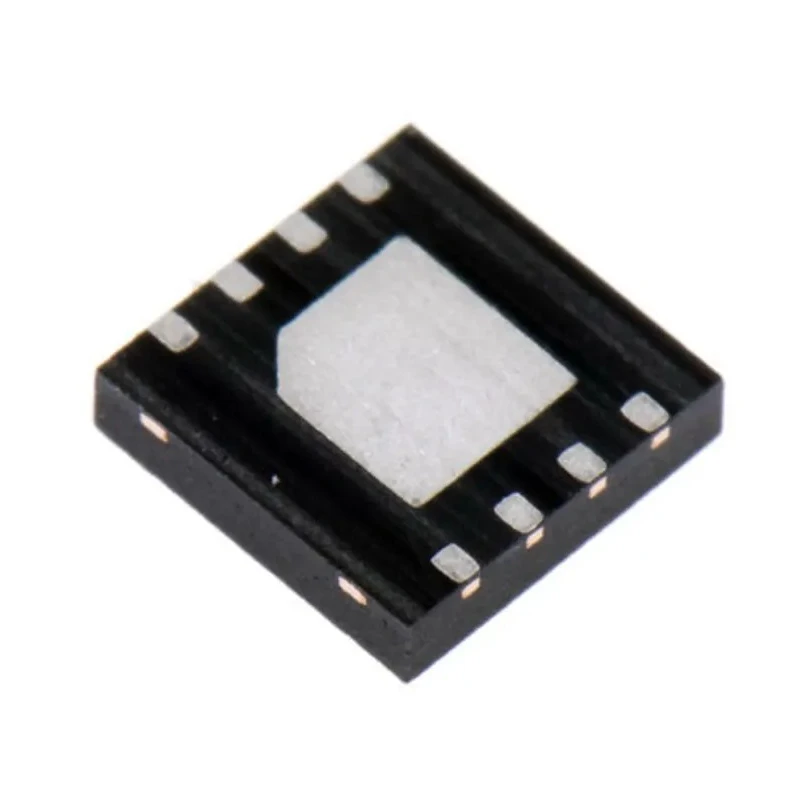

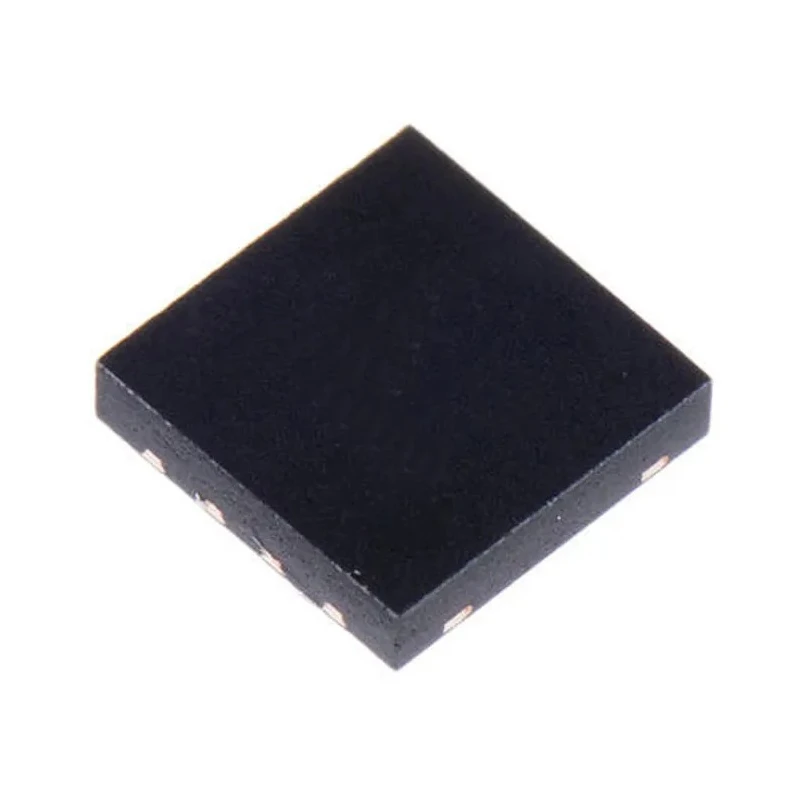

STMicroelectronics Audio Amplifier IC 2.8W, 8-Pin DFN Package, Class D, Single Channel TS4962IQT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Audio Amplifier IC 2.8W, 8-Pin DFN Package, Class D, Single Channel TS4962IQT

Name: STMicroelectronics Audio Amplifier IC 2.8W, 8-Pin DFN Package, Class D, Single Channel TS4962IQT
Brand: STMicroelectronics
SKU: 384624
Price: 2.66 USD
Availability: InStock



Category Audio Amplifier ICs Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	0.88mm
Length	3mm
Model	TS4962IQT
Width	3mm
Output Power	2.8W
Mount Type	Surface
Series	TS4962I
Maximum Operating Temperature	85°C
Package Type	DFN
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.4V
Amplifier Type	Audio
Amplifier Class	Class D
GBP - Gain Bandwidth Product	360kHz

Key Features

Delivers 2.8W output power with high efficiency Class D architecture.
Compact 3mm x 3mm DFN surface-mount package with 8 pins.
Operates over a wide supply voltage range of 2.4V to 5.5V.
Supports single audio channel with filterless and capless amplification.
Wide operating temperature range from -40°C to 85°C suitable for automotive environments.
Gain bandwidth product of 360kHz ensuring quality audio performance.
Robust design with Class-AB and filterless Class-D architectures for optimal performance.
Low-profile device height of 0.88mm for compact PCB layouts.

Product Description

STMicroelectronics TS4962IQT is a high-performance audio amplifier IC designed for automotive and low power audio applications. This device delivers 2.8W output power using Class D amplification which provides efficient audio performance with minimal power loss. Packaged in an 8-pin DFN surface mount, the IC features a compact 3mm by 3mm footprint with a low profile height of 0.88mm, making it suitable for space-constrained designs.

The TS4962IQT operates over a supply voltage range of 2.4V to 5.5V and supports a single audio channel. Its wide operating temperature range from -40°C to 85°C ensures reliable functionality in harsh automotive conditions. The amplifier integrates capless and filterless features with Class-AB and filterless Class-D architectures to deliver optimal audio quality and power efficiency without additional external components.

Audio engineers and designers benefit from the device’s high gain bandwidth product of 360kHz that helps maintain sound fidelity in automotive infotainment systems and other embedded audio solutions.

2.8W audio output power with Class D amplifier technology. 8-pin DFN surface mount package measuring 3 x 3 mm. Single channel operation suitable for headphone and low power audio amplification. Wide supply voltage range from 2.4V to 5.5V for flexible power designs.

Temperature range of -40°C to 85°C for automotive-grade reliability. Compact device height of 0.88 mm enables sleek PCB design. Capless and filterless integrated features simplify circuit complexity. Class-AB and filterless Class-D architectures ensure optimal performance.

This audio amplifier IC is ideal for use in automotive, consumer electronics, and low-power audio amplification applications requiring compact, high efficiency, and high fidelity audio solutions.

Explore more semiconductor and Audio Amplifier ICs on EnvMart for your electronic component needs.
