Kingbright 2.5 V Red, Green LED 3224 Surface KPBD-3224SURKZGC

Free Delivery in India | Lowest Global Shipping Charges

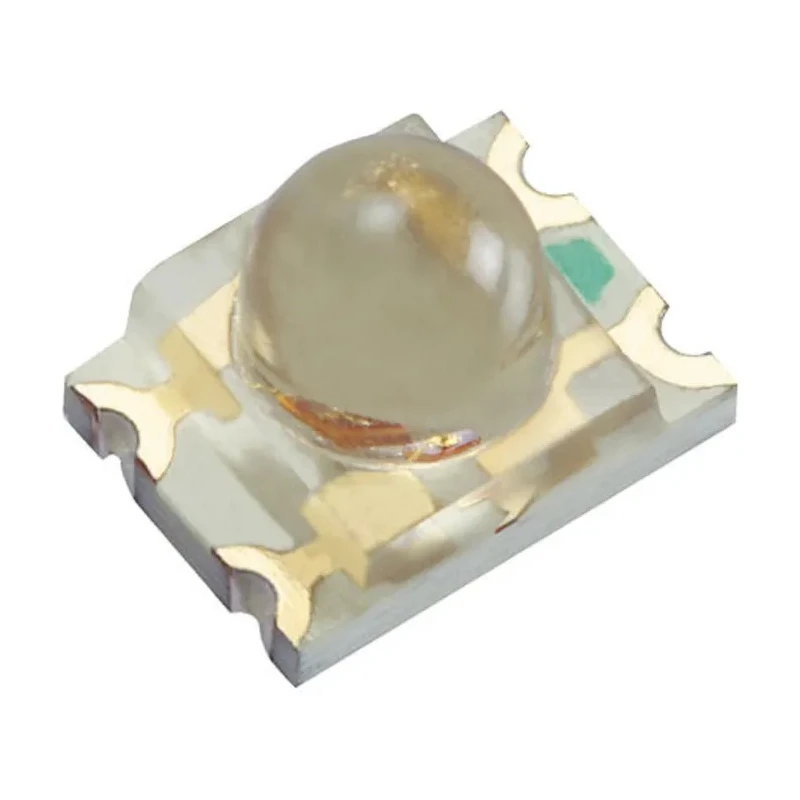

Kingbright 2.5 V Red, Green LED 3224 Surface KPBD-3224SURKZGC

Name: Kingbright 2.5 V Red, Green LED 3224 Surface KPBD-3224SURKZGC
Brand: Kingbright
SKU: 383188
Price: 1.13 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	3.2 x 2.4 mm
Model	KPBD-3224SURKZGC
Packaging	Tape & Reel
Mount Type	Surface
Number Of Leds	2
Maximum forward current	20mA
Viewing angle	20 °
Package Type	3224
Standards/Approvals	RoHS
LED Colour	Red, Green
Dominant Wavelength	630nm
Forward Voltage	2.5V
Number of Pins	4
LED Luminosity	950 mcd, 1300 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	3.2 x 2.4 x 2.4 mm
Lens Shape	Dome

Key Features

Features a standard 3224 surface mount package with dome lens.
Includes 2 LEDs and 4 pins in the compact 3.2 x 2.4 x 2.4 mm form factor.
Maximum power dissipation rated at 75 mW for efficient operation.
Viewing angle of 20 degrees with lens finished in clear for brightness control.
LED luminosity up to 1300 mcd suitable for indicator and backlighting applications.
Complies with RoHS standards assuring environmentally friendly manufacturing.
Manufactured in China with tape and reel packaging for automated production.
Ideal for electronic display, indicator, and signaling uses in various industrial devices.

Product Description

Kingbright KPBD-3224SURKZGC is a bi-color LED featuring red and green colors encapsulated in a 3224 (1210) SMT chip LED package designed for surface mounting. The LED operates at a forward voltage of 2.5 V with a maximum forward current of 20 mA and maximum power dissipation of 75 mW, balancing brightness with low power consumption. Its dome-shaped lens measures 3.2 x 2.4 x 2.4 mm and provides a narrow viewing angle of 20°, enabling focused light output for indicator and backlighting applications.

This LED is designed to meet RoHS compliance, ensuring environmentally responsible production. The luminous intensity ranges from 950 mcd for red to 1300 mcd for green, making it suitable for clear visibility in industrial electronics, signal displays, and control panels. Packaging is provided in tape and reel format facilitating automated pick-and-place processes in manufacturing environments.

Suitable industrial and commercial uses include electronics manufacturing, automotive indicator lights, instrumentation, and any application requiring dual color LED indicators. The product is manufactured in China and designed to meet standard dimensions for efficient board integration.

Standard 3224 SMT chip LED with dome lens in red and green. 2 LEDs with 4 pins for surface mounting on PCBs. Low power usage with maximum power dissipation of 75 mW. Compact lens size of 3.2 x 2.4 x 2.4 mm with clear finish.

20° viewing angle for precise visual indicators. Robust tape and reel packaging for efficient automated assembly. RoHS compliant product ensuring environmental safety. Manufactured in China with stringent quality control.

Explore Kingbright LEDs and electronic components on EnvMart for reliable industrial-grade lighting solutions.
