Kingbright 940 nm Infrared LED 0603 Surface Mount SMD Package KP-1608F3C

Free Delivery in India | Lowest Global Shipping Charges

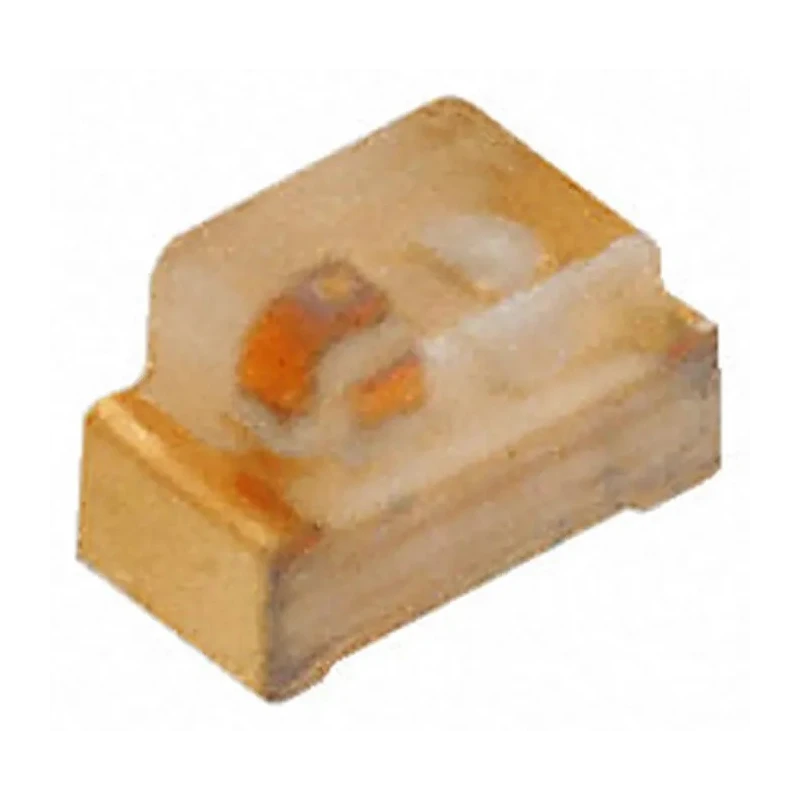

Kingbright 940 nm Infrared LED 0603 Surface Mount SMD Package KP-1608F3C

Name: Kingbright 940 nm Infrared LED 0603 Surface Mount SMD Package KP-1608F3C
Brand: Kingbright
SKU: 383147
Price: 0.19 USD
Availability: InStock



Category Infrared LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	1.6 x 0.8 x 1.1 mm
Model	KP-1608F3C
Packaging	Tape & Reel
Mount Type	Surface
Number Of Leds	1
Viewing angle	120°
Package Type	0603
Standards/Approvals	CIE 127-2007
Number of Pins	2
Lens Shape	Rectangular
Maximum Supply Voltage	1.6V
Peak Wavelength	940nm
LED Material	GaAs
Angle of half intensity	120°
Radiant Intensity	3mW/sr

Key Features

The LED features a compact 0603 (1608) surface mount Chip LED package suitable for high-density PCB layouts.
It emits infrared light at a peak wavelength of 940 nm with a radiant intensity of 3 mW/sr.
The device has a viewing angle of 120 degrees for broad infrared coverage.
The LED is constructed from GaAs semiconductor material and includes a rectangular lens shape.
The maximum supply voltage is rated at 1.6 V, ensuring efficient low-power operation.
The package is supplied on tape and reel, facilitating automated assembly processes.
The device has 2 pins and is compliant with the CIE 127-2007 standard for infrared emitters.
Designed specifically as an IR LED, it is ideal for applications in electronic components, displays, optoelectronics, and sensing technologies.

Product Description

Kingbright KP-1608F3C is a highly compact 940 nm infrared LED featuring a 0603 surface mount Chip LED package measuring 1.6 x 0.8 x 1.1 mm. It is engineered with GaAs material to emit infrared radiation at a peak wavelength of 940 nm with a radiant intensity of 3 mW per steradian, suitable for various electronic and optoelectronic applications.

The device's surface mount design and 0603 footprint enable high density placement on PCBs for space-constrained applications. Its broad 120° viewing angle allows for effective infrared coverage. The rectangular lens shape enhances light emission and directionality.

Operating at a maximum supply voltage of 1.6 V, the LED delivers efficient infrared output while maintaining low power consumption. Packaged on tape and reel, the KP-1608F3C supports streamlined manufacturing processes including pick-and-place automation.

This LED is compliant with the CIE 127-2007 standard, ensuring reliable performance and quality for infrared emission. It possesses 2 electrical pins for connection and is designed to fit seamlessly into electronic components, displays, and optoelectronic modules used in industrial, laboratory, commercial, and consumer electronic applications.

The LED is supplied in a compact 0603 surface mount format for efficient PCB integration. It emits infrared light at 940 nm wavelength with radiant intensity of 3 mW/sr. The device features a wide viewing angle of 120° for extensive coverage.

Constructed using GaAs material for effective infrared emission. Rated for a maximum supply voltage of 1.6 V for low power usage. Comes in tape and reel packaging to support automated assembly. Complies with CIE 127-2007 for quality assurance in IR emission.

Kingbright's KP-1608F3C Infrared LED is ideally suited for electronics manufacturing, display technologies, infrared sensing, and other optoelectronic industrial and commercial applications. Explore our full range of IR LEDs and electronic components at EnvMart for advanced design and production needs.
