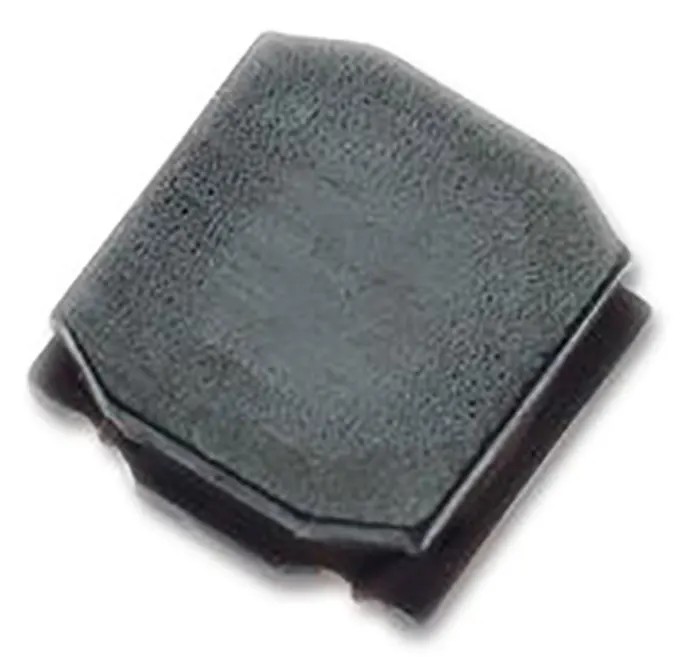

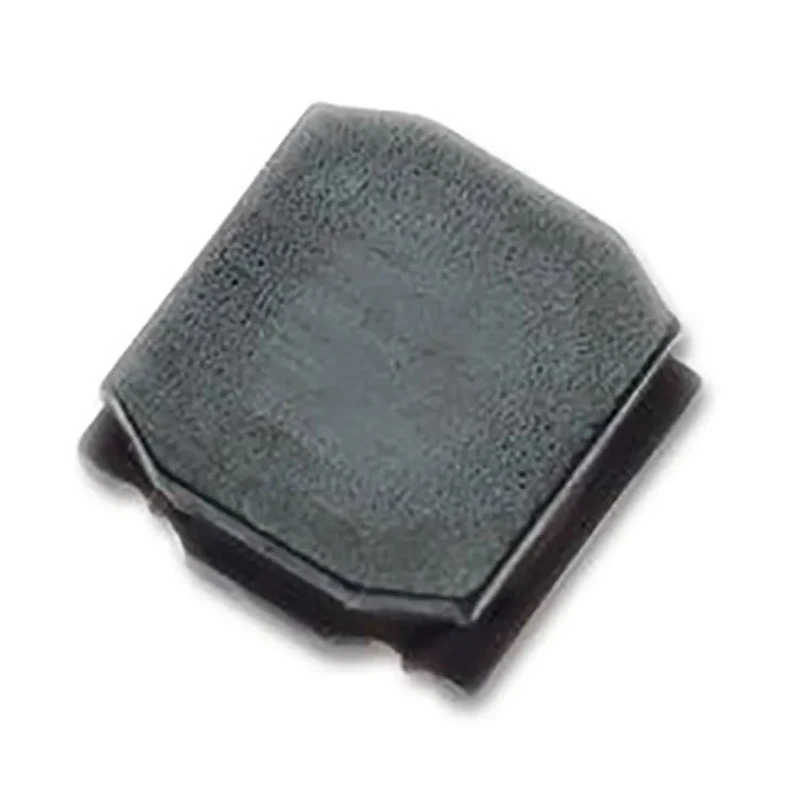

Murata 5050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±30% 3 A IDC LQH5BPN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 5mm |
| Model | LQH5BPN |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH5BPN |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 3A |
| Pin Count | 2 |
| Maximum DC Resistance | 58mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 40MHz |
| Inductor Construction | Wirewound |
Key Features
- The inductor has a compact 5mm x 5mm size suitable for SMT applications.
- Constructed with a ferrite core providing excellent magnetic shielding.
- Designed for operation within -40°C to 125°C temperature range.
- The maximum DC resistance is 58 mΩ to ensure efficient current flow.
- It supports a maximum self-resonant frequency of 40 MHz for stable performance.
- Features solder termination style for reliable PCB mounting.
- The component is RoHS compliant, ensuring environmental safety.
- The inductor is moulded and shielded wirewound construction for durability.
Product Description
Murata LQH5BPN is a 5050 series shielded wirewound surface mount inductor designed for power line applications requiring reliable inductance and current handling. With a ferrite core and a compact 5 mm by 5 mm package, this component provides 4.7 μH inductance with a tolerance of ±30%, supporting up to 3 A maximum DC current. It operates efficiently over a broad temperature range from -40°C to 125°C, suitable for various industrial and electronic environments.
This surface mount inductor features solder termination style, ensuring secure PCB attachment and excellent conduction. The maximum DC resistance of 58 milliohms minimizes power loss, enhancing overall circuit efficiency. Additionally, the inductor supports a maximum self-resonant frequency of 40 MHz, allowing for stable performance in high-frequency circuits.
Constructed with molded and shielded wirewound technology and incorporating a ferrite core, this inductor offers excellent magnetic shielding, reducing electromagnetic interference in sensitive electronics. It complies with RoHS standards, making it suitable for environmentally conscious designs.
Ideal for use in industrial, automotive, and consumer electronics, this Murata LQH5BPN inductor is an essential component for filtered power supplies, DC-DC converters, and other power management circuits requiring compact, efficient inductance solutions.
The inductor has a compact 5mm x 5mm size suitable for SMT applications. Constructed with a ferrite core providing excellent magnetic shielding. Designed for operation within -40°C to 125°C temperature range. The maximum DC resistance is 58 mΩ to ensure efficient current flow.
It supports a maximum self-resonant frequency of 40 MHz for stable performance. Features solder termination style for reliable PCB mounting. The component is RoHS compliant, ensuring environmental safety. The inductor is moulded and shielded wirewound construction for durability.
Explore more Surface Mount Inductors and related products from Murata and other leading brands in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 4.7 μH with a tolerance of ±30%.
It supports a maximum DC current of 3 A.
The maximum DC resistance is 58 mΩ, which helps ensure efficient current flow.
It is designed to operate within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency is 40 MHz, allowing for stable performance in high-frequency applications.
This unit has a compact size of 5mm x 5mm with a height of 2mm.
It is constructed with a ferrite core, providing excellent magnetic shielding.
It features a solder termination style for reliable PCB mounting.
Yes, it complies with RoHS standards, ensuring environmental safety.
It has a moulded and shielded wirewound construction, enhancing its durability.
The inductor is packaged in embossed tape, suitable for surface mount technology (SMT) applications.
It is ideal for use in filtered power supplies, DC-DC converters, and other power management circuits.
