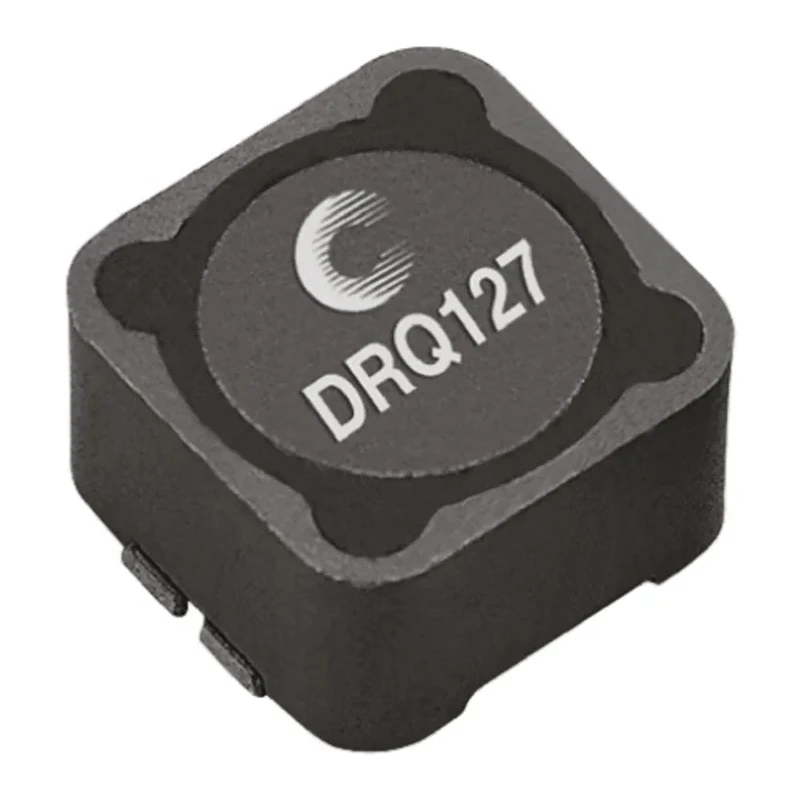

Eaton Shielded Surface Mount Inductor 22 μH ±20 % 7.57 A Idc Ferrite Core DRQ127-220-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Height | 8mm |
| Length | 12.5mm |
| Model | DRQ127-220-R |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | DRQ |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0127 |
| Maximum DC Current | 7.57A |
| Pin Count | 4 |
| Maximum DC Resistance | 157mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a durable ferrite core for enhanced magnetic properties.
- Designed with four pins for secure surface mount installation.
- Maximum operating temperature rated at 125°C for reliable performance.
- Maximum DC resistance of 157 mΩ minimizes energy losses.
- Wirewound inductor construction ensuring stable inductance characteristics.
- Reel packaging facilitates efficient automated assembly processes.
- Meets RoHS standards ensuring environmental compliance.
- Ideal for applications including DC-DC converters and power supply filters.
Product Description
Eaton DRQ127-220-R is a high-quality shielded Surface Mount Inductor with a ferrite core, providing 22 μH inductance with a tolerance of ±20 % and supporting a maximum DC current of 7.57 A. This surface mount component features a 0127 package/case style and is designed for efficient use in power electronics requiring stable and reliable inductance.
The inductor is fashioned from wirewound construction on a ferrite core, delivering excellent magnetic performance while maintaining low resistance at 157 mΩ. Its maximum operating temperature of 125°C ensures durability in demanding thermal conditions, making it suitable for industrial, commercial, and electronic applications.
With four pins for secure mounting, this component is supplied on reels to enable streamlined assembly and manufacturing processes. The DRQ series inductors support a wide range of power applications such as use as transformers (e.g., SEPIC, flyback converters), inductors for buck and boost converters, VRM inductors for CPU and DDR power supplies, as well as input and output filter chokes.
This product complies with RoHS environmental standards, underlining Eaton's commitment to quality and sustainability. The maximum self-resonant frequency is 100 kHz, suitable for typical power electronics frequency domains.
Durable ferrite core construction provides optimal inductance and shielding. Wirewound design contributes to enhanced electrical stability. RoHS compliant, ensuring environmental safety. Suitable for use in power converters and filtering circuits.
Supplied in reel packaging for efficient manufacturing integration. Wide operating temperature range from -40°C to 125°C. Supports maximum DC current of 7.57 A for high power applications. Compact 0127 package with 12.5 mm depth and 8 mm height dimensions.
Applications include industrial power supplies, computer motherboards, telecommunications equipment, and automotive electronics requiring reliable inductors with compact form factors.
Explore a wide range of Eaton electronic components and inductors at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20%.
It supports a maximum DC current of 7.57 A, making it suitable for high power applications.
The maximum operating temperature is rated at 125°C, which allows for reliable performance in demanding conditions.
This unit has a height of 8 mm and a length and depth of 12.5 mm each, fitting into a compact 0127 package.
The core material is ferrite, which enhances its magnetic properties.
It features a wirewound construction, ensuring stable inductance characteristics and low DC resistance.
The maximum DC resistance is 157 mΩ, which minimizes energy losses during operation.
The maximum self-resonant frequency is 100 kHz, suitable for typical power electronics applications.
It is supplied in reel packaging, facilitating efficient automated assembly processes.
This product complies with RoHS standards, ensuring environmental safety and compliance.
It is suitable for use in applications such as DC-DC converters, power supply filters, and various power electronics.
This model features four pins for secure surface mount installation.
