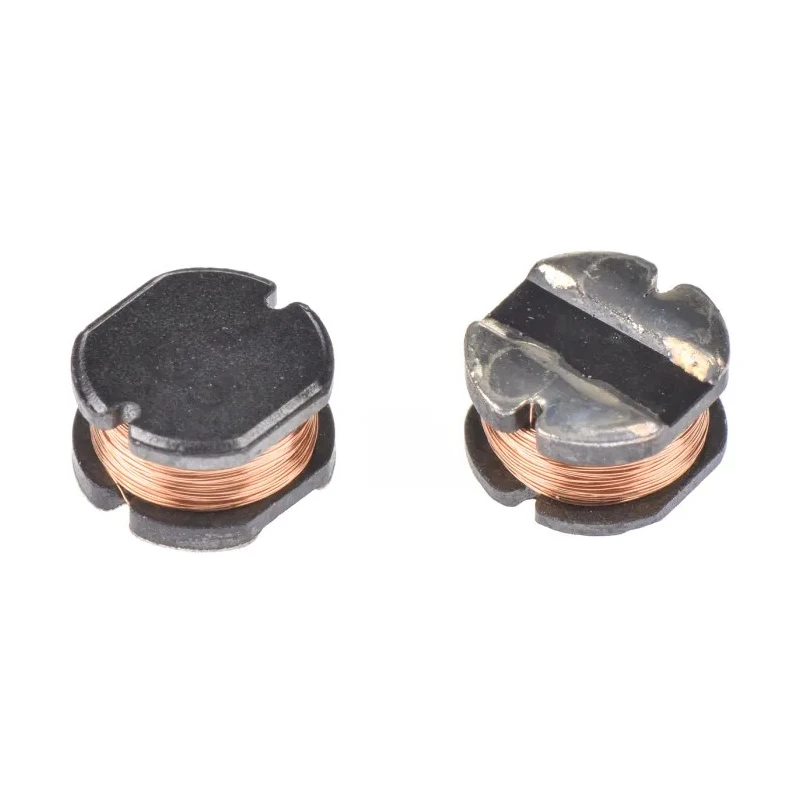

Bourns Wirewound Surface Mount Inductor with Ferrite DR Core 10 mH ±5% 20 mA 110 Ω SDR0503

Bourns SDR0503 Wirewound Surface Mount Inductor with a Ferrite DR Core delivers a nominal inductance of 10 mH with tight ±5% tolerance, ideal for precision electronic component manufacturing. This inductor is designed to carry a maximum DC current of 20 mA, suitable for low power circuits. Its surface mount package is compact, measuring 5 mm in diameter with a 3 mm height, allowing for efficient circuit board space utilization.

Constructed with high-quality ferrite DR core material, the inductor offers excellent magnetic performance and a maximum DC resistance of 110 Ω, enabling energy-efficient operation within sensitive electronic devices. It maintains reliable operation within a temperature range of -40°C to 125°C, meeting rigorous industrial and commercial standards.

The SDR0503 series supports a minimum quality factor of 30, ensuring stable inductance characteristics and minimal signal loss, with a maximum self-resonant frequency of 1 MHz suitable for various filtering and tuning applications.

These wirewound inductors are especially well suited for applications involving the input and output stages of DC/DC converters, power supplies, and other electronic circuits requiring precise inductive components. The product conforms to RoHS directives, reassuring compliance with environmental and safety regulations.

Constructed using a ferrite DR core for superior inductive performance. Compact surface mount form with a diameter of 5 mm and height of 3 mm. Rated for a maximum DC current of 20 mA, suitable for low-power circuits. Features a maximum DC resistance of 110 Ω to optimize power consumption.

Range of operating temperature between -40°C and 125°C for versatile use. Minimum quality factor of 30 to ensure signal efficiency at operational frequency. Maximum self-resonant frequency of 1 MHz for use in various electronic applications.

Inductance tolerance tightly held at ±5% for accuracy and consistency. Ideal for use in DC/DC converters and power supply filtering circuits. Compliant with RoHS regulations, promoting environmental responsibility.

These inductors are an essential component for industrial, electronic manufacturing, and commercial applications requiring reliable surface mount inductive components. Explore the extensive range of inductors and related electronic components available to meet your technical and production needs at EnvMart.
