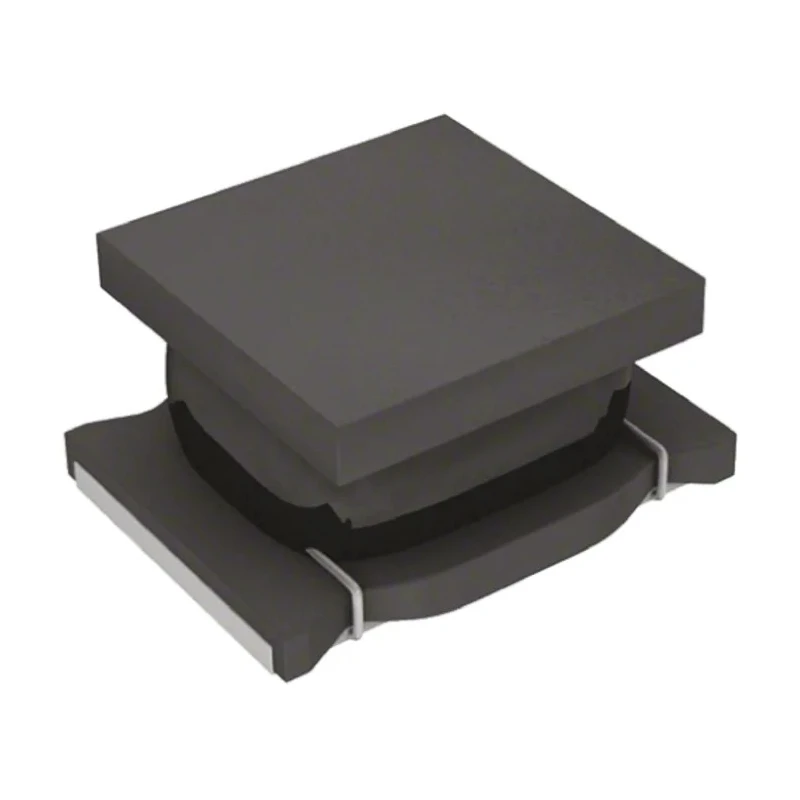

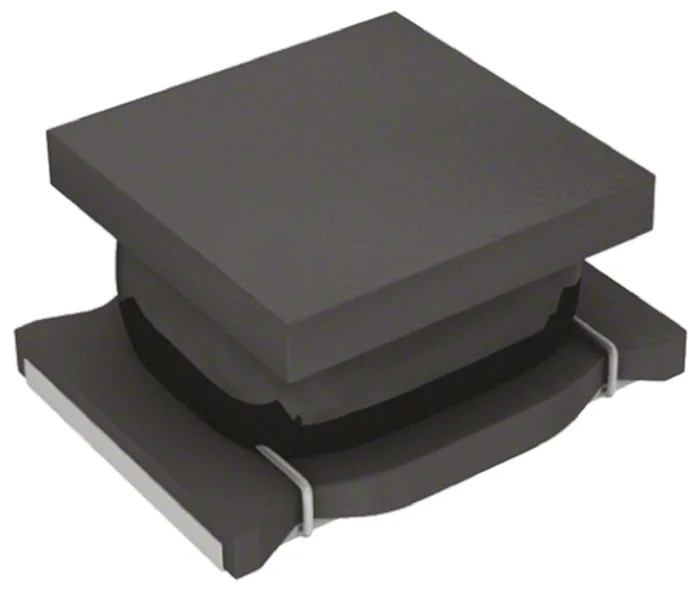

Murata Shielded Wirewound Surface Mount Inductor 15μH ±20 % 520mA 1210 Package LQH32PN150MN0L

Murata LQH32PN150MN0L is a shielded wirewound surface mount inductor featuring a ferrite core, providing reliable inductance of 15μH with ±20% tolerance and a maximum DC current rating of 520mA. This miniature chip inductor utilizes wirewound construction, magnetically shielded to minimize electromagnetic interference, suitable for choke purposes in DC power supply circuits.

The inductor conforms to RoHS standards, ensuring environmental compliance. It comes packaged in an embossed tape format, enabling efficient placement and soldering on printed circuit boards in industrial or commercial electronics manufacturing. With a compact 1210 package size (3.2mm length, 1.55mm height, 2.5mm depth), it is ideal for applications requiring space-saving components.

The termination style is solder, assuring robust electrical and mechanical connection. Operating temperature range spans -40°C to 85°C, allowing reliable usage in various environments. Its low maximum DC resistance of 570 milliohms ensures minimal power loss, while the maximum self-resonant frequency of 20MHz supports high-frequency circuit requirements.

Key technical characteristics include magnetic shielding, moulded construction for durability, and an operating current limit of 520mA DC. This product is well suited for use in industrial electronics, power supply units, telecommunications equipment, and other electronic assemblies requiring stable inductance components.

Murata inductors are globally recognized for quality and performance, making this LQH32PN150MN0L model a dependable choice for engineers and designers in the electronics and electrical sectors.

Constructed with a ferrite core for magnetic shielding. Compact 1210 package size measuring 3.2mm length, 1.55mm height, and 2.5mm depth. Maximum DC resistance of 570 milliohms enhances efficiency. Operates reliably between -40°C to 85°C temperature range.

Designed for use in DC power supply circuits as a choke inductor. Termination style is solder for secure mounting on PCB. Inductor construction features wirewound technology with magnetic shielding. Moulded for mechanical stability and durability.

Maximum self-resonant frequency of 20MHz supports high-frequency applications. Packaged in embossed tape for automated assembly compatibility. Explore more Surface Mount Inductors and quality electronic components at EnvMart for your industrial and manufacturing needs.
