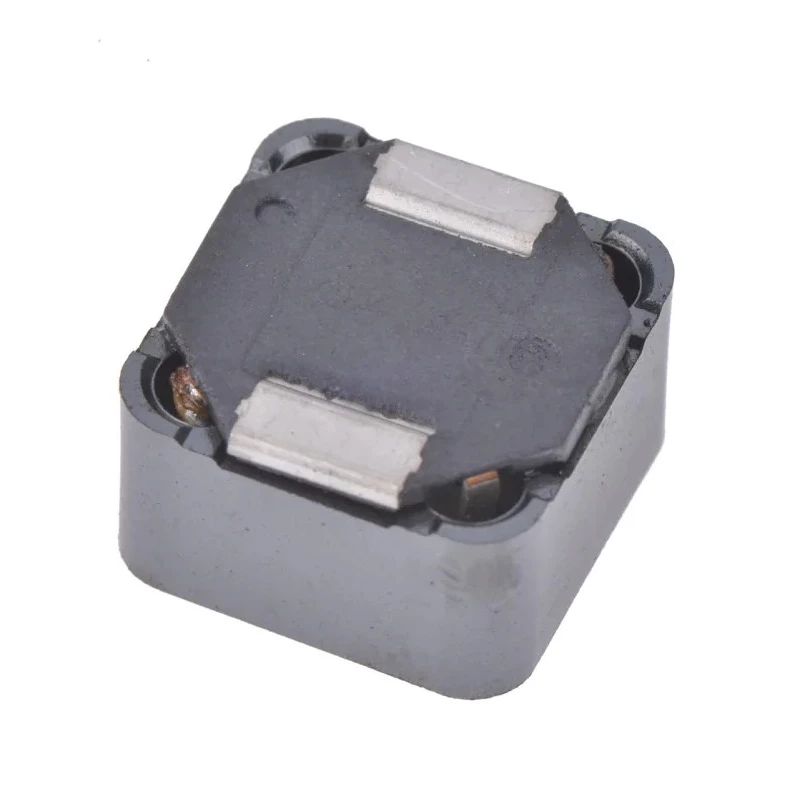

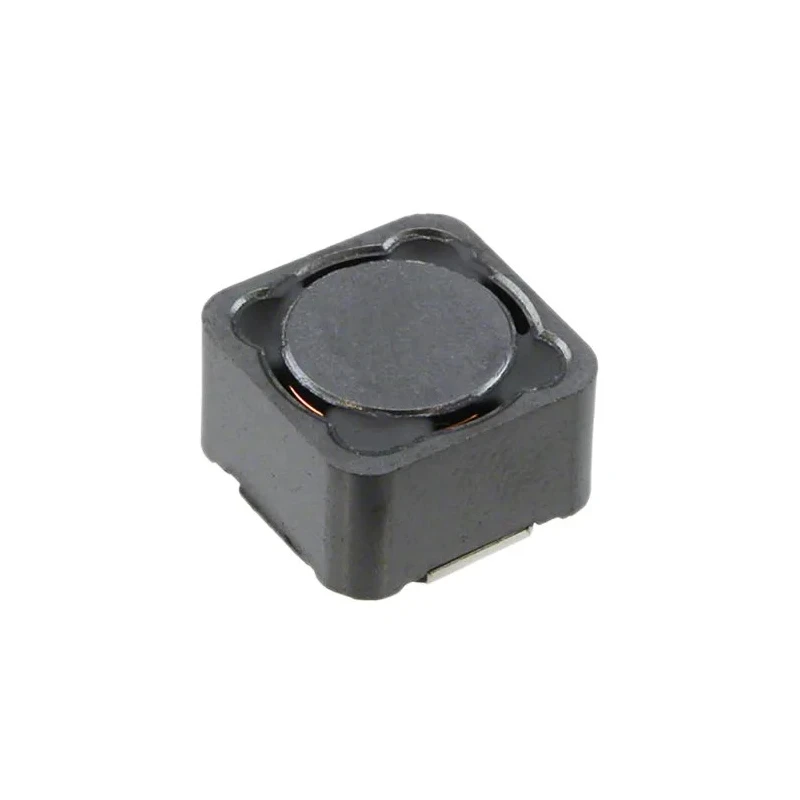

Bourns Shielded Wirewound Surface Mount Inductor with Ferrite Core 33μH ±20% 3.5A Idc Q28 PM127SH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 7.5mm |
| Length | 12.5mm |
| Model | PM127SH |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | PM127SH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 3.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 57mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 9.5MHz |
| Minimum Quality Factor | 28 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core for effective magnetic performance.
- Features wirewound construction providing durability and stability.
- Shielded design minimizes electromagnetic interference.
- Operating temperature range from -40°C to 125°C ensures ruggedness.
- Maximum DC resistance of 57 milliohms supports efficient current flow.
- Quality factor (Q) of 28 guarantees high performance at resonant frequency.
- Surface mount package with solder termination style for easy PCB assembly.
- Compliant with RoHS standards supporting environmental safety.
Product Description
Bourns PM127SH Shielded Wirewound Surface Mount Inductor is a high-quality electronic component designed for power electronics applications requiring compact and reliable inductors. This model features a 33μH inductance value with a tolerance of ±20%, suitable for a variety of electronic circuits. The inductor is constructed using a ferrite core and wirewound technology to offer excellent magnetic characteristics and durability.
Its shielded design effectively reduces electromagnetic interference, making it ideal for sensitive electronic applications such as power supplies for LCD TVs, car radios, camcorders, and portable communication devices. The component supports a maximum DC current rating of 3.5A and operates reliably in temperatures ranging from -40°C to 125°C, suitable for industrial and commercial environments.
The PM127SH series inductor is surface mountable with a convenient solder termination style, promoting easy integration onto printed circuit boards. The inductor's dimensions measure 12.5mm in length, 12.5mm in depth, and 7.5mm in height, making it suitable for compact electronic assemblies. This product complies with RoHS directives, affirming its environmental and safety standards.
Constructed from a ferrite core enhancing performance. Wirewound build provides robustness and stable inductance. Shielding ensures reduced electromagnetic interference. Suitable for power electronics and industrial applications.
Operating temperature range from -40°C to 125°C for versatility. Maximum DC resistance of 57 milliohms supports efficient operation. Surface mount design enables streamlined PCB installation. Complies with environmental RoHS standards.
Available on reels designed for efficient manufacturing processes.
Engineers and industrial designers can rely on this inductor for high-performance power supply designs and signal filtering in demanding environments. Explore a comprehensive range of high-quality inductors and surface mount components within the Electronics & Electricals category at EnvMart.
Explore more products in our Power Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 33μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 3.5A.
The dimensions of the inductor are 12.5mm in length, 12.5mm in depth, and 7.5mm in height.
It operates reliably in temperatures ranging from -40°C to 125°C.
The maximum DC resistance is 57 milliohms, supporting efficient current flow.
This inductor has a minimum quality factor (Q) of 28, indicating its performance at resonant frequency.
It is constructed with a ferrite core, which enhances its magnetic performance.
The inductor is packaged on reels, facilitating efficient manufacturing processes.
It features a solder termination style for easy integration onto printed circuit boards.
Yes, it complies with RoHS standards, supporting environmental safety.
This inductor is suitable for power electronics applications, including power supplies for LCD TVs, car radios, and portable communication devices.
It features a wirewound construction, providing stability and durability in its performance.
