Kingbright 2.5 V 75 mW Red Surface Mount LED 3216 Package KP-3216EC

Free Delivery in India | Lowest Global Shipping Charges

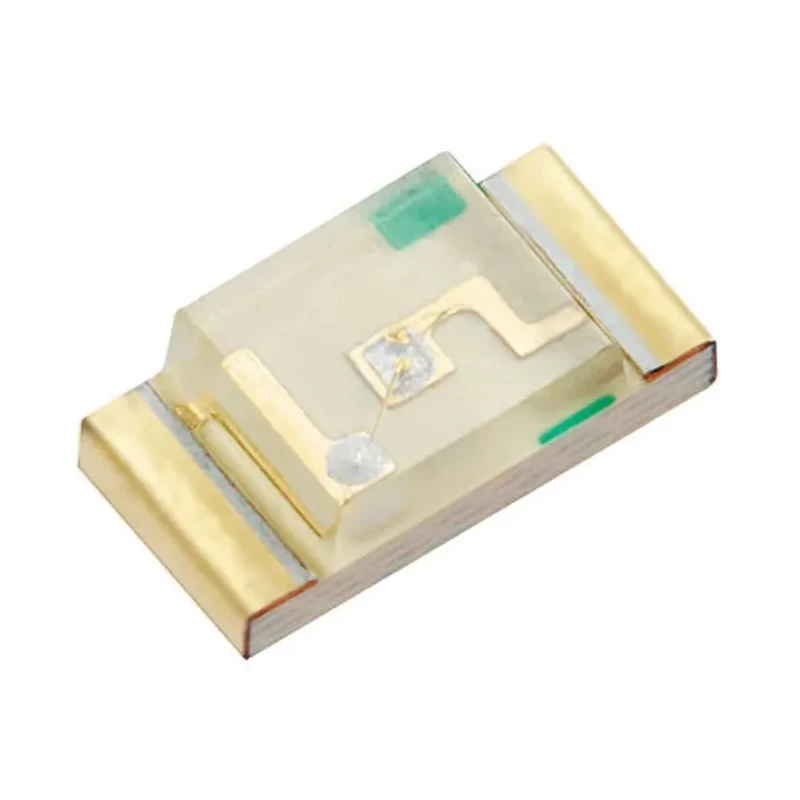

Kingbright 2.5 V 75 mW Red Surface Mount LED 3216 Package KP-3216EC

Name: Kingbright 2.5 V 75 mW Red Surface Mount LED 3216 Package KP-3216EC
Brand: Kingbright
SKU: 382349
Price: 0.12 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Height	1.1 mm
Model	KP-3216EC
Packaging	Tape & Reel
Mount Type	Surface
Series	KP-3216
Maximum forward current	160mA
Viewing angle	120 °
Package Type	3216
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	617nm
Forward Voltage	2.5V
Number of Pins	2
LED Luminosity	15 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	3.2 x 1.6 x 1.1 mm
Lens Shape	Rectangular

Key Features

This LED features a maximum forward current of 160 mA.
It has a maximum power dissipation of 75 mW ensuring low power consumption.
The forward voltage rating is 2.5 V suitable for various electronic circuits.
The LED emits red light with a dominant wavelength of 617 nm.
The package size is 3.2 x 1.6 x 1.1 mm with a rectangular clear lens.
The viewing angle is wide at 120 degrees for enhanced visibility.
It has two pins for surface mounting with tape and reel packaging for automated assembly.
The LED luminosity is rated at 15 mcd for clear brightness indication.

Product Description

Kingbright KP-3216EC is a high-quality red LED featuring a compact 3216 (1206 imperial size) surface mount package with a height of 1.1 mm. It operates at a forward voltage of 2.5 V and supports a maximum forward current of 160 mA, dissipating a maximum power of 75 mW. The LED’s rectangular clear lens delivers a dominant wavelength of 617 nm producing bright red light with good clarity and an effective viewing angle of 120 degrees.

This LED is ideal for backlighting, indicator lights, and various electronic component applications where compact size and reliable illumination are essential. The component is RoHS-compliant, ensuring it meets environmental regulations.

Its packaging in tape and reel format facilitates mass production and automated PCB assembly in industrial, commercial, and manufacturing electronics sectors. With a lens dimension of 3.2 mm by 1.6 mm and a package height of 1.1 mm, it fits into dense circuit layouts while maintaining excellent light output.

The KP-3216EC’s robust design makes it suitable for a variety of electronics including display lighting, panel indicators, and status signaling in laboratory equipment, consumer electronics, and industrial instrumentation.

This LED supports a maximum forward current of 160 mA for efficient power usage. The power dissipation is limited to 75 mW to ensure component safety. Emission wavelength is precisely 617 nm for accurate red color reproduction.

The wide viewing angle of 120 degrees enhances visibility from different perspectives. Includes surface mount design with two pins for reliable electrical connection. Rectangular clear lens ensures optimal light emission without distortion.

Complies with RoHS environmental standards for hazardous substances. Compact 3216 package size supports high-density PCB layouts. Packaging in tape and reel is optimized for automated manufacturing processes.

Excellent for industrial machines, electronic displays, laboratory instrumentation, and commercial electronic devices. Browse all Kingbright LED products and related categories at EnvMart for advanced lighting component solutions.
