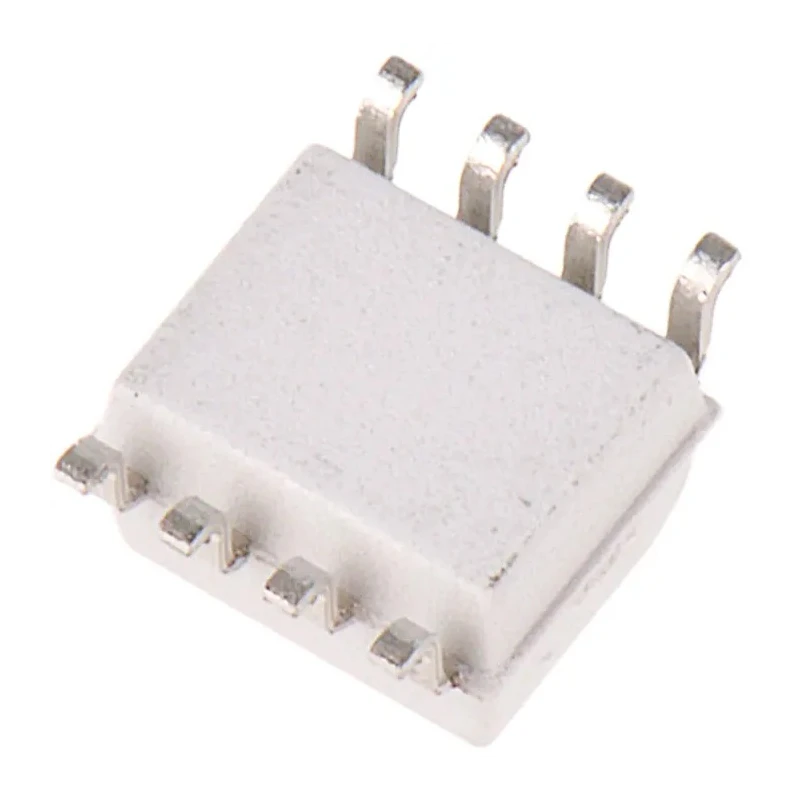

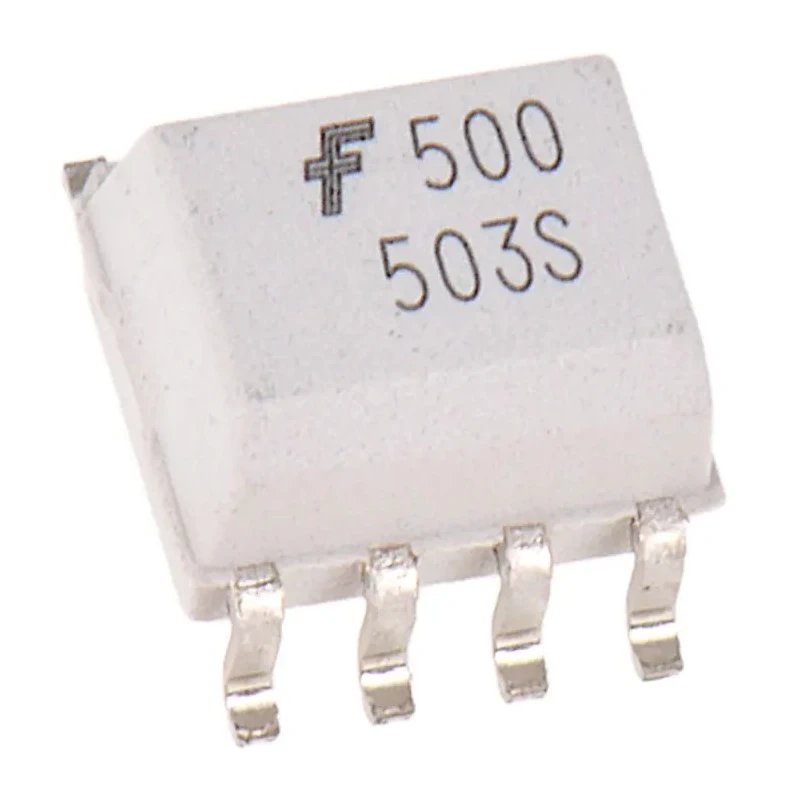

onsemi DC Input Optocoupler Surface Mount Transistor Output 8-Pin SOIC HCPL0500

onsemi HCPL0500 is a high-performance DC input optocoupler with a transistor output designed for surface mount applications. This device is housed in a compact 8-pin SOIC package optimized for space-saving in electronic circuit boards. It offers excellent electrical isolation and is engineered to operate efficiently with a typical rise time of 5 nanoseconds, making it suitable for high-speed signal isolation.

This optocoupler supports a maximum input forward voltage of 1.8V and a maximum input current of 25mA, ensuring reliable and safe operation within specified limits. It features a high isolation voltage of 2500V AC, providing strong protection against high voltage transients between input and output circuits. The device is UL-approved, conforming to industry safety standards for electronics components.

Operating within a temperature range from -40°C to 85°C, the HCPL0500 adapts well to industrial, laboratory, and commercial electronics environments. It offers a single channel with logic transistor output, making it versatile for various control and isolation use cases in automation, instrumentation, and signal processing.

This optocoupler is supplied in tube packaging designed for automated component placement machinery, improving production efficiency and consistency. Engineers and designers will appreciate the efficient footprint and reliable performance characteristics of this surface mount optocoupler for embedding into electronic assemblies.

Features DC input current type for reliable operation. Input maximum forward voltage of 1.8V ensures minimal loss. High isolation voltage of 2500V AC to protect circuits. Typical rise time of 5 nanoseconds for fast signal response.

Supports a maximum input current of 25mA for performance stability. Operating temperature range from -40°C to 85°C suitable for diverse environments. Includes UL standard approvals for safety compliance. Single channel output with logic transistor output type.

Packaged in tubes ready for automated insertion. Compact SOIC 8-pin surface mount package design.

Widely used in industrial automation, power electronics, instrumentation, and telecommunications, the onsemi HCPL0500 is a dependable choice for isolating signals to enhance system reliability and safety. For more electronics components like Optocouplers and similar semiconductor devices, explore other high-quality offerings available within EnvMart.
