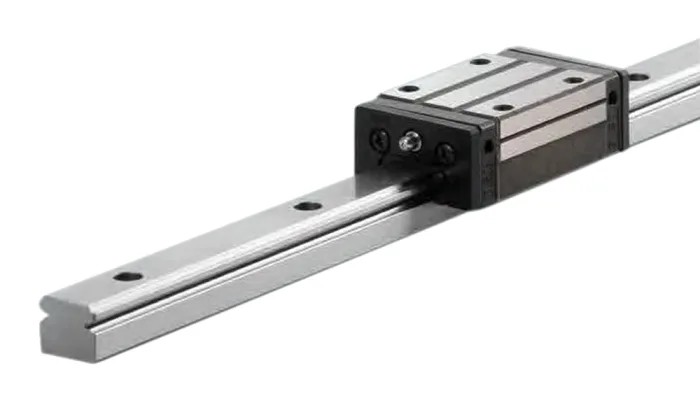

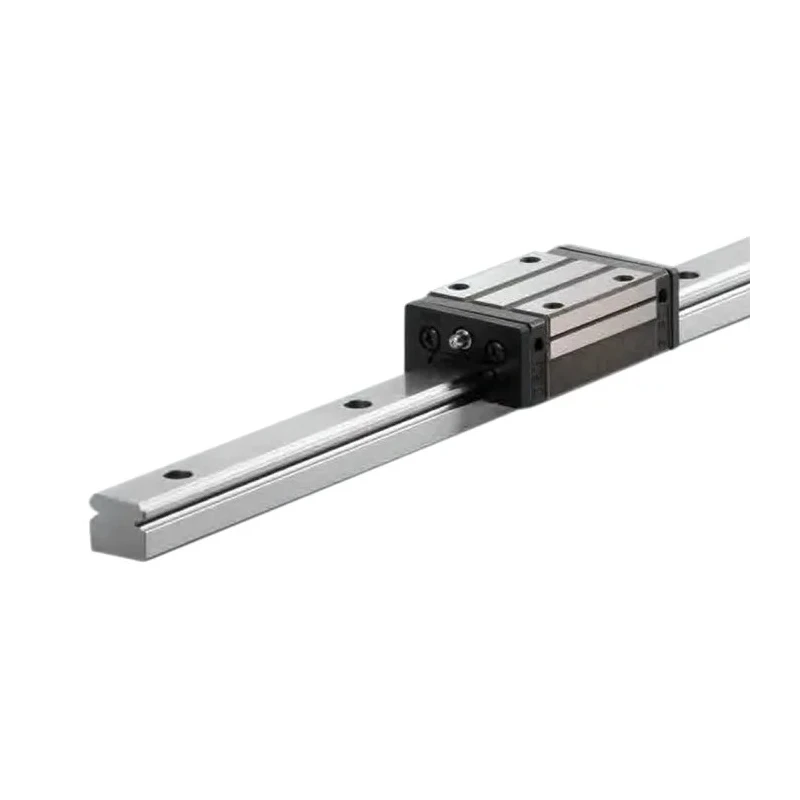

NSK Guide Block Linear Motion Compact Series NAS15CLCE01PCZ 15mm Rail Width, 5750 N Dynamic Load

NSK NAS15CLCE01PCZ guide block is a high-quality linear motion component from NSK’s compact NS series designed for demanding industrial applications requiring precise and durable linear guidance. This series offers a dynamic load rating of 5750 N and a static load rating of 9100 N, with a carriage length of 40.4 mm and width of 34 mm, supporting a rail width of 15 mm.

The modernized NS series supersedes the earlier LS and LH series by increasing the dynamic load capacity by approximately 1.3 times and enhancing product longevity through a new groove design that maximizes the contact area between the ball and rail slides. This reduces surface pressure and significantly extends maintenance intervals, resulting in improved productivity.

The improved ball recirculation path facilitates high-speed linear motion with reduced noise levels - up to a 3 dB reduction making operations quieter and smoother in precision industrial environments. The model includes NSK’s proprietary K1 lubrication system, a blend of mineral oil and polyolefin resin, which supports long-term maintenance-free use for distances up to 40,000 km. This lubrication system functions effectively regardless of orientation and is ideal where grease application is challenging or contamination risk exists.

Given its robust construction and enhanced design, this guide block is applicable in precision machine tools, robotic arms, semiconductor fabrication lines, CT scanners, measuring instruments, and automotive manufacturing equipment. It ensures reliable, smooth linear motion with extended service life and minimal operational noise.

This NSK guide block NAS15CLCE01PCZ is fully compatible with existing LH and LS series mounting and dimensions, allowing seamless replacement or integration into existing systems. The superior durability and maintenance advantages make it a preferred choice in various industrial, mechanical, and automation-related applications.

Compact NS series with enhanced dynamic load rating and long service life. Carriage dimensions: length 40.4 mm, width 34 mm for precise fits. Noise reduction of up to 3 dB for quieter operation. Maintenance-free NSK K1 lubrication for up to 40,000 km travel.

Suitable for applications in machine tools, robotics, semiconductor production, and automation. Compatibility with LH and LS series mounting dimensions. Robust design ensures reduced surface pressure and extended life. Explore more NSK linear motion components and guide blocks at EnvMart for reliable industrial automation and mechanical solutions.
