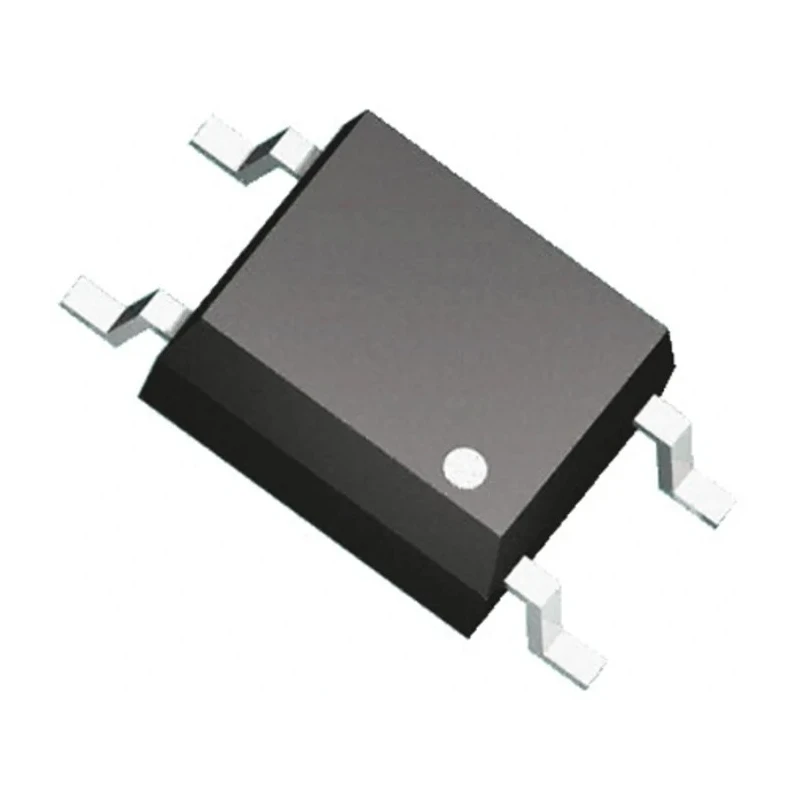

onsemi Optocoupler, Surface Mount, Transistor Output, Mini-Flat 4-Pin FODM8801C

Free Delivery in India | Lowest Global Shipping Charges

onsemi Optocoupler, Surface Mount, Transistor Output, Mini-Flat 4-Pin FODM8801C

Name: onsemi Optocoupler, Surface Mount, Transistor Output, Mini-Flat 4-Pin FODM8801C
Brand: onsemi
SKU: 382710
Price: 1.65 USD
Availability: InStock



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	FODM8801C
Packaging	Tube
Mount Type	Surface
Output type	Transistor
Series	FODM
Maximum Operating Temperature	125°C
Package Type	Mini-Flat
Minimum Operating Temperature	-40°C
Maximum input current	20mA
Number Of Channels	1
Standards/Approvals	C-UL, UL and VDE
Maximum Forward Voltage	1.8V
Number of Pins	4
Typical Rise Time	5μs
Maximum Current Transfer Ratio	560%
Typical Fall Time	5.5μs
Minimum Current Transfer Ratio	100%

Key Features

Designed for efficient electrical isolation and signal transfer.
Operates with a maximum forward voltage of 1.8V.
Supports a maximum input current of 20mA.
Typical rise and fall times are 5μs and 5.5μs respectively for fast switching.
Operating temperature range from -40°C to 125°C ensures reliability in harsh environments.
Features a high maximum current transfer ratio of 560% for signal amplification.
Packaged in tubes for convenient handling and automated assembly.
Meets C-UL, UL, and VDE safety standards for quality assurance.

Product Description

onsemi FODM8801C is a high-performance optocoupler designed for surface mounting on printed circuit boards. This device uses a transistor output and is housed in a compact mini-flat 4-pin package, making it ideal for space-constrained electronic circuits.

It features a maximum forward voltage of 1.8V and supports up to 20mA input current. Typical rise and fall times of 5μs and 5.5μs provide fast switching capabilities, suitable for industrial electronic applications.

The device is rated for operating temperatures from -40°C to 125°C, ensuring stable performance even in demanding environments such as automotive, industrial, and consumer electronics.

This optocoupler delivers a high current transfer ratio up to 560%, enabling effective signal amplification while maintaining electrical isolation between input and output. Packaging in tube format facilitates efficient automated insertion into electronic assemblies, improving production throughput and reliability.

Conforming to C-UL, UL, and VDE standards, the FODM8801C promises compliance with international safety and quality benchmarks for optoelectronic components. Designed for efficient electrical isolation and signal transfer.

Operates with a maximum forward voltage of 1.8V. Supports a maximum input current of 20mA. Typical rise and fall times are 5μs and 5.5μs respectively for fast switching. Operating temperature range from -40°C to 125°C ensures reliability in harsh environments.

Features a high maximum current transfer ratio of 560% for signal amplification. Packaged in tubes for convenient handling and automated assembly. Meets C-UL, UL, and VDE safety standards for quality assurance.

This optocoupler is ideal for use in industrial automation, telecommunications, consumer electronics, power supply isolation, and safety applications requiring reliable electrical isolation and signal transmission.
