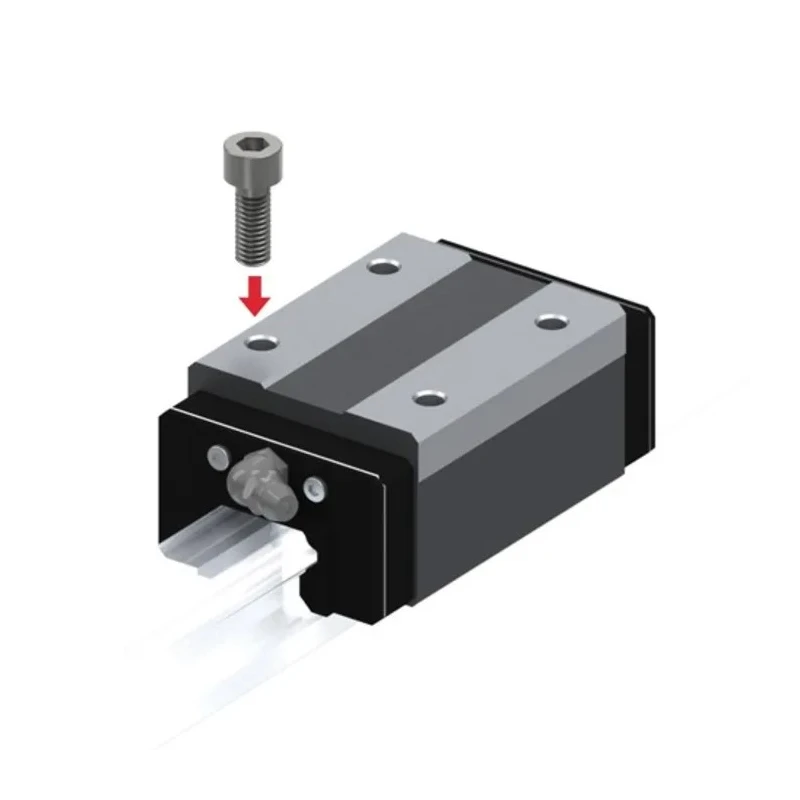

THK Linear Guide Carriage HSR Series 35.2 kN Dynamic Load HSR25LR1SS(GK)

THK HSR25LR1SS(GK) Linear Guide Carriage from the HSR Series offers precise and reliable linear motion with a dynamic load rating of 35.2 kN. This component is essential in mechanical, industrial, and automation applications requiring smooth and accurate linear positioning.

Constructed from robust carbon steel, the carriage dimensions of 102.2 mm length and 48 mm width fit in the HSR series configurations with an acceptable rail width of 23 mm. The carriage features a four-row ball circulation mechanism which uses an end plate assembled within the LM block and a holding plate that ensures the balls remain secured even when the block is detached from the rail, enhancing safety and operational reliability during maintenance.

Originating from France, this linear guide carriage meets stringent manufacturing quality benchmarks. It is specifically designed for applications where sudden design changes or maintenance access are critical, providing engineers and technicians with a versatile and dependable solution.

Applications include industrial machinery, robotics, automation systems, and manufacturing equipment requiring high load handling and accuracy in linear motion tasks. Its construction and functional design facilitate long service life with minimal downtime.

Carbon steel material construction ensures robustness and durability. 102.2 mm carriage length and 48 mm width support diverse machine designs. 35.2 kN dynamic load rating for heavy-duty linear motion applications. Ball circulation system with end and holding plates prevents ball loss on removal.

Compatibility with 23 mm rail width for the HSR series. Manufactured in France, ensuring high-quality production standards. Explore our extensive range of Linear Guide Blocks and components at EnvMart for complementary parts and spares, suitable for mechanical and industrial engineering needs.
