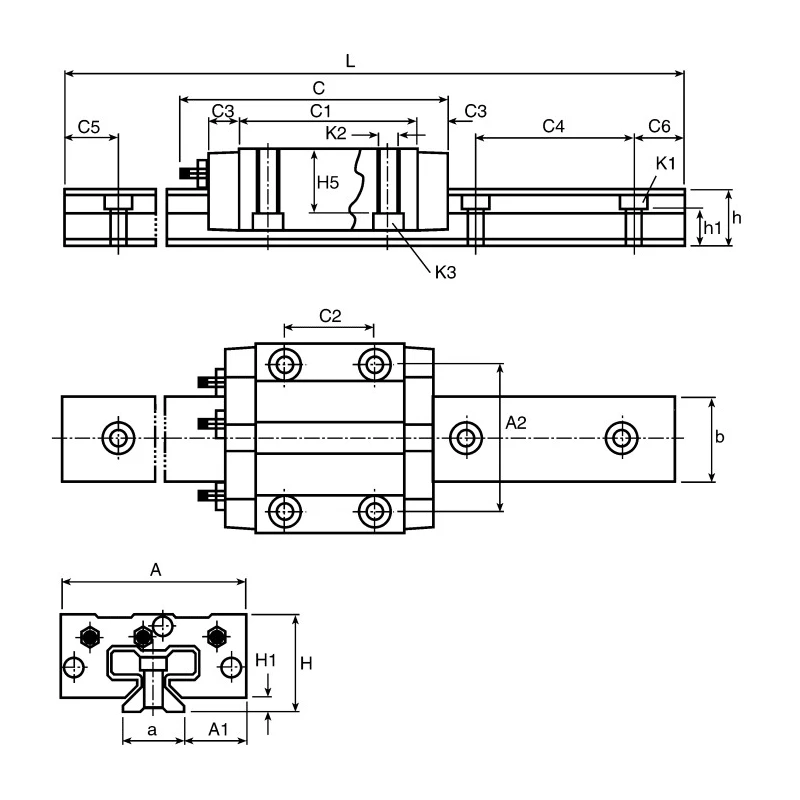

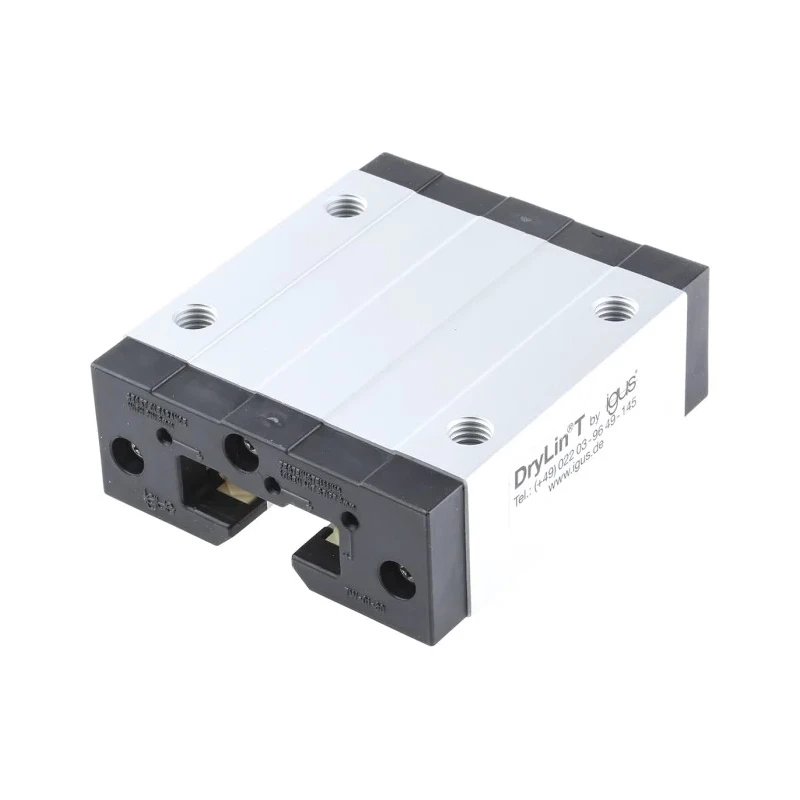

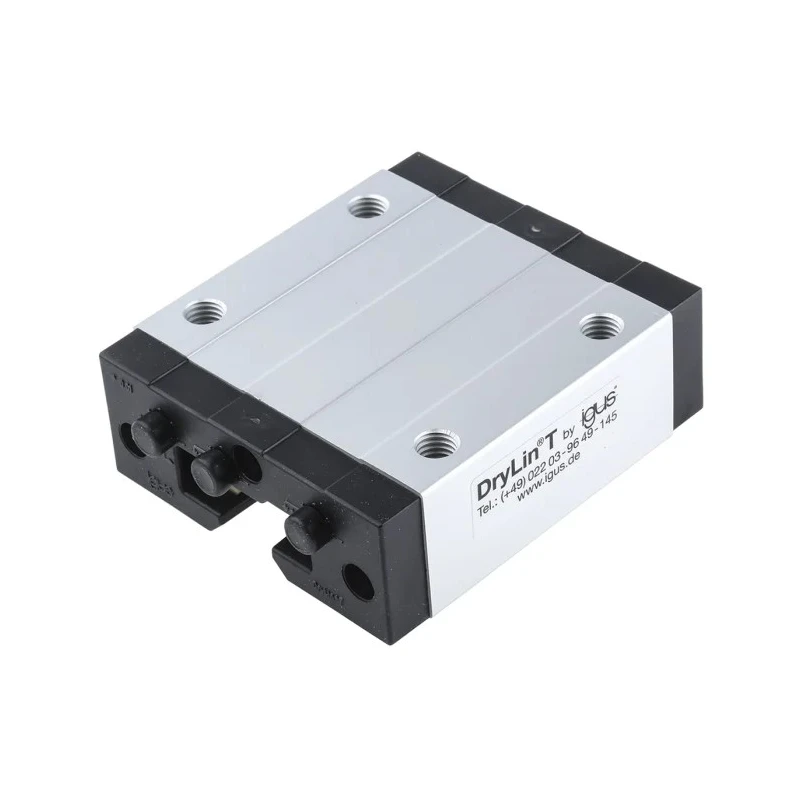

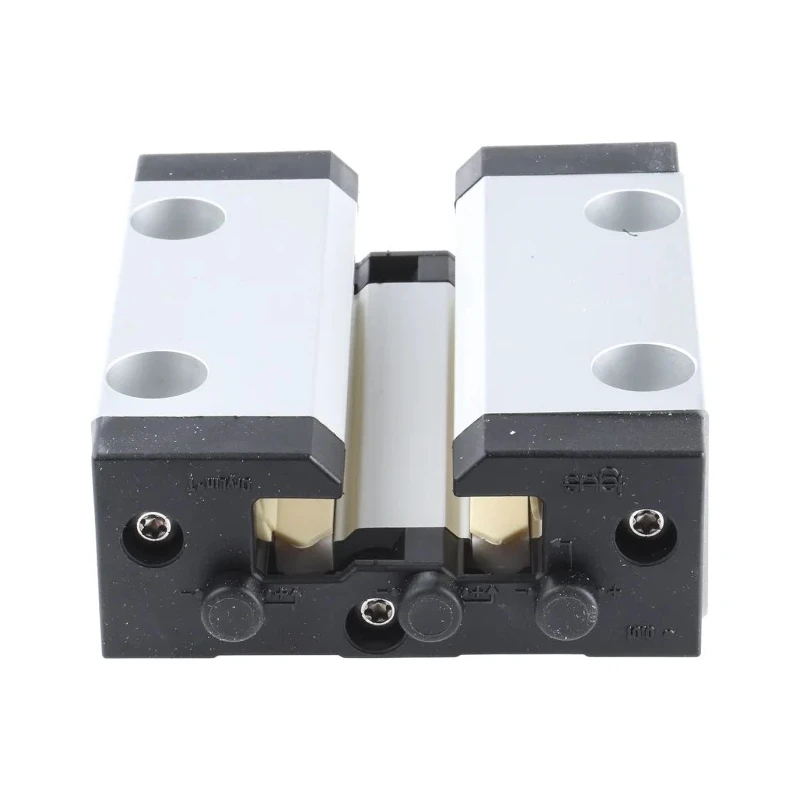

Igus Linear Guide Carriage drylin T Series 103mm Length 90mm Width Aluminium TW-01-30
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Igus |
| Model | TW-01-30 |
| Series | drylin T |
| Static Load Rating | 14kN |
| Carriage Length | 103mm |
| Carriage Width | 90mm |
| Carriage Type | Linear |
| Carriage Material | Aluminium |
Key Features
- Static load rating of 14 kN supports heavy load applications.
- Aluminium carriage material reduces system mass for enhanced dynamic response.
- Complies with ISO Class 3, SEMI E78-0998 Level 1, and DIN EN ISO 14644-1 standards for cleanroom suitability.
- Rectangular 90mm width footprint ensures stable platform mounting.
- Designed specifically for automation and precision equipment in controlled environments.
- Ideal for semiconductor and cleanroom applications requiring low particulate generation.
- Facilitates smooth linear travel for pick-and-place equipment and inspection systems.
Product Description
Igus TW-01-30 Linear Guide Carriage drylin T Series is engineered for precision linear motion applications requiring cleanliness and high load capacity. This aluminium carriage offers a compact rolling solution with a 103mm length and 90mm width footprint, ensuring stable platform mounting and smooth linear travel in automation systems.
The carriage supports a static load rating of 14 kN, capable of sustaining substantial loads without permanent deformation. Its aluminium construction minimizes system mass, improving dynamic response and reducing thermal gradients to maintain positional stability. The product complies with strict cleanroom standards including ISO Class 3, SEMI E78-0998 Level 1, and DIN EN ISO 14644-1, making it suitable for sensitive production environments such as semiconductor manufacturing.
This linear guide carriage is ideal for integration into linear motion assemblies, pick-and-place equipment, wafer handling, automated inspection systems, and precision transfer modules. Its rectangular platform design enables even load distribution and secure bolted attachments.
Material selection ensures good thermal conductivity and low mass, critical for maintaining tight tolerances under moderate temperature variation in precision manufacturing settings.
The carriage is sold separately from rails, enabling flexible system configuration. Its reliability and compliance with cleanliness standards make it a preferred choice for demanding industrial, laboratory, and semiconductor cleanroom applications.
Static load rating of 14 kN supports heavy duty use. Aluminium body offers light weight and thermal stability. Complies with multiple cleanroom certifications ensuring sterile operation. Compact design with 103mm length and 90mm width for stable mounting.
Suitable for precision automation, wafer handling, and inspection equipment. Facilitates smooth linear motion with minimal particle generation. Robust construction designed for demanding industrial environments. Explore our Industrial Tools category for more reliable linear motion components from top brands like Igus.
Explore more products in our Linear Guide Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The static load rating of this model is 14 kN, allowing it to support heavy load applications without permanent deformation.
The carriage has a length of 103mm and a width of 90mm, providing a stable platform for mounting.
This model is constructed from aluminium, which helps reduce system mass and improve dynamic response.
It complies with ISO Class 3, SEMI E78-0998 Level 1, and DIN EN ISO 14644-1 standards, making it suitable for cleanroom applications.
This linear guide carriage is ideal for automation and precision equipment, particularly in semiconductor and cleanroom applications.
The aluminium construction minimizes system mass, improving dynamic response and reducing thermal gradients for positional stability.
It is a linear carriage designed for smooth linear travel in various applications, including pick-and-place and inspection systems.
No, the carriage is sold separately from rails, allowing for flexible system configuration based on specific requirements.
It features a rectangular footprint of 90mm width, ensuring stable mounting and even load distribution.
The country of origin for this model is Germany.
Low particulate generation is critical for maintaining cleanliness in sensitive production environments, such as semiconductor manufacturing.
The compact design enhances stability during operation and allows for integration into various linear motion assemblies.
