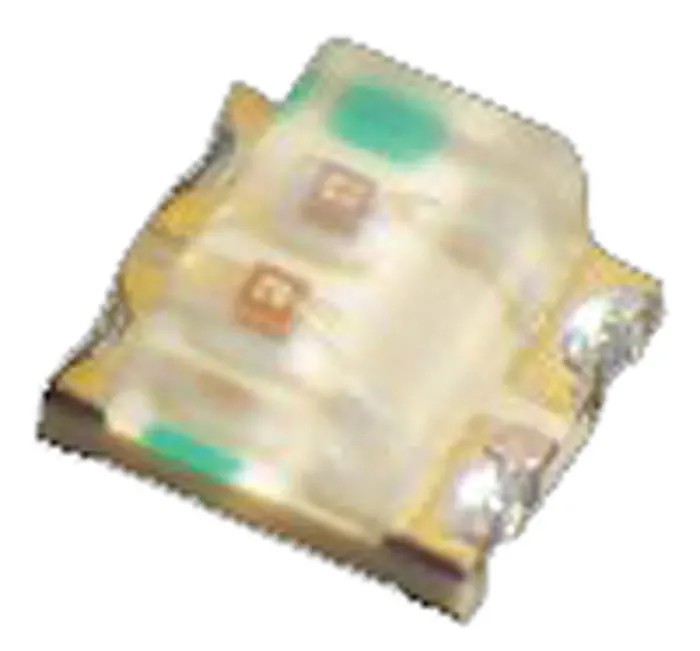

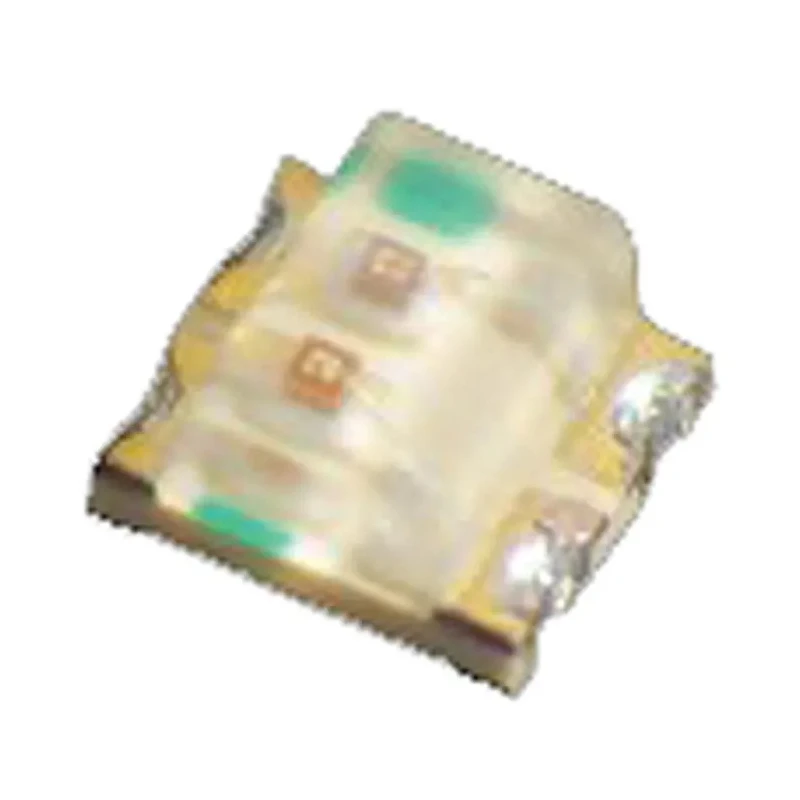

Kingbright 2.5 V Red, Green 1616 Surface Mount Multi-Colour LED KPTB-1615SURKCGKC

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Red, Green 1616 Surface Mount Multi-Colour LED KPTB-1615SURKCGKC

Name: Kingbright 2.5 V Red, Green 1616 Surface Mount Multi-Colour LED KPTB-1615SURKCGKC
Brand: Kingbright
SKU: 382298
Price: 0.23 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	3.2 x 2.4 mm
Model	KPTB-1615SURKCGKC
Packaging	Tape & Reel
Mount Type	Surface
Series	Multi-Colour LED
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	120 °
Package Type	1616
Standards/Approvals	RoHS
LED Colour	Red, Green
Dominant Wavelength	570, 630nm
Forward Voltage	2.5V
Number of Pins	4
LED Luminosity	50 mcd, 200 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	1.6 x 1.5 x 0.7 mm
Lens Shape	Rectangular

Key Features

This multi-colour LED package includes two LEDs emitting red and green colors effectively.
It operates with a maximum forward current of 30 mA and a forward voltage of 2.5 V.
The LED has a compact 1616 surface mount package with 4 pins for surface mounting.
The lens dimensions measure 1.6 x 1.5 x 0.7 mm with a rectangular clear lens finish.
Viewing angle is wide at 120 degrees, suitable for indicator and backlighting applications.
The LED luminosity is rated at 50 mcd for red and 200 mcd for green light emissions.
It complies with RoHS standards assuring environmentally safe materials.
The compact size and multi-colour feature make it ideal for electronic displays and indicators.

Product Description

Kingbright KPTB-1615SURKCGKC is a multi-colour LED incorporating red and green LEDs in a standard 1616 surface mount package, operating at 2.5 V. This device is designed for high efficiency and low power consumption in indicators, backlighting, and display applications.

The LED features a 1616 package type with a rectangular clear lens offering a viewing angle of 120 degrees for bright and visible light emission. It supports a maximum forward current of 30 mA and a power dissipation up to 75 mW, ensuring reliable operation across various industrial electronic equipment.

With 4 pins for secure surface mounting, it offers ease of PCB assembly and high-density mounting capability. The lens dimensions of 1.6 x 1.5 x 0.7 mm contribute to the compact form factor, perfectly suited for modern miniature electronic circuits.

This LED produces red light at a dominant wavelength of 630 nm with approximately 50 millicandela brightness and green light at 570 nm with up to 200 millicandela brightness, allowing for clear visual signals across different illumination conditions.

RoHS compliance guarantees the product meets international environmental standards, making it suitable for use in industrial, commercial, and consumer electronic equipment. The component is manufactured in China and offered in tape and reel packaging optimized for automated mounting processes, improving production efficiency.

This multi-colour LED integrates two high-efficiency LEDs in a 1616 compact package. Low power consumption and steady luminosity make it ideal for indicators. Surface mount type with 4 pins ensures easy PCB integration. Rectangular clear lens with a wide 120-degree viewing angle enhances visibility.

Compliant with RoHS environmental standards. Dominant wavelength emissions of 570 nm (green) and 630 nm (red). Compact lens dimensions and package size enable space-saving designs. Available in tape & reel packaging suitable for automatic machine insertion.

Ideal for use in electronics manufacturing, automotive dashboards, industrial controls, and signaling devices. Explore related Kingbright LEDs and electronic components categories at EnvMart for more solutions.
