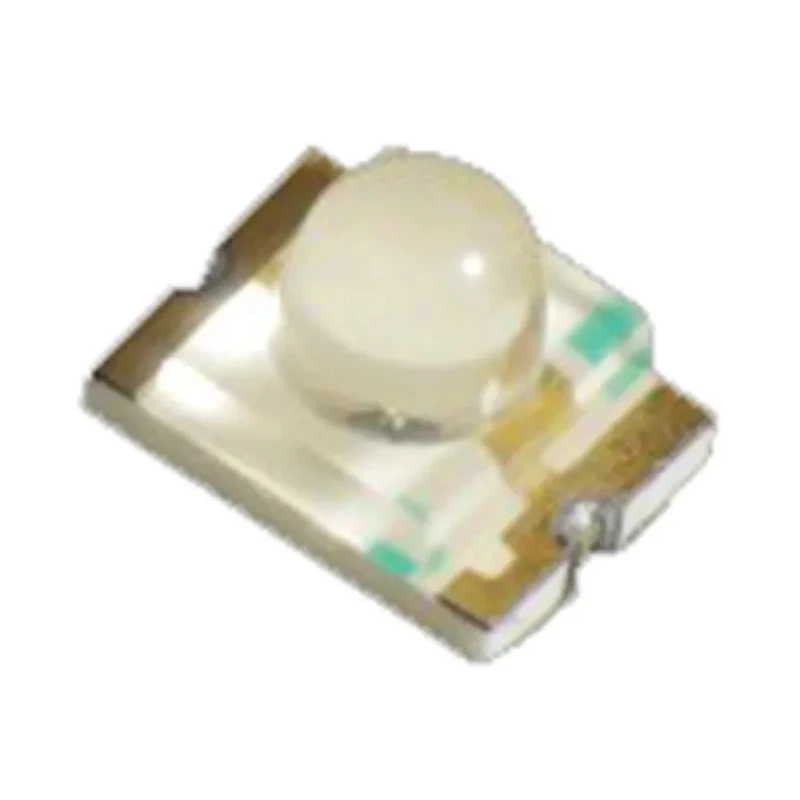

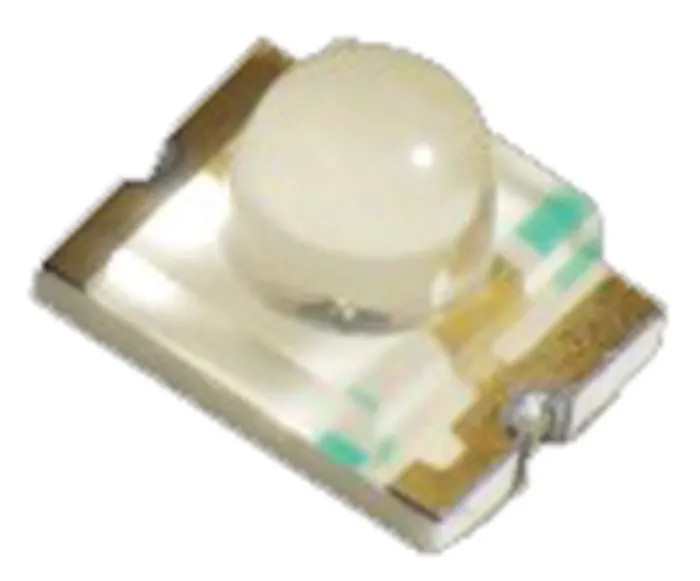

Kingbright 4 V Blue LED 3224 Surface Mount 150mA 120mW Dome Lens KPD-3224QBC-D

Name: Kingbright 4 V Blue LED 3224 Surface Mount 150mA 120mW Dome Lens KPD-3224QBC-D
Brand: Kingbright
SKU: 382291
Price: 0.3 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	3.2 x 2.4 mm
Model	KPD-3224QBC-D
Packaging	Tape & Reel
Mount Type	Surface
Series	KPD-3224
Maximum forward current	150mA
Viewing angle	20 °
Package Type	3224
Standards/Approvals	RoHS
LED Colour	Blue
Dominant Wavelength	465nm
Forward Voltage	4V
Number of Pins	2
LED Luminosity	800 mcd
Maximum Power Dissipation	120mW
Lens Dimensions	3.2 x 2.4 x 2.4 mm
Lens Shape	Dome

Key Features

Emits bright blue light at a dominant wavelength of 465nm.
Standard 3224 surface mount package measuring 3.2 x 2.4 x 2.4 mm.
Equipped with a clear dome-shaped lens for focused illumination.
Maximum forward current rating of 150mA for reliable operation.
Forward voltage of 4 volts ensuring efficient energy use.
Designed for surface mounting with a 2-pin configuration.
Offers a narrow viewing angle of 20 degrees for directional light application.
High luminance of 800 millicandela providing excellent visibility.

Product Description

Kingbright KPD-3224QBC-D is a blue LED housed in a standard 3224 surface mount package, specifically designed for electronic components and optoelectronics applications. Operating at a forward voltage of 4 V and with a maximum power dissipation of 120 mW, this LED provides efficient and reliable performance for various lighting needs. The dome lens shape enhances light directionality, making it ideal for indicator lights and backlighting in industrial, commercial, and consumer electronics.

This LED features a narrow 20° viewing angle and an impressive luminance of 800 mcd at a dominant wavelength of 465 nm, producing a bright and concentrated blue light output. It supports a maximum forward current of 150 mA, ensuring long-lasting operation without overheating. The device is RoHS compliant, affirming its environmentally friendly manufacturing standards.

The small form factor of 3.2 x 2.4 x 2.4 mm facilitates easy surface mounting on printed circuit boards, making it suitable for automated production and high-volume assemblies. The 2-pin configuration simplifies connectivity while maintaining compactness.

Applications for this LED include status indicators, display backlighting, signalling devices, and other electronic illumination applications requiring vibrant blue light. Its durable construction and certified standards make it reliable for industrial and manufacturing environments as well.

Emits bright blue light with a dome-shaped clear lens for focused illumination. Compact 3224 (3.2 x 2.4 x 2.4 mm) surface mount package suitable for automated assembly. Maximum forward current of 150 mA and power dissipation of 120 mW ensures reliable performance.

Narrow 20° viewing angle provides precise light directionality. High luminance level of 800 millicandela at 465 nm wavelength. RoHS compliant for environmentally safe usage. Ideal for backlighting, indicators, and electronic signaling applications.

Designed for use in industrial, commercial, and electronic manufacturing sectors. Explore more from the Kingbright LED range and other precision electronic components at EnvMart for reliable performance and quality.
