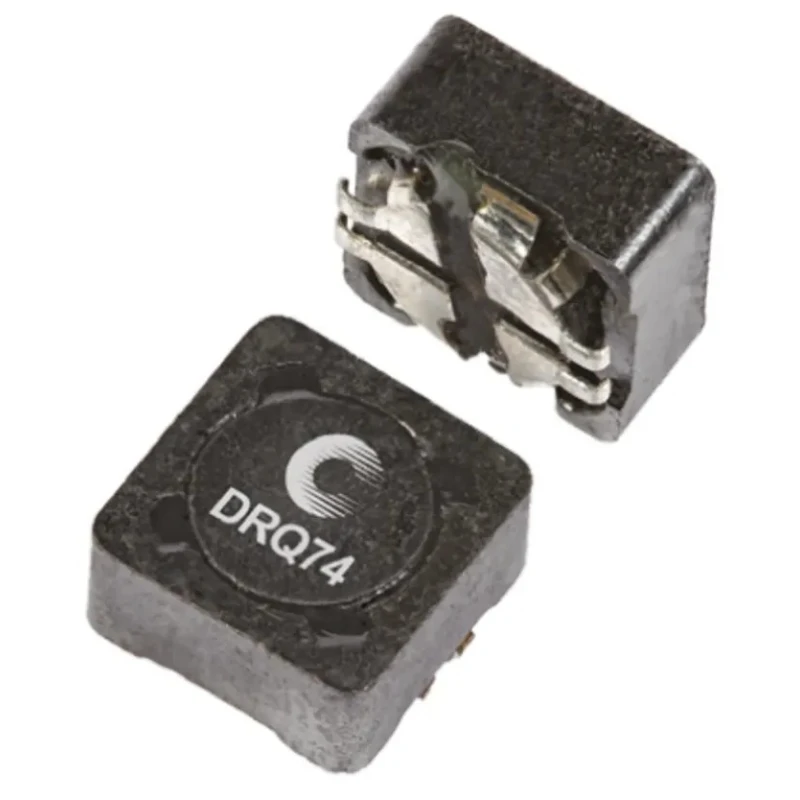

Eaton Wirewound Shielded Surface Mount Inductor 22 μH ±20 % 2.13 A Idc Ferrite Core, 0704 Case DRQ74-220-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Height | 4.45mm |
| Length | 7.6mm |
| Model | DRQ74-220-R |
| Depth | 7.6mm |
| Packaging | Reel |
| Series | DRQ |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0704 |
| Maximum DC Current | 2.13A |
| Pin Count | 4 |
| Maximum DC Resistance | 371mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core for enhanced magnetic performance.
- Features a 0704 surface mount package case suitable for compact PCB designs.
- Maximum operating temperature up to 125°C for high reliability.
- Inductance tolerance of ±20 % ensures consistent electrical characteristics.
- Shielded design minimizes electromagnetic interference in sensitive circuits.
- Maximum DC resistance of 371 mΩ to reduce power loss during operation.
- Four-pin configuration enabling versatile mounting and connection options.
- Wirewound construction supports stable inductance and durability.
Product Description
Eaton DRQ74-220-R wirewound shielded Surface Mount Inductor provides a 22 μH inductance with ±20 % tolerance and supports a maximum DC current of 2.13 A. Housed in a compact 0704 case size, this inductor features a ferrite core construction which enhances magnetic performance and maintains signal integrity in demanding electronic applications.
The shielded design reduces electromagnetic interference, making it suitable for use in sensitive power circuits such as DC-DC converters, VRM inductors for CPUs and DDR power supplies, and input/output filter chokes. Operating temperature ranges from -40°C to 125°C ensure dependable performance under harsh environmental conditions.
This inductor has a maximum DC resistance of 371 mΩ, balancing efficiency and heat dissipation. It is designed with a four-pin surface mount termination style, enabling easy integration into automated PCB assembly processes. The wirewound construction contributes to structural strength and electrical stability, ideal for power applications requiring reliable inductance specifications.
The DRQ series allows for use as either a single inductor or a coupled inductor with a 1:1 turns ratio, providing flexibility in circuit design for SEPIC, flyback, buck, and boost configurations. This component complies with RoHS standards, ensuring it meets environmental and safety regulations.
Constructed with a ferrite core for enhanced magnetic performance. Features a 0704 surface mount package case for compact PCB footprint. Maximum operating temperature up to 125°C. Inductance tolerance of ±20 % for consistent circuit behavior.
Shielded design reduces electromagnetic interference. Maximum DC resistance of 371 mΩ minimizes power loss. Four-pin surface mount termination for flexible mounting. Wirewound construction provides stability and durability.
RoHS compliant for industry environmental standards.
This Eaton DRQ74-220-R inductor is ideal for industrial, electronic manufacturing, telecommunications, and computing applications requiring reliable, surface mount power inductors with shielded construction. Explore the Electronics Components section on EnvMart for additional inductors and electronic parts from Eaton and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an inductance of 22 μH with a tolerance of ±20 %.
The maximum DC current rating for this inductor is 2.13 A.
The dimensions of this unit are 7.6 mm in length, 7.6 mm in depth, and 4.45 mm in height.
It can operate at a maximum temperature of 125°C.
This inductor is constructed with a ferrite core, which enhances its magnetic performance.
The shielded design minimizes electromagnetic interference, making it suitable for sensitive circuits.
The maximum DC resistance is 371 mΩ, which helps reduce power loss during operation.
It features a four-pin surface mount termination style for versatile mounting options.
The maximum self-resonant frequency for this model is 100 kHz.
It is suitable for use in DC-DC converters, VRM inductors for CPUs, and input/output filter chokes.
Yes, this component complies with RoHS standards, ensuring it meets environmental and safety regulations.
This inductor is packaged on a reel, facilitating automated PCB assembly processes.
