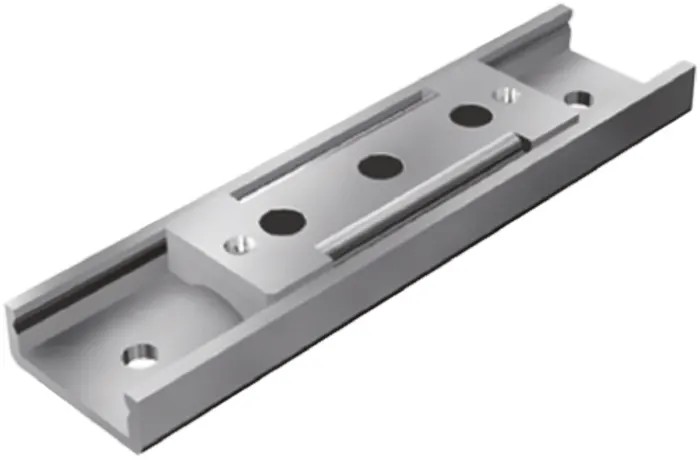

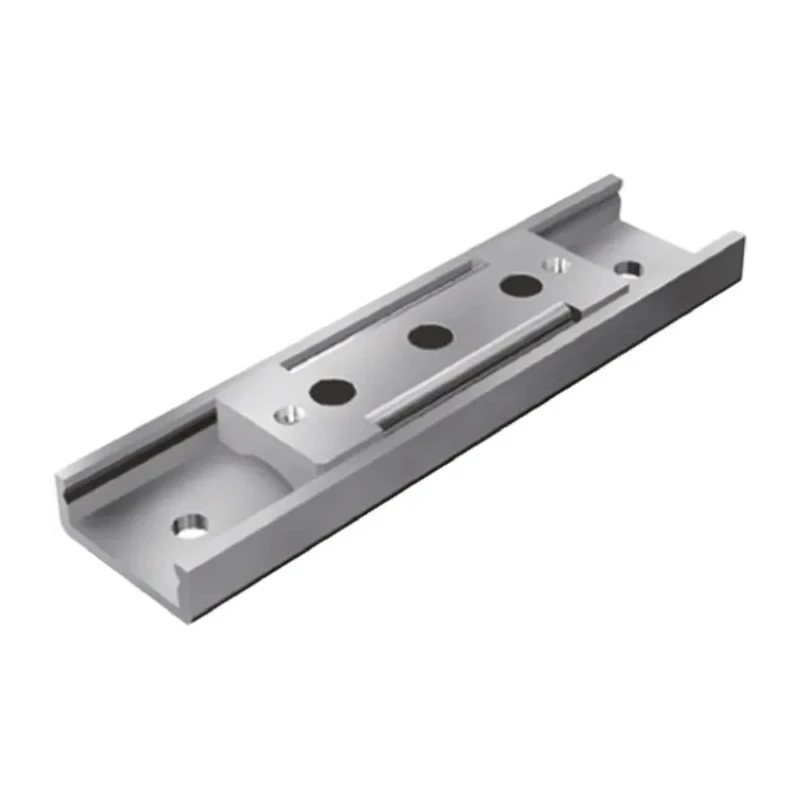

THK Precision Linear Slide Pack Linear Slides 22 mm Stroke Length, 80 mm Rail Length, 13 mm Carriage Width, ER513 ER513+80L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | THK |
| Model | ER513+80L |
| Series | ER513 |
| Stroke Length | 22mm |
| Static Load Rating | 72.5N |
| Dynamic Load Rating | 54.9N |
| Rail Length | 80mm |
| Carriage Length | 22mm |
| Carriage Width | 13mm |
Key Features
- Manufactured from heat-treated stainless steel for durability and corrosion resistance.
- Compact and lightweight design suitable for precision equipment.
- Comprises balls circulating in v-shaped grooves to ensure smooth linear motion.
- Dynamic load rating of 54.9 N and static load rating of 72.5 N for stable performance.
- Ideal for use in electronic equipment, medical devices, semiconductor manufacturing, and measurement instruments.
- Stroke length of 22 mm with an 80 mm rail length and 13 mm carriage width.
- Made in Japan, ensuring high manufacturing standards.
- Requires size 0 pan head screws for installation to prevent screw head fouling.
Product Description
THK ER513+80L Linear Slides are precision linear slide packs featuring a 22 mm stroke length and manufactured from heat-treated, ground stainless steel. These slide packs are designed for compactness and light weight, using precision ball circulation in v-shaped grooves within an inner block to enable smooth and accurate linear motion.
The ER Series Linear Slide Packs are extensively used in demanding industries including electronic equipment manufacturing, medical devices, semiconductor fabrication, measurement instruments, plotting machines, and photocopiers, where precise and stable linear movement is crucial.
The compact design offers high-speed and accurate linear response with sustained performance over extended use. The slides feature a dynamic load rating of 54.9 Newtons and a static load rating of 72.5 Newtons, supporting stability under operational loads.
Key dimensions include a stroke length of 22 mm, rail length of 80 mm, and carriage width of 13 mm, facilitating ease of integration into various assemblies. Installation requires pan head screws size 0 to avoid interference with the inner block.
Constructed from corrosion-resistant stainless steel, these slides ensure longevity and maintain precision in high-demand applications. Manufactured from heat-treated corrosion-resistant stainless steel. Precision ball circulation in v-shaped grooves for smooth motion.
Compact and lightweight design tailored for precision industries. Dynamic load rating of 54.9 N and static load rating of 72.5 N. Ideal for use in electronics, medical, semiconductor, and measurement sectors. Dimensions: 22 mm stroke length, 80 mm rail length, 13 mm carriage width.
Requires size 0 pan head screws for mounting.
These Linear Slides are produced in Japan, ensuring quality manufacturing standards suitable for industrial and laboratory precision applications. Explore a wide range of linear slide products and related mechanical machinery components at EnvMart for your automation and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 22 mm.
The dynamic load rating is 54.9 N, while the static load rating is 72.5 N.
It features an 80 mm rail length, a 13 mm carriage width, and a stroke length of 22 mm.
It is manufactured from heat-treated, ground stainless steel, providing corrosion resistance and durability.
This model is ideal for use in electronic equipment, medical devices, semiconductor manufacturing, and measurement instruments.
Installation requires size 0 pan head screws to prevent interference with the inner block.
This linear slide is manufactured in Japan, ensuring high manufacturing standards.
It comprises balls circulating in v-shaped grooves within an inner block, enabling smooth and accurate linear motion.
The specific weight of this model is not provided in the specifications.
The carriage length of the THK ER513+80L is 22 mm.
This model belongs to the ER513 series of linear slides.
These ratings indicate the maximum load the slide can handle dynamically and statically, ensuring stable performance during operation.
